Altelix NF162012VP - 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with Blank Aluminum Equipment Mounting Plate

  • Brand: Altelix
  • P\N: NF162012VP
(0)No Reviews yet

Availability: In Stock


Your Price: $499.99

Do you have questions?

Please contact our experts for assistance.

Description

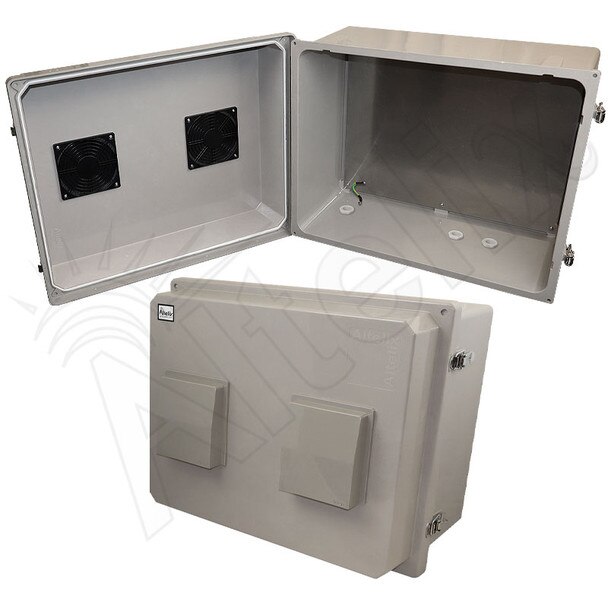

Altelix 16x20X12 Fiberglass Weatherproof Vented NEMA Enclosure with Blank Aluminum Equipment Mounting Plate (NF162012VP)

Vented Weatherproof Enclosure Provides Extreme Protection

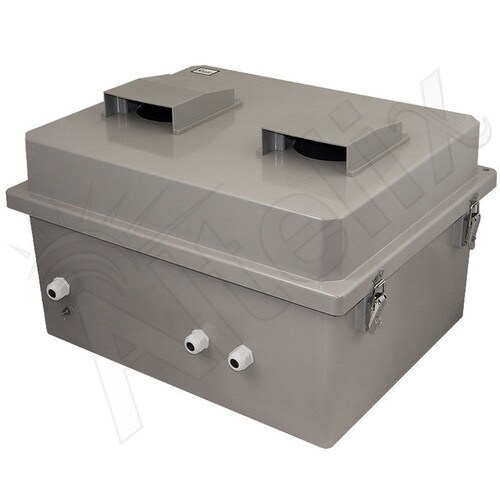

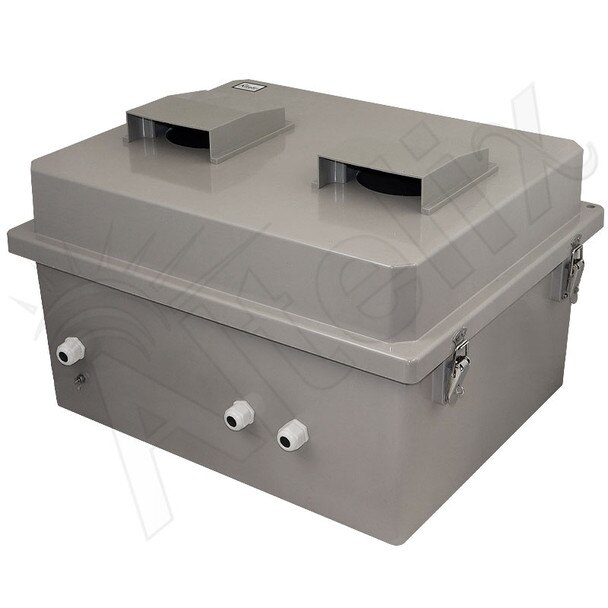

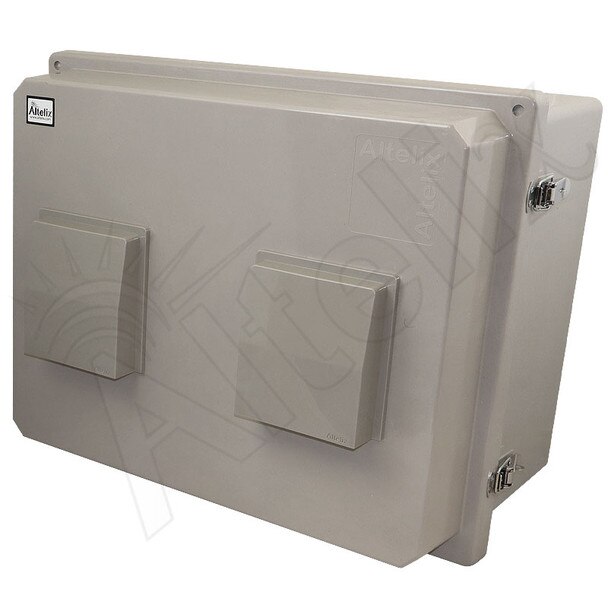

The Altelix NF162012V Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space
The NF162012V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012V can accommodate a wide range of equipment.

Also Available in 20”x16"x12” Configuration
This enclosure is also available in a 20"x16”x12” configuration. For more information see NF201612VP.

Aluminum Equipment Mounting Plate

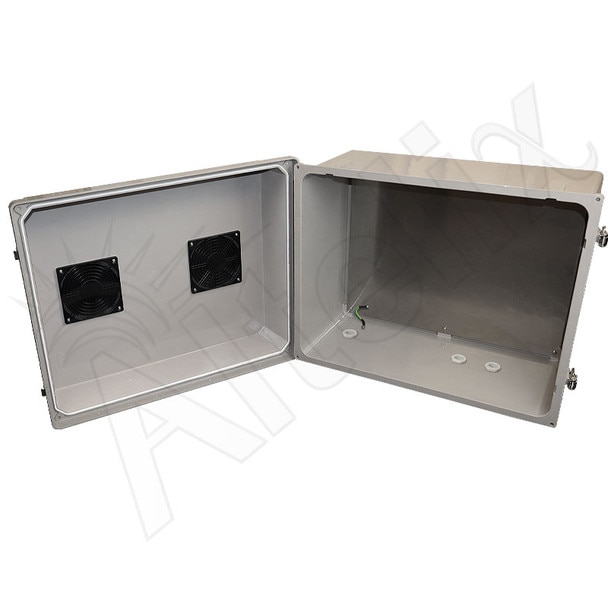

This enclosure features an easy to drill aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting

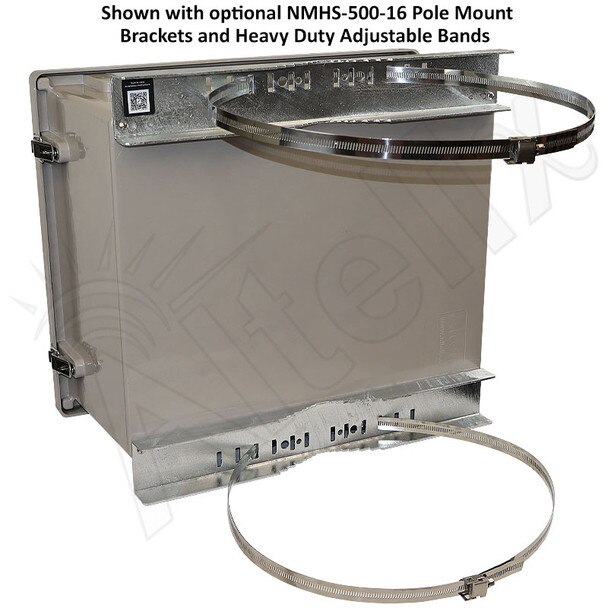

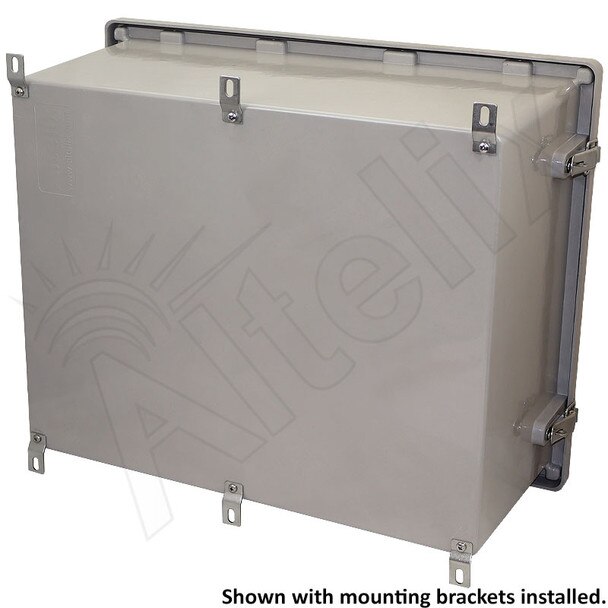

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

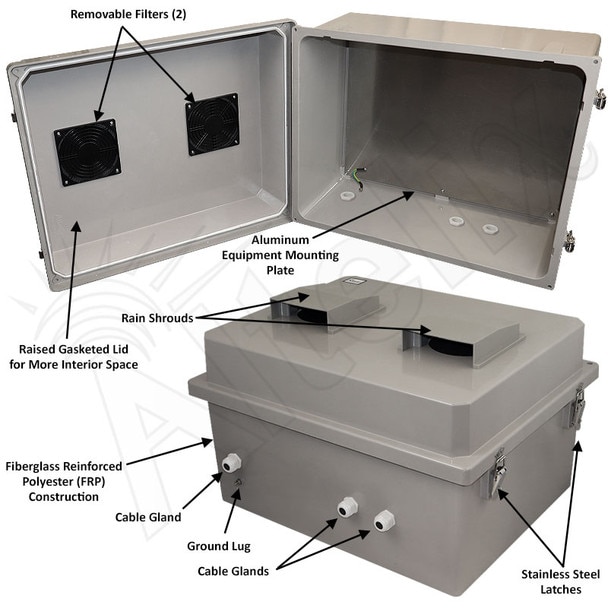

Features

Features

  • New 16x20x12 Size Ideal for Wider Equipment as well as 19" Wide Equipment Racks!
  • (2) 4" Vents with Rain Shields and Screens
  • Includes Easy to Drill Blank Aluminum Equipment Mounting Plate
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • NEMA Type 3R, 3RX / IP24 Rated
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available


Applications

  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • 19" Wide Equipment Racks
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure

Specifications

MaterialFiberglass Reinforced Polyester
ColorGray

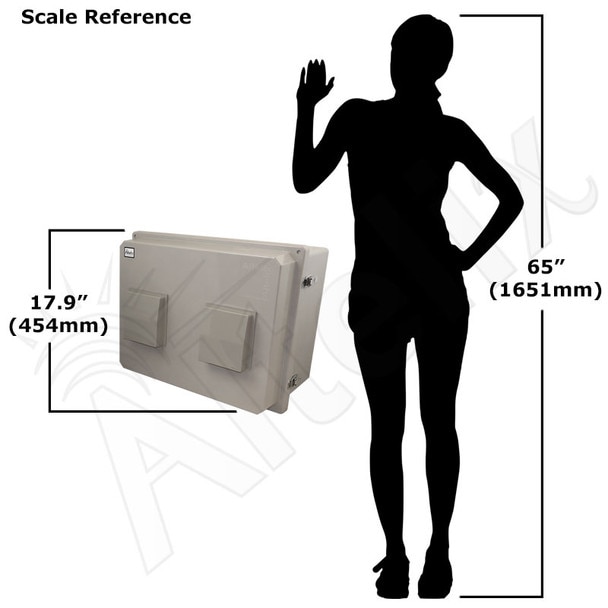

Outer Dimensions17.9 x 21.8 x 14.3 Inches
(454 x 553 x 363 mm)
Inner Dimensions*14.7 x 18.7 x 11.0 Inches
(374 x 475 x 279 mm)
Mounting Plate Material0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions18.7 x 14.8 in. (475 x 378 mm)
Weight19.1 lbs. (8.7 kg)
RatingsNEMA Type 3R, 3RX / IP24
Flame RatingUL94-5V
Industry CertificationsCE
*Interior dimensions represent maximum space available for equipment.
