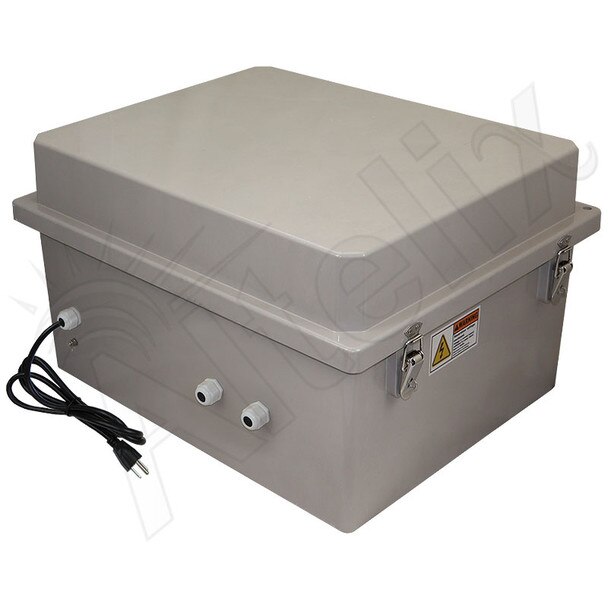

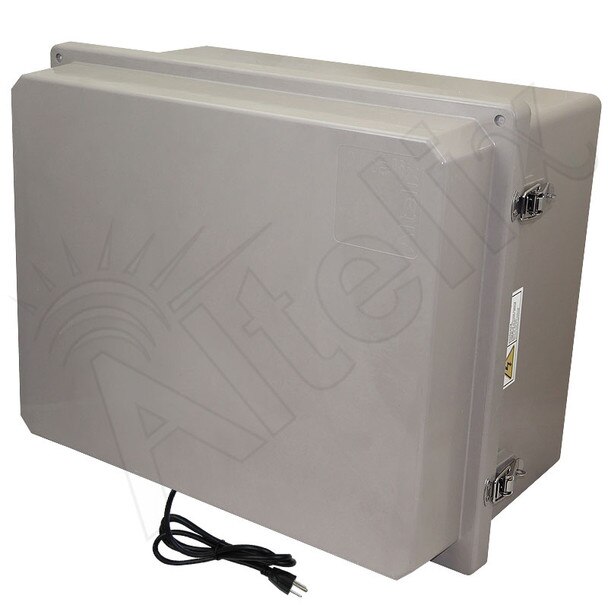

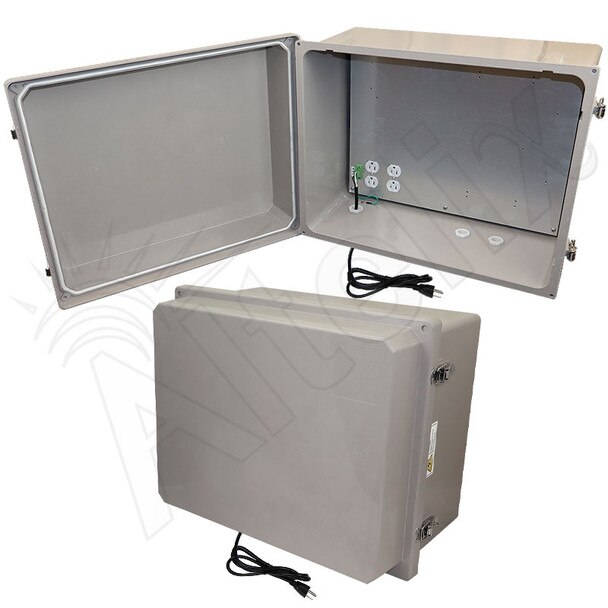

Altelix NF162012HA1C - 16x20x12 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater & 120 VAC Outlets and Power Cord

Altelix NF162012HA1C 16x20x12 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater, 120 VAC Outlets & Power Cord

Best For

The Altelix NF162012HA1C is a heated NEMA 4X fiberglass enclosure with plug and play power, ideal for rapid deployment in cold environments since no wiring is required.

Why Choose the NF162012HA1C?

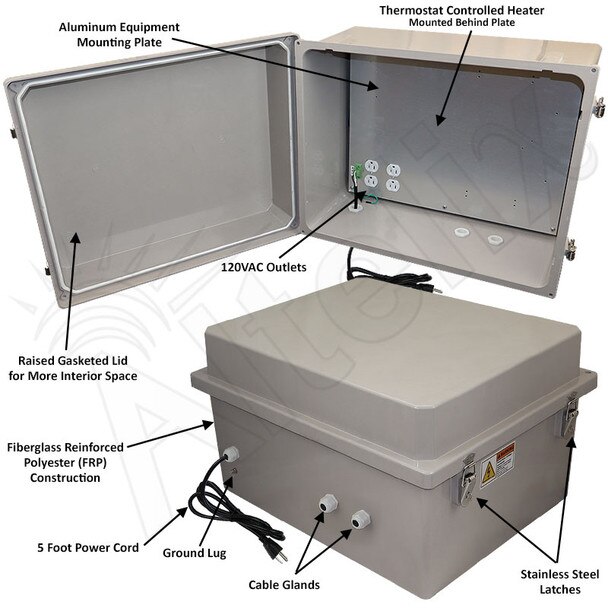

Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment, and the finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

The thermostat controlled 200W heating system turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally, which leaves the interior space and power outlets available for your equipment. Get your project up and running quickly and transition to hard-wired later if needed: the power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

The enclosure is molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment, and the installer can drill and modify it as needed. Improved stainless steel hinges with high quality 316 steel hinge pins provide lasting durability in even the harshest coastal conditions, and the gasketed door includes stainless steel quick release latches with padlock hasps.

Key Benefits

• No wiring required: mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet.
• Four pre-wired 120VAC power outlets for your equipment.
• Thermostat controlled 200W heater turns on at 43°F (6°C) and off at 59°F (15°C).
• Finished aluminum equipment mounting plate that the installer can drill.
• Removable power cord and quick-connect terminal strip for later hard-wiring.
• Extra deep lid, over 3 inches deep, for a wide range of equipment.

Who Should Buy the NF162012HA1C?

This enclosure is ideal for anyone deploying powered equipment quickly in a cold environment without hard-wiring up front.

200W Thermostat Controlled Heater

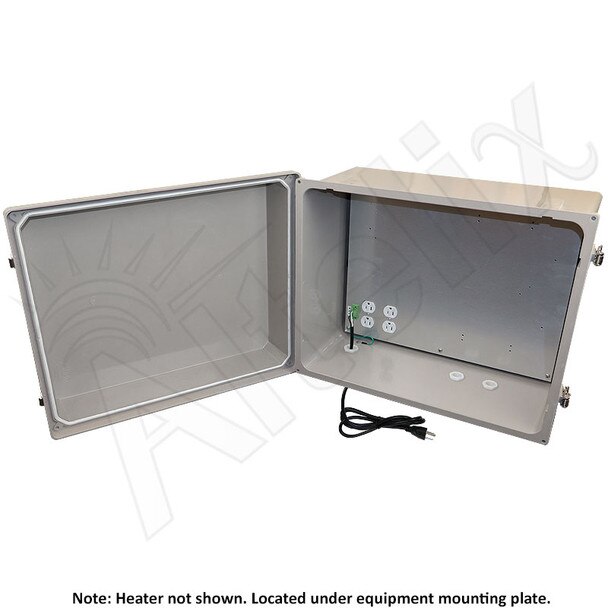

This enclosure is equipped for harsh weather and cold environments. The thermostat controlled 200W heating system turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally, which leaves the interior space and power outlets available for your equipment.

Cable Glands

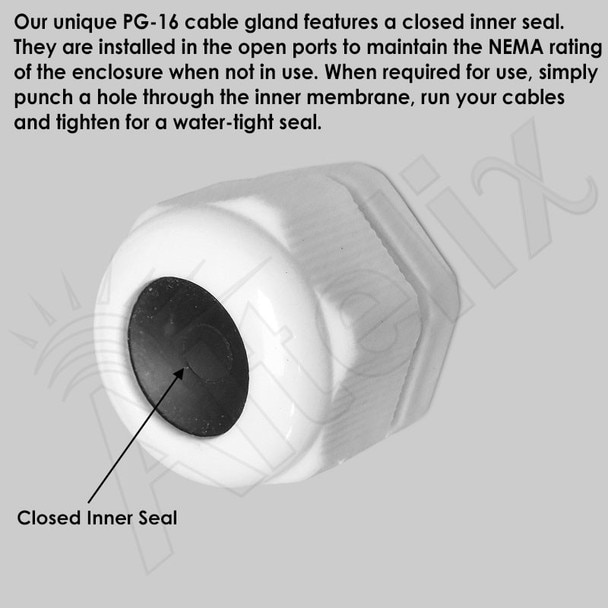

The enclosure features unique PG-16 cable glands with a closed inner seal, installed in the open ports to maintain the NEMA rating when not in use. When required, punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Also Available in 20"x16"x12"

This enclosure is also available in a 20"x16"x12" configuration.

Mounting

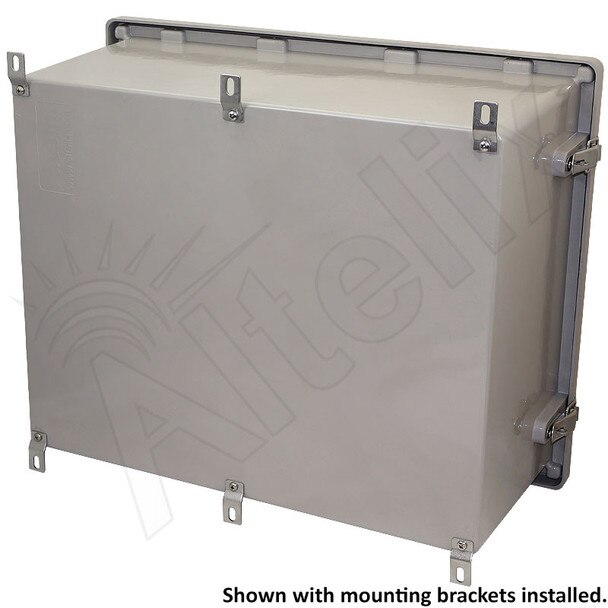

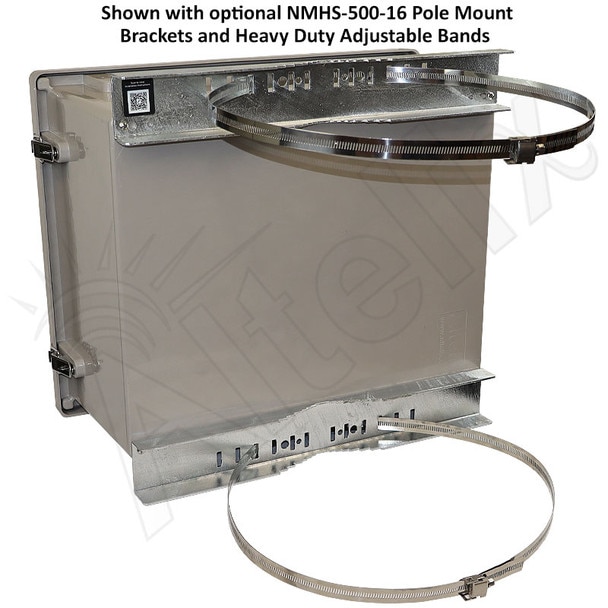

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization

Altelix offers custom enclosures for WiFi equipment, DIN mount industrial controls, telephone call boxes, IP phones, security and safety, building automation and more. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans and heaters, plus full customization, engineering and on-site CNC machining, all with quick turnaround time. Please contact us with your unique requirements.
