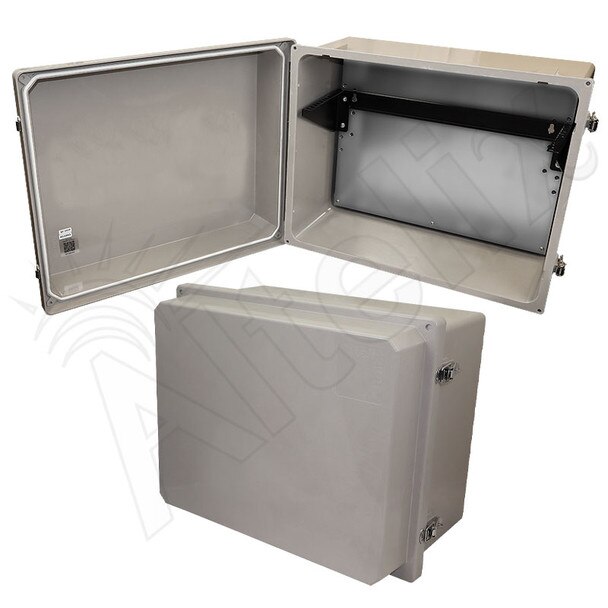

Altelix NF162012P-RV4U - 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with 19" Wide 4U Vertical Rack Frame

Altelix NF162012P-RV4U 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with 19" Wide 4U Vertical Rack Frame

Best For

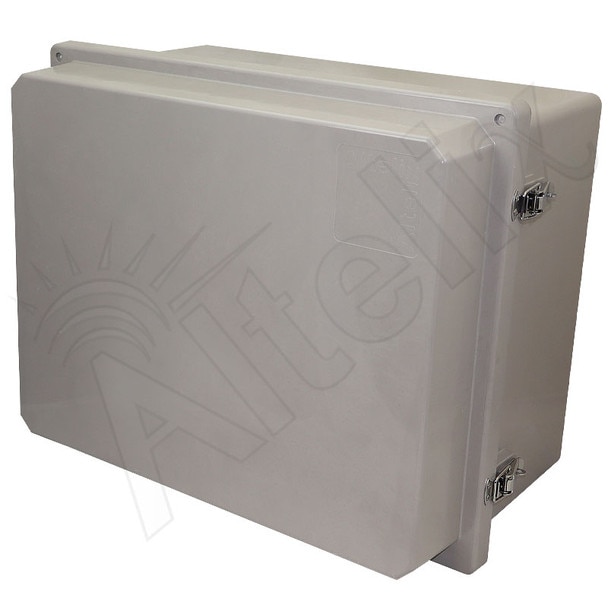

The Altelix NF162012P-RV4U is a 16x20x12 NEMA 4X fiberglass enclosure with a standard 19" 4U vertical equipment rack, designed for network switches, rack mount audio/video equipment and most other rack mountable equipment.

Why Choose the NF162012P-RV4U?

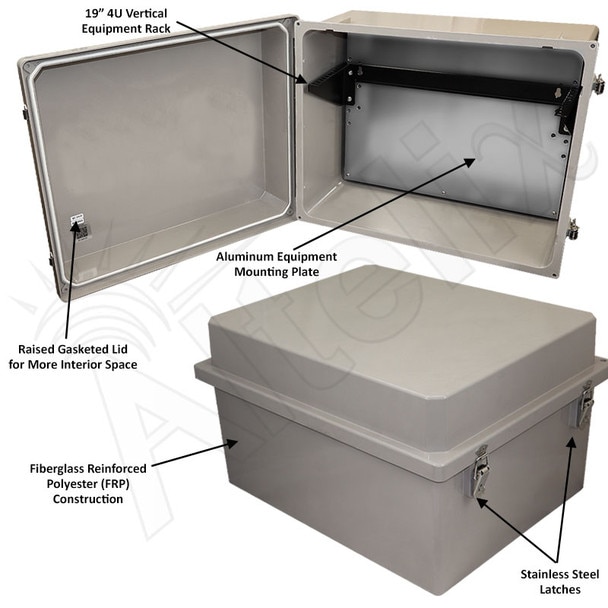

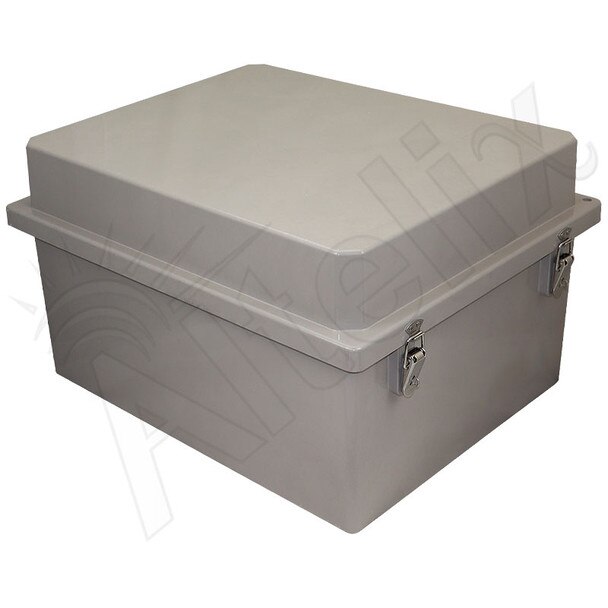

The NF162012P series enclosures are molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The JIC style enclosure is dent-proof, corrosion resistant and UV stable, and the FRP material is non-conductive and RF transparent. Improved stainless steel hinges with high quality 316 steel hinge pins provide lasting durability in even the harshest coastal conditions, and the gasketed door includes stainless steel quick release latches with padlock hasps.

Key Benefits

• Standard 19" 4U vertical equipment rack for a wide range of rack mountable equipment.
• Rack frame mounts to a 2.0mm thick aluminum plate that the installer can drill and modify; four mounting positions fit a range of equipment sizes.
• Dent-proof, corrosion resistant and UV stable FRP, non-conductive and RF transparent.
• Gasketed door with stainless steel quick release latches and padlock hasps.
• Stainless steel wall mounting brackets included.

Who Should Buy the NF162012P-RV4U?

This enclosure suits anyone who needs to house rack mountable equipment such as network switches or audio/video equipment in a weatherproof enclosure.

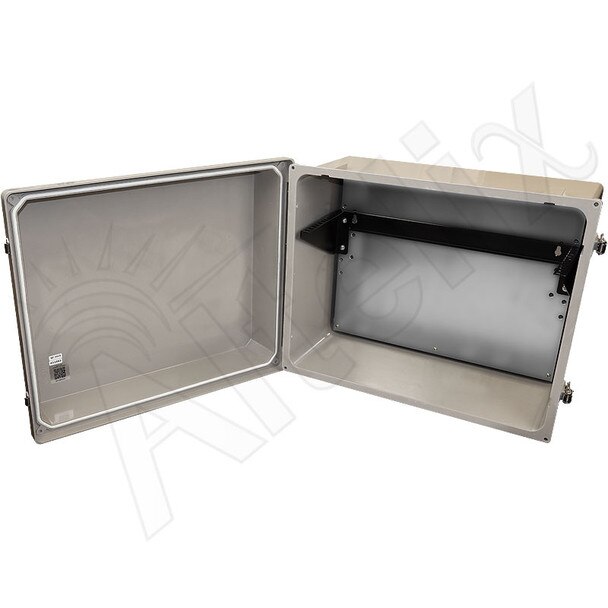

Internal 4U 19" Vertical Equipment Rack

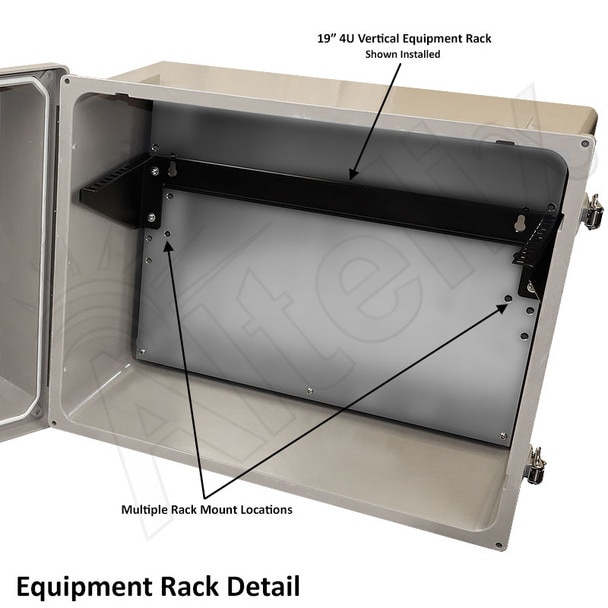

The standard 19" 4U vertical equipment rack accommodates a wide range of equipment. The rack frame mounts to a 2.0mm thick aluminum plate, which can also be drilled and modified by the installer to unique site requirements. Four mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 4U rack is 12.3" (314mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Product Note: This enclosure is also available with a heavy duty 4U vertical rack, ideal for heavier equipment such as rack mount UPS systems and audio power amplifiers. For more information see NF162012P-RV4U-H.

Mounting

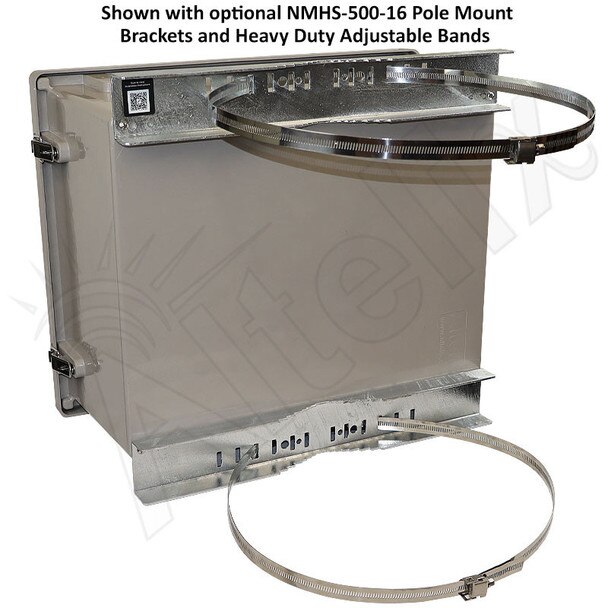

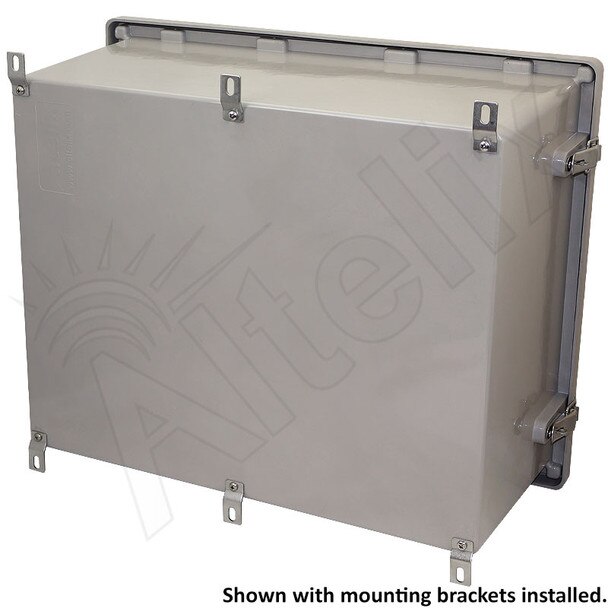

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization

Altelix offers custom enclosures for WiFi equipment, DIN mount industrial controls, telephone call boxes, IP phones, security and safety, building automation and more. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans and heaters, plus full customization, engineering and on-site CNC machining, all with quick turnaround time. Please contact us with your unique requirements.
