Altelix NF162012P-R6U - 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with 19" Wide 6U Rack Frame

Brand: Altelix
P\N: NF162012P-R6U

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

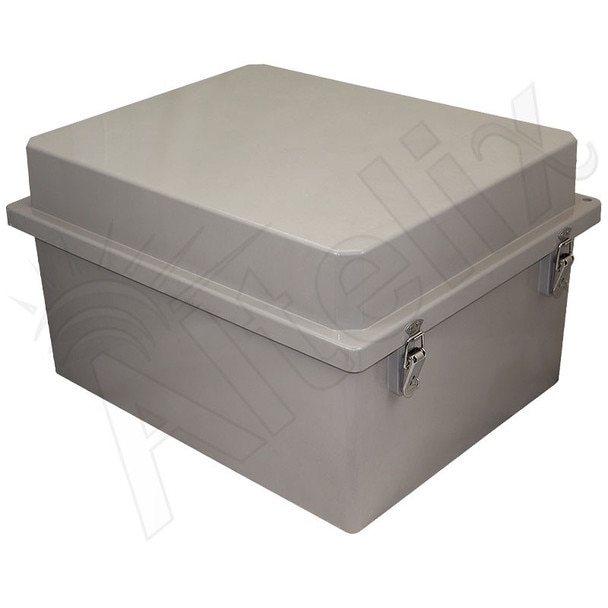

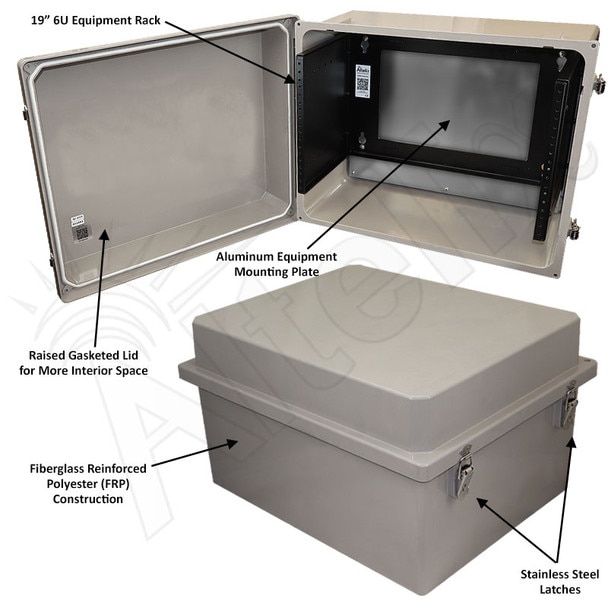

Altelix 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with 19" Wide 6U Rack Frame

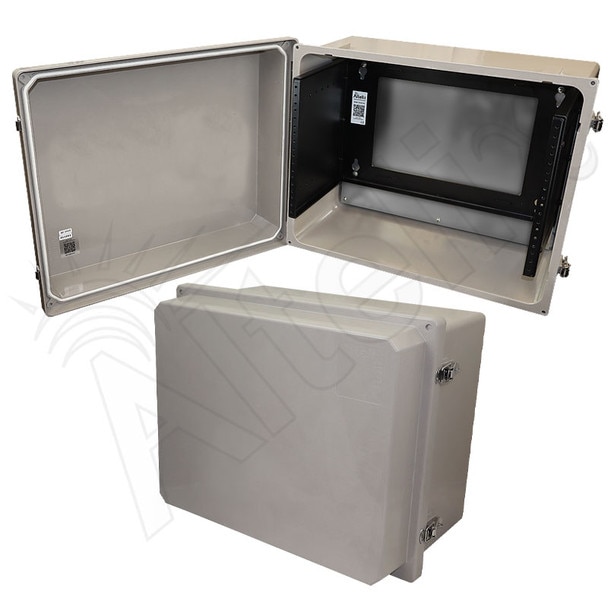

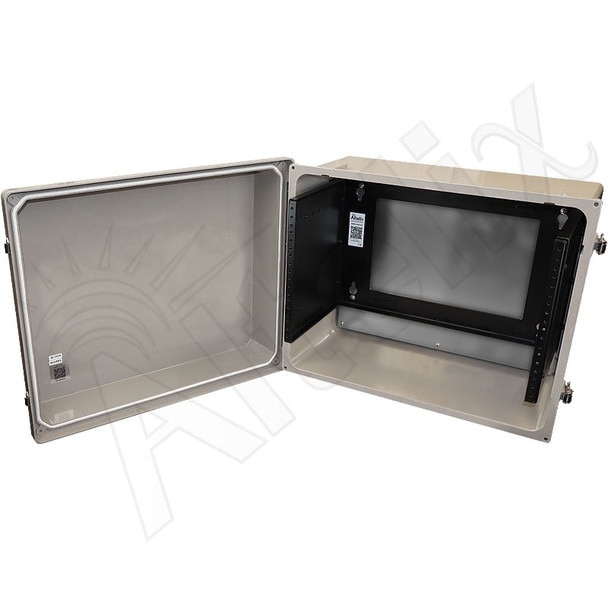

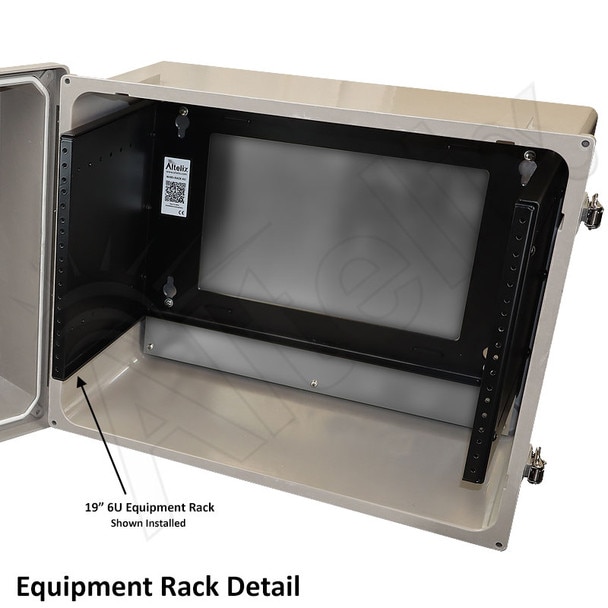

Internal 6U 19" Equipment Rack
The NF162012P-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: The max. depth of the 6U rack is 9.5" (241mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

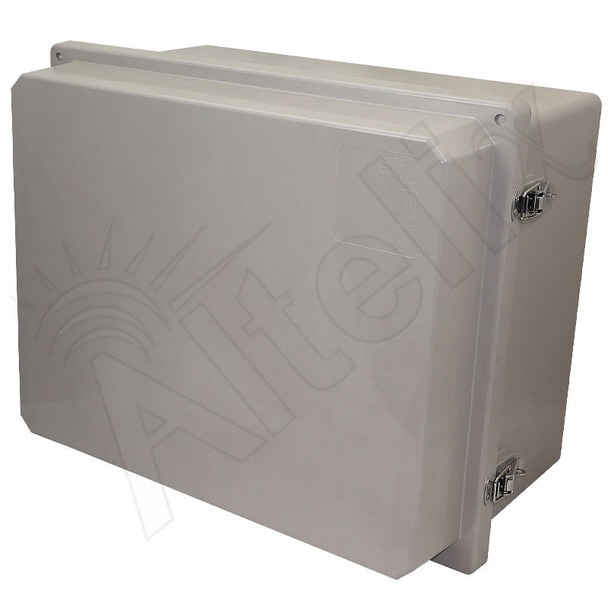

Extreme Protection Built to Last
The Altelix NF162012P Series enclosures are molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting

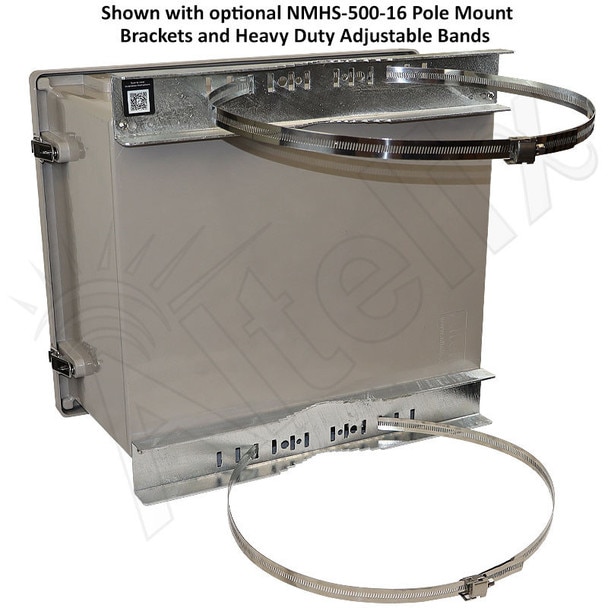

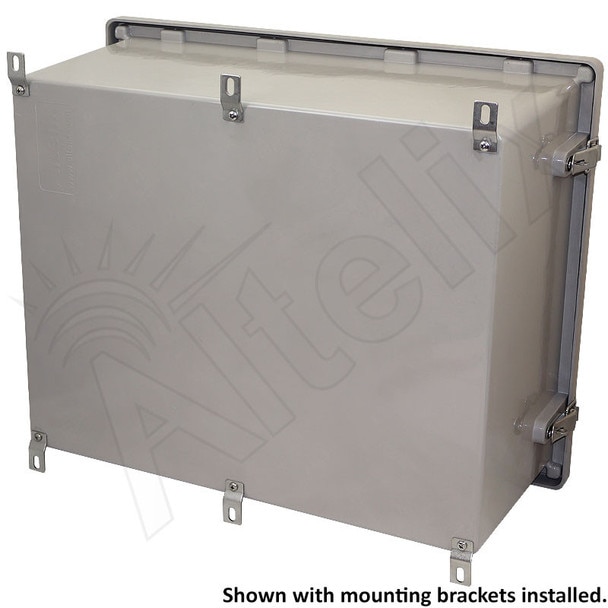

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

Features

Features

New 16x20x12 Size!
Includes 19" 6U Rack Frame with Blank Aluminum Equipment Mounting Plate
Water Resistant JIC Enclosure Design with Gasketed Lid
Extra Deep Extended Lid for Increased Equipment Clearance
Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
Stainless Steel Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
Includes Stainless Steel Mounting Feet
Pole Mounting Kit Available

Applications

19" Rack Mountable Equipment
Indoor / Outdoor Electrical and Electronic Equipment
Rack Mount Audio/Video Equipment
Ethernet Switches
Networking Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage

Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray

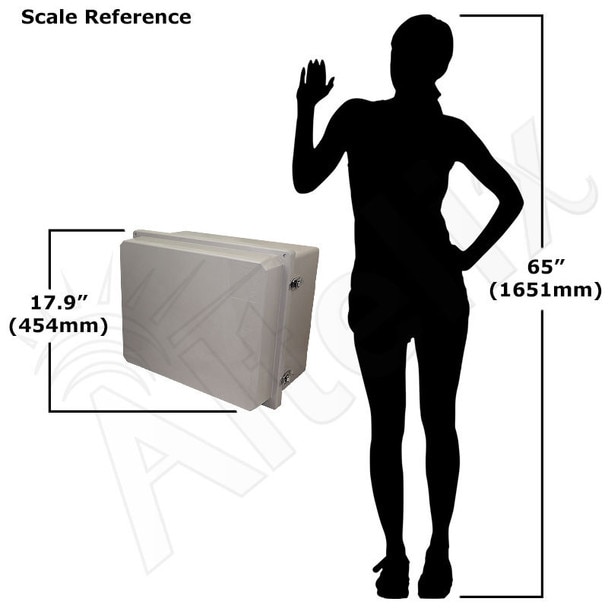

Outer Dimensions	17.9 x 21.8 x 12.7 Inches (454 x 553 x 323 mm)
Inner Dimensions	14.7 x 18.7 x 12.0 Inches (374 x 475 x 305 mm)
Rack Frame	19" Width 6U
Rack Frame Weight Capacity	75 lbs. (34kg)
Mounting Plate Material	0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions	18.7 x 14.8 in. (475 x 378 mm)
Weight	30.2 lbs. (13.7 kg)
Ratings	NEMA Type 4, 4X / IP66
Flame Rating	UL94-5V
Industry Certifications	CE
