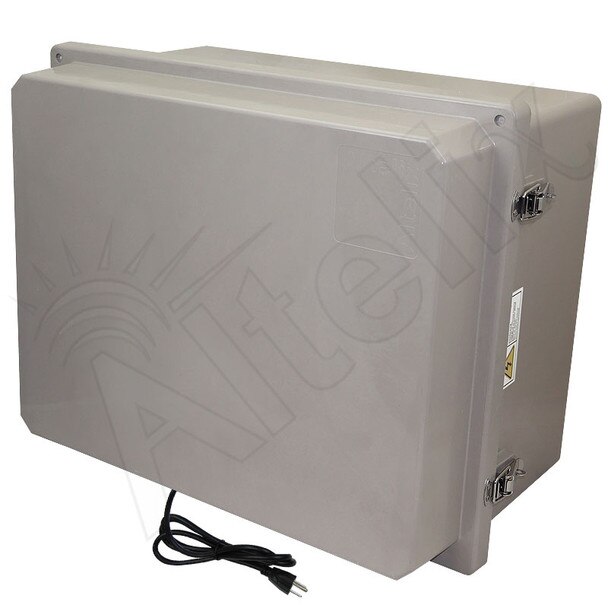

Altelix NF162012A1C-RV2U - 16x20x12 Fiberglass Weatherproof NEMA Enclosure with 19" Wide 2U Vertical Rack Frame, 120 VAC Outlets & Power Cord

Brand: Altelix
P\N: NF162012A1C-RV2U

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Altelix 16x20x12 Fiberglass Weatherproof NEMA Enclosure with 19" Wide 2U Vertical Rack Frame, 120 VAC Outlets & Power Cord

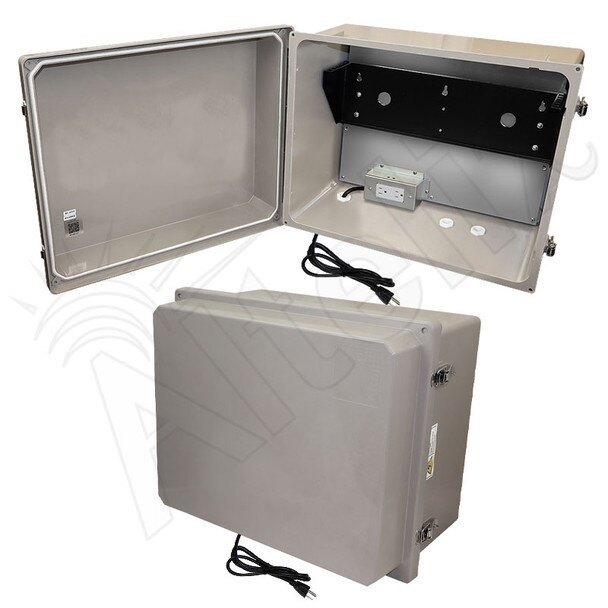

Internal 2U 19" Vertical Equipment Rack

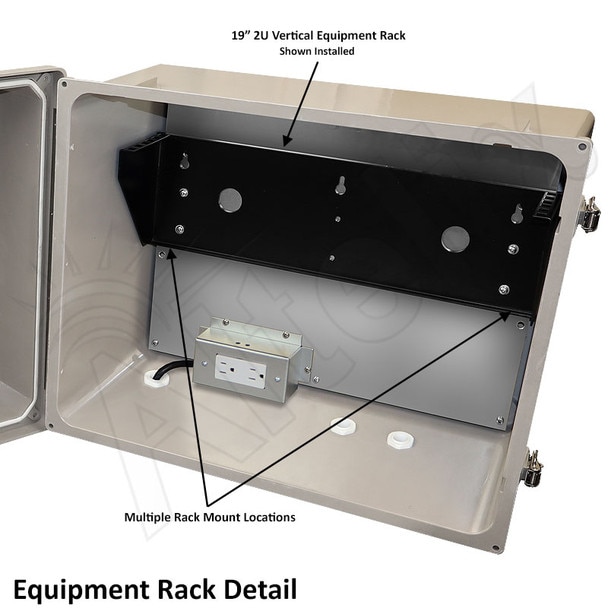

The NF162012A1C-RV2U features a standard 19" 2U vertical equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Two mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 2U rack is 9.6" (244mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Plug and Play Power for Rapid Deployment

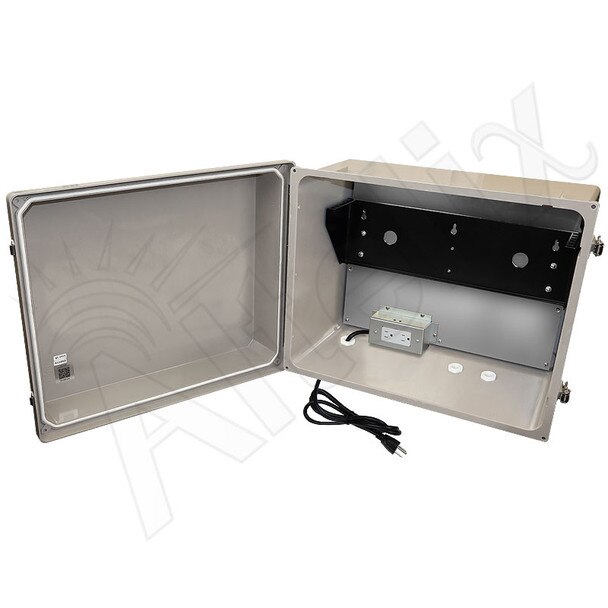

The Altelix NF162012A1C-RV2U enclosure features two pre-wired 120VAC power outlets inside the enclosure to provide power to your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Extreme Protection Built to Last

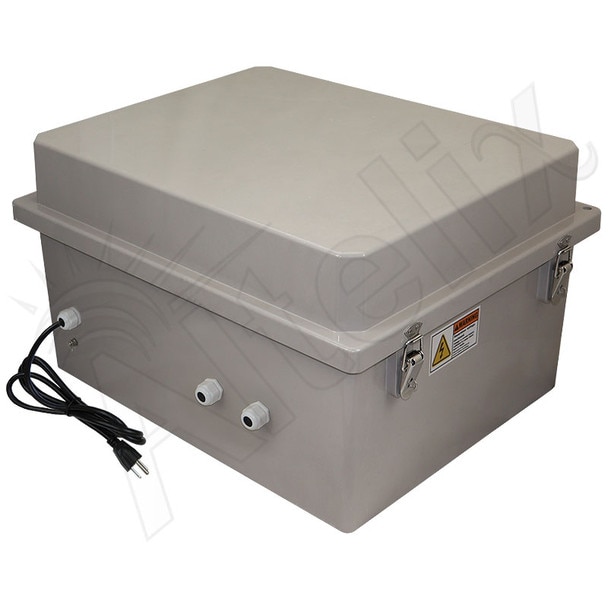

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Cable Glands

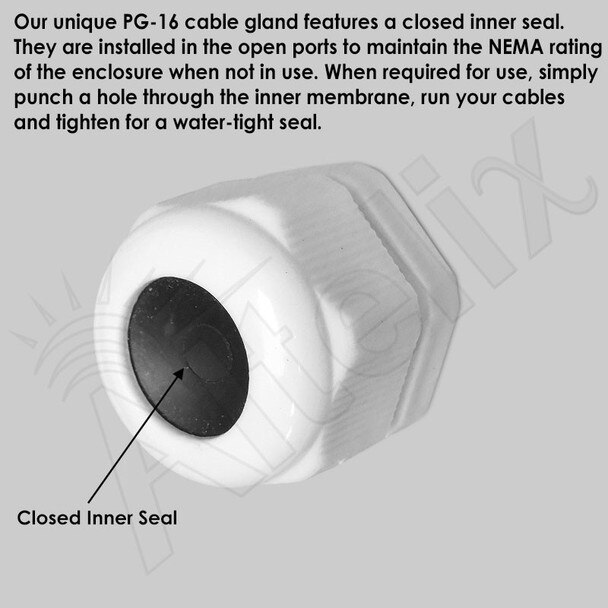

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

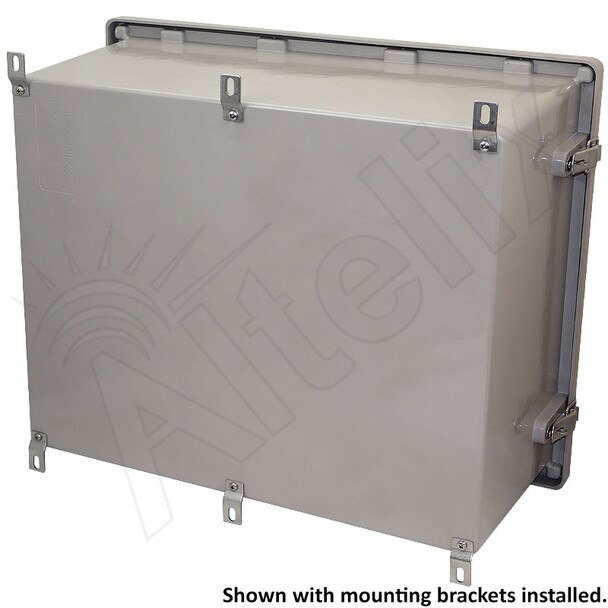

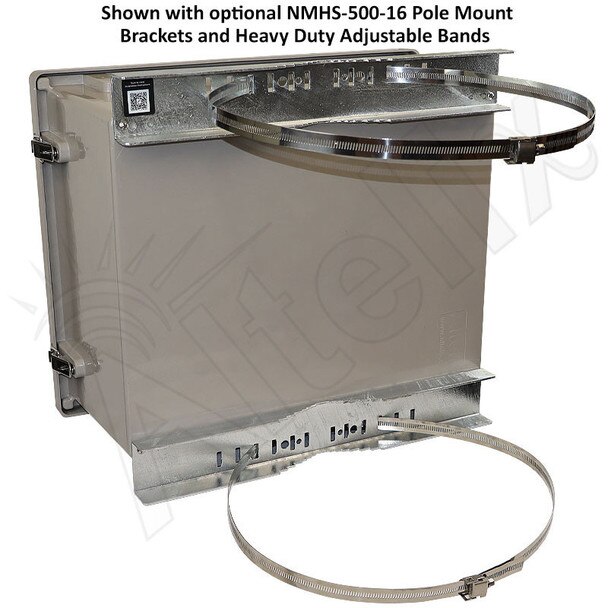

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

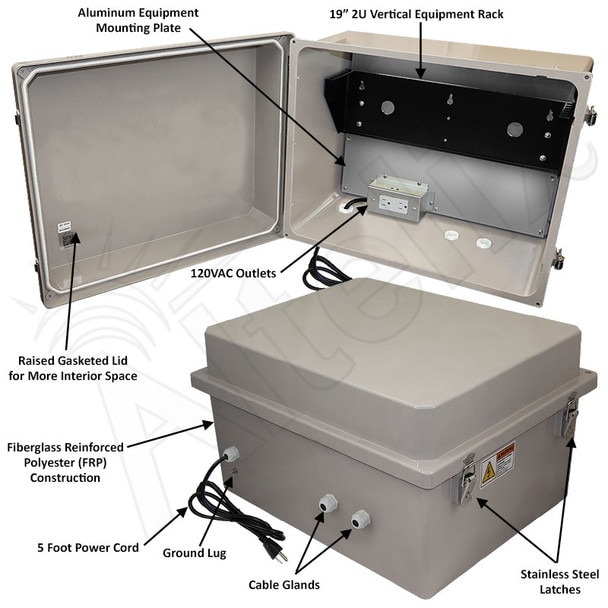

Features

Features

New 16x20x12 Size!
Includes 19" 2U Vertical Rack Frame with Blank Aluminum Equipment Mounting Plate
No Electrical Wiring Required
Pre-wired 5 foot 3-Prong Power Cord
(2) Pre-Wired 120VAC Outlets
Aluminum Equipment Mounting Plate
Extra Deep Extended Lid for Increased Equipment Clearance
Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
Stainless Steel Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
Includes Cable Glands and Stainless Steel Mounting Feet
Pole Mounting Kit Available

Applications

19" Rack Mountable Equipment
Rack Mount UPS Systems
Indoor / Outdoor Electrical and Electronic Equipment
Rack Mount Audio/Video Equipment
Rack Mount Amplifiers and PA System Amplifiers
Ethernet Switches
Networking Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage

Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC

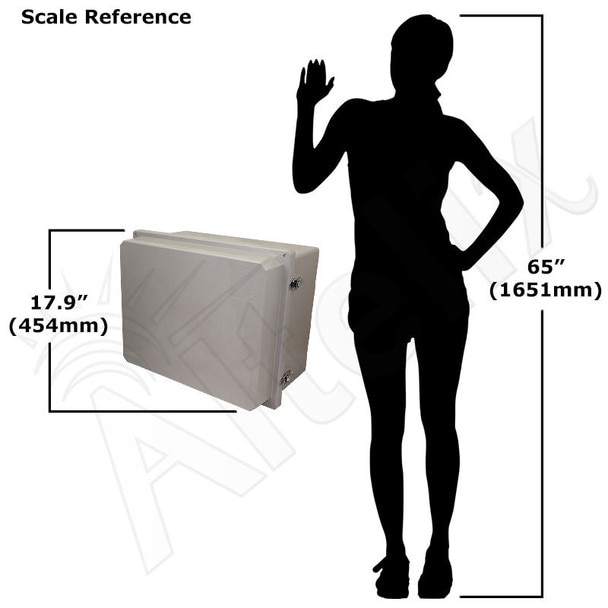

Outer Dimensions	17.9 x 21.8 x 12.7 Inches (454 x 553 x 323 mm)
Inner Dimensions	14.7 x 18.7 x 11.0 Inches (374 x 475 x 279 mm)
Rack Frame	19" Width 2U Vertical Mount
Rack Frame Weight Capacity	66 lbs. (30kg)
Mounting Plate Material	0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions	18.7 x 14.8 in. (475 x 378 mm)
Weight	22.9 lbs. (10.4 kg)
Power Cord Length	5 Feet (1.5m)
Ratings*	NEMA Type 4, 4X / IP66
Flame Rating	UL94-5V
