Altelix NF162012A1C-R6U - 16x20x12 Fiberglass Weatherproof NEMA Enclosure with 19" Wide 6U Rack Frame, 120 VAC Outlets & Power Cord

  • Brand: Altelix
  • P\N: NF162012A1C-R6U
(0)No Reviews yet

Availability: In Stock


Special Note: This item is Non-Cancellable and Non-Returnable


Your Price: $599.99

Do you have questions?

Please contact our experts for assistance.

Description

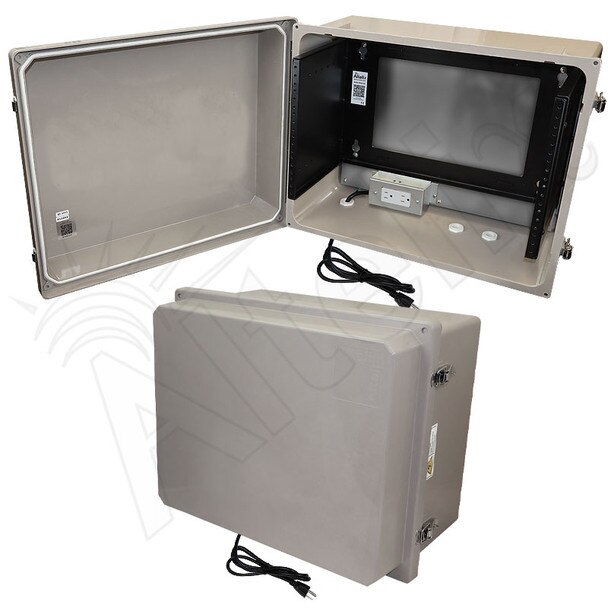

Altelix NF162012A1C-R6U 16x20x12 Fiberglass Weatherproof NEMA Enclosure



Best For

The Altelix NF162012A1C-R6U Enclosure features two pre-wired 120VAC power outlets inside the enclosure to provide power to your equipment.

Why Choose the NF162012A1C-R6U?

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Key Benefits

  • Get your project up and running quickly and transition to hard-wired later if needed
  • The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer
  • The NF162012A1C-R6U features a standard 19" 6U equipment rack
  • It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment
  • The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements

Who Should Buy the NF162012A1C-R6U?

Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.

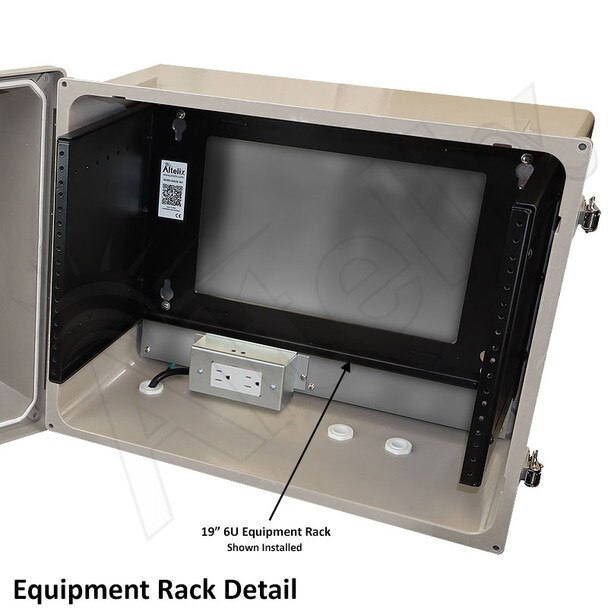

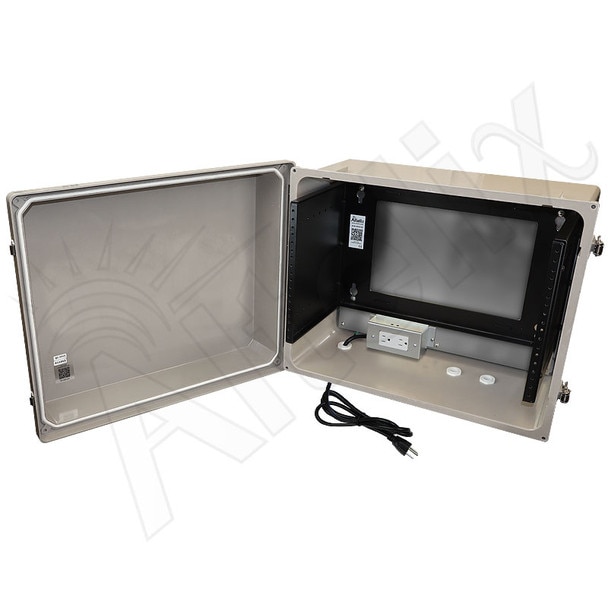

Internal 6U 19" Equipment Rack

Installation Note: The max. depth of the 4U rack is 9.5" (241mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

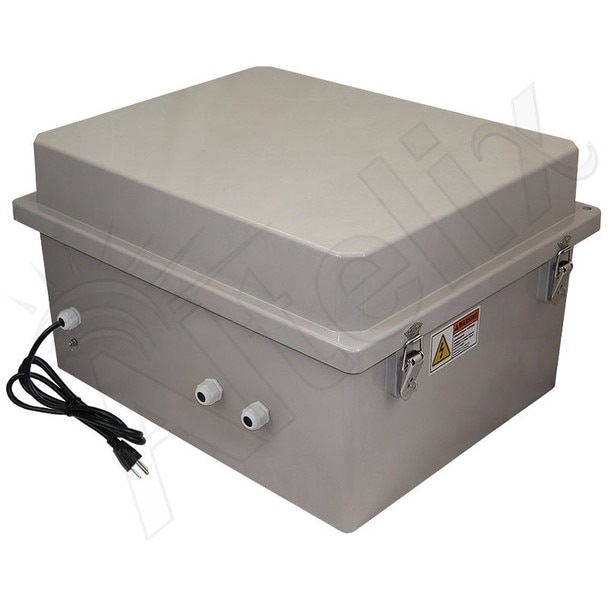

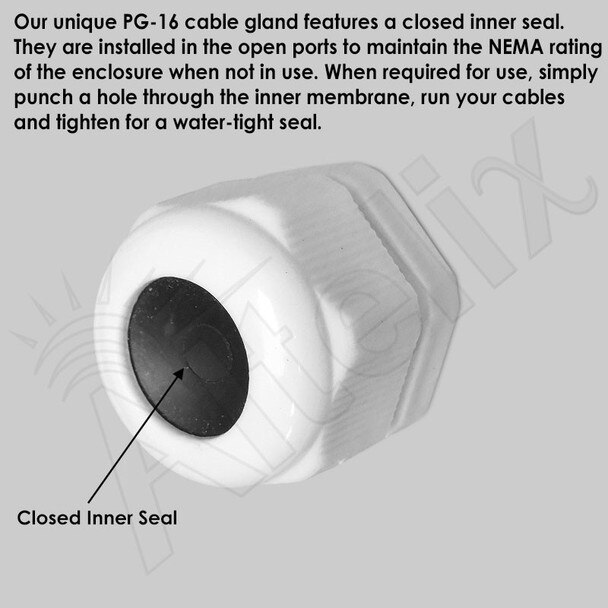

Cable Glands

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

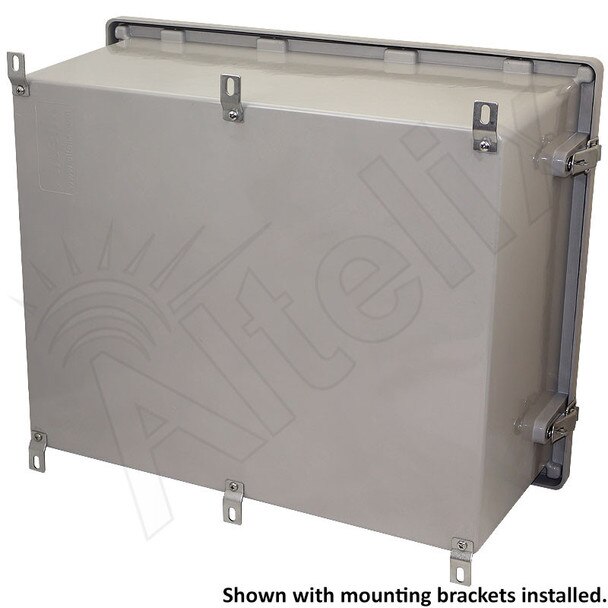

Mounting

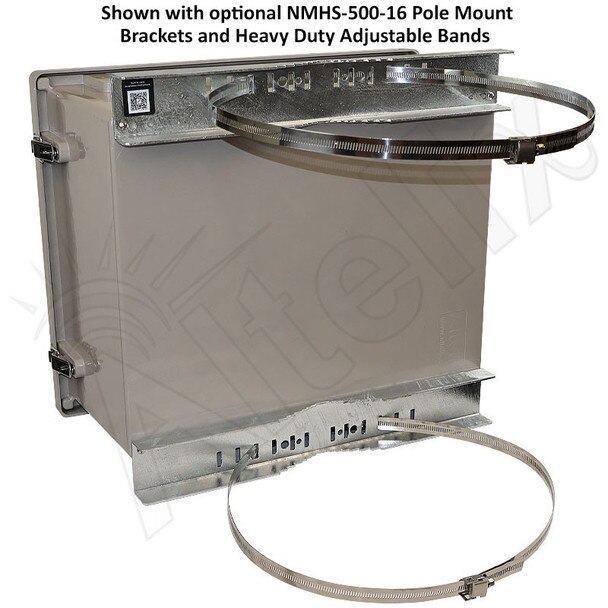

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

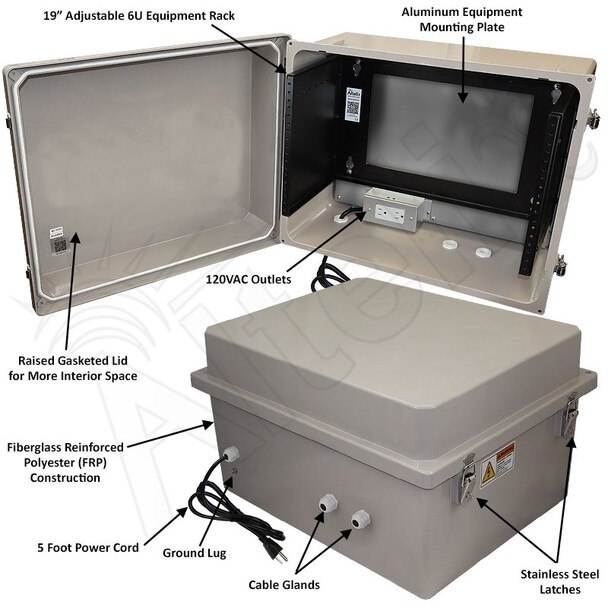

Features

Features

  • New 16x20x12 Size!

  • Includes 19" 6U Rack Frame with Blank Aluminum Equipment Mounting Plate

  • No Electrical Wiring Required

  • Pre-wired 5 foot 3-Prong Power Cord

  • (2) Pre-Wired 120VAC Outlets

  • Aluminum Equipment Mounting Plate

  • Extra Deep Extended Lid for Increased Equipment Clearance

  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins

  • Stainless Steel Quick Release Latches with Padlock Hasps

  • Fiberglass Reinforced Polyester, FRP

  • Weatherproof, UV Stable and Highly Corrosion Resistant

  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66

  • Includes Cable Glands and Stainless Steel Mounting Feet

  • Pole Mounting Kit Available

Applications

  • 19" Rack Mountable Equipment

  • Indoor / Outdoor Electrical and Electronic Equipment

  • Rack Mount Audio/Video Equipment

  • Ethernet Switches

  • Networking Equipment

  • Industrial Controls and Components

  • Security and Surveillance Systems

  • Outdoor use of Indoor Equipment

  • Protection of Equipment from Theft or Damage

Specifications

MaterialFiberglass Reinforced Polyester
ColorGray
Voltage120VAC
Max Load10A @ 120VAC

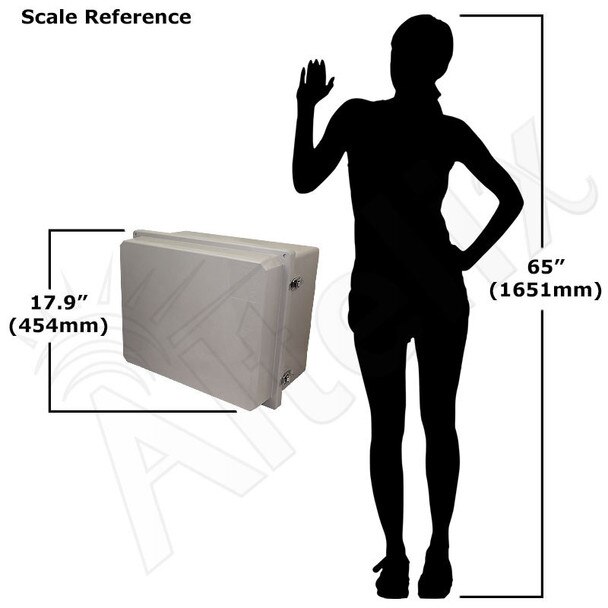

Outer Dimensions17.9 x 21.8 x 12.7 Inches
(454 x 553 x 323 mm)
Inner Dimensions14.7 x 18.7 x 11.0 Inches
(374 x 475 x 279 mm)
Rack Frame19" Width 6U
Rack Frame Weight Capacity75 lbs. (34kg)
Mounting Plate Material0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions18.7 x 14.8 in. (475 x 378 mm)
Weight31.2 lbs. (14.1 kg)
Power Cord Length5 Feet (1.5m)
Ratings*NEMA Type 4, 4X / IP66
Flame RatingUL94-5V
*Notes: Enclosure ports must be properly sealed to maintain NEMA Type 4, 4X / IP66 rating.
