Altelix NF162012VP-RV2U - 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide 2U Vertical Rack Frame

Brand: Altelix
P\N: NF162012VP-RV2U

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

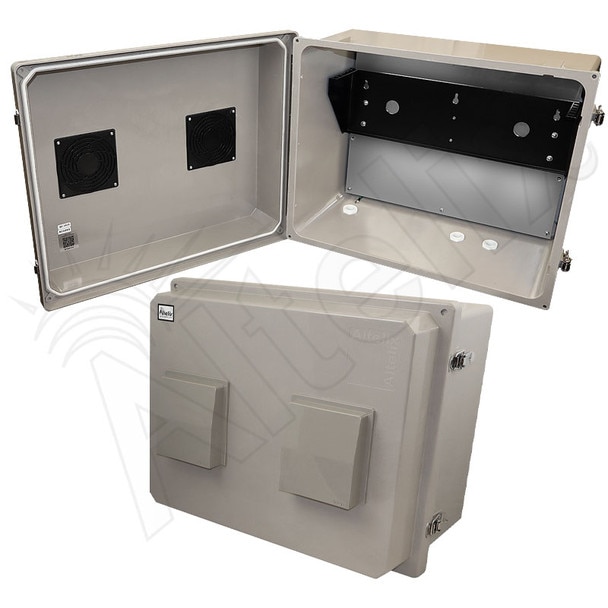

Altelix 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide 2U Vertical Rack Frame

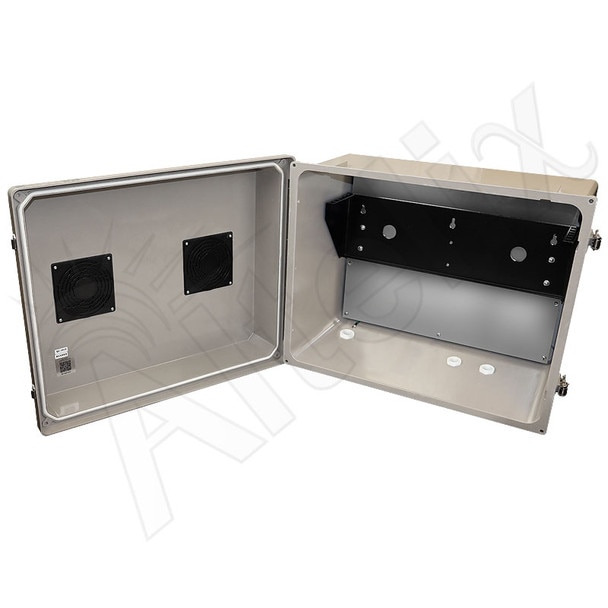

Internal 2U 19" Vertical Equipment Rack

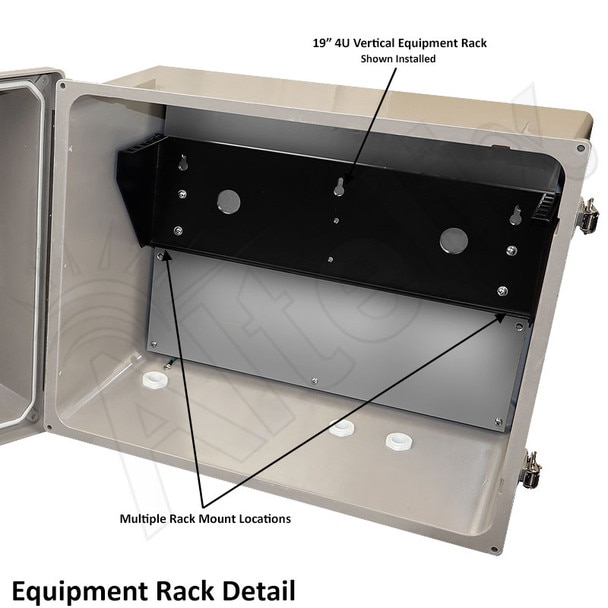

The NF162012VP-RV2U features a standard 19" 4U vertical equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Two mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 2U rack is 12.0" (305mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Vented Weatherproof Enclosure Provides Extreme Protection

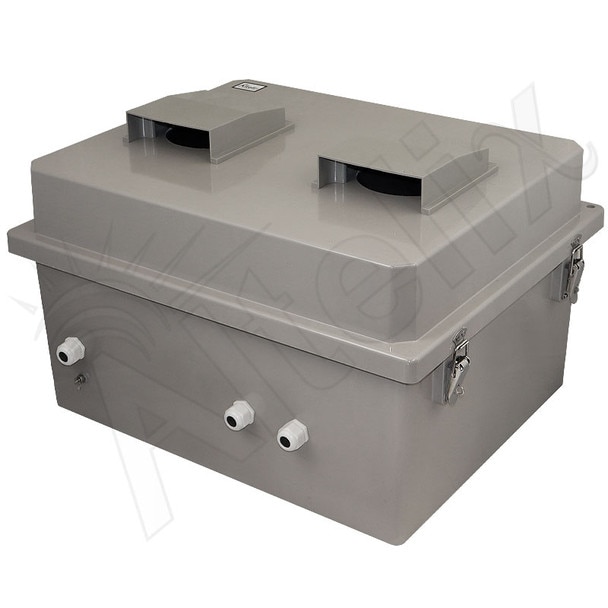

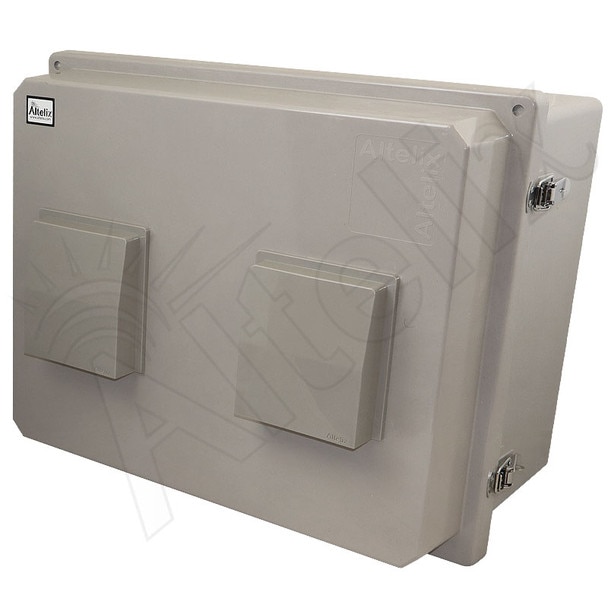

The Altelix NF162012VP-RV2U enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Mounting

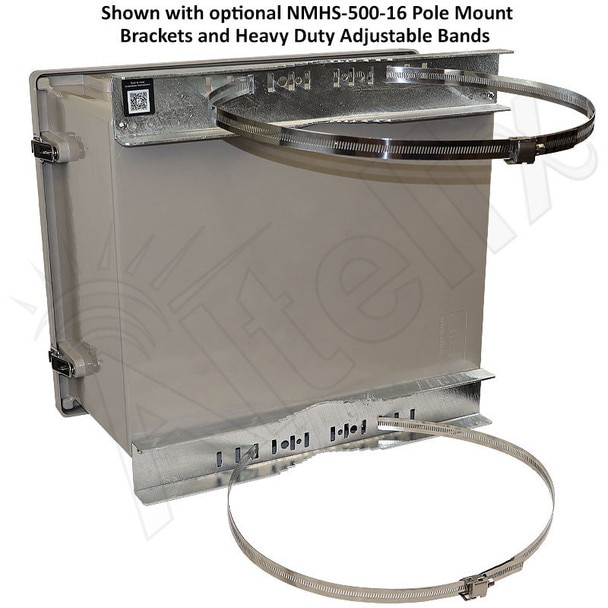

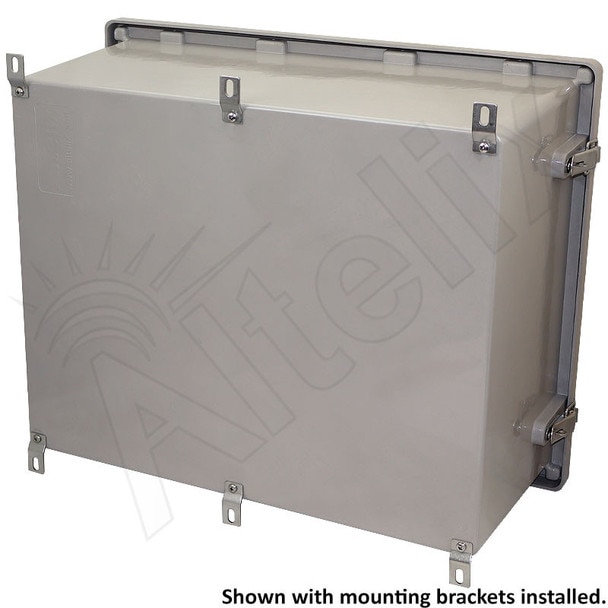

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

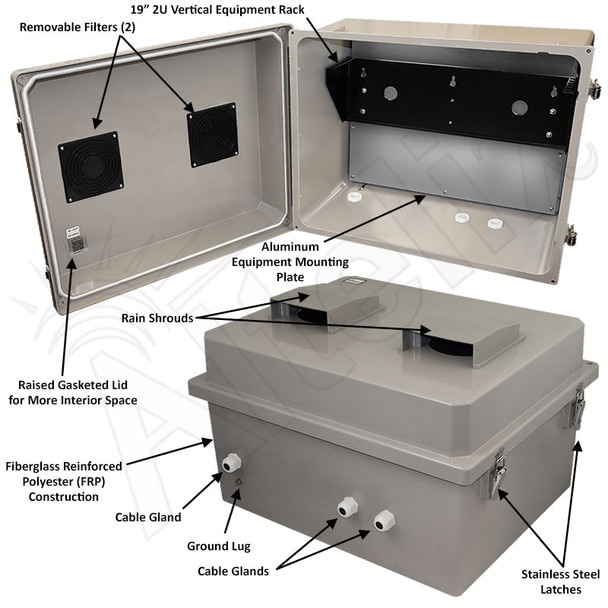

Features

Features

New 16x20x12 Size!
(2) 4" Vents with Rain Shields and Screens
Includes 19" 2U Vertical Rack Frame with Blank Aluminum Equipment Mounting Plate
Water Resistant JIC Enclosure Design with Gasketed Lid
Extra Deep Extended Lid for Increased Equipment Clearance
NEMA Type 3R, 3RX / IP24 Rated
Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
Stainless Steel Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
Includes Stainless Steel Mounting Feet
Pole Mounting Kit Available

Applications

19" Rack Mountable Equipment
Rack Mount UPS Systems
Indoor / Outdoor Electrical and Electronic Equipment
Rack Mount Audio/Video Equipment
Rack Mount Amplifiers and PA System Amplifiers
Ethernet Switches
Networking Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage

Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray

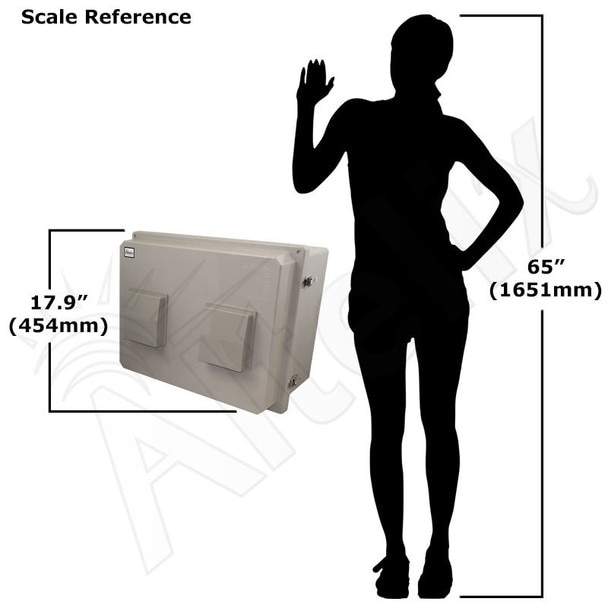

Outer Dimensions	17.9 x 21.8 x 14.3 Inches (454 x 553 x 363 mm)
Inner Dimensions	14.7 x 18.7 x 11.0 Inches (374 x 475 x 279 mm)
Rack Frame	19" Width 2U Vertical Mount
Rack Frame Weight Capacity	66 lbs. (30kg)
Mounting Plate Material	0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions	18.7 x 14.8 in. (475 x 378 mm)
Weight	22.5 lbs. (10.2 kg)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-5V
Industry Certifications	CE
