Altelix NF162012VFA1C-R6U - 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide 6U Rack Frame, Dual Cooling Fans, 120V Outlets & Power Cord

Altelix NF162012VFA1C-R6U 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide 6U Rack Frame, Dual Cooling Fans, 120V Outlets & Power Cord

Best For

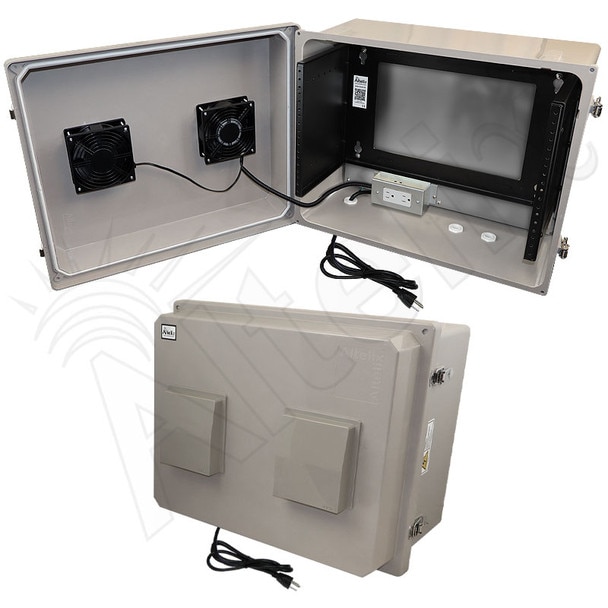

The Altelix NF162012VFA1C-R6U is a vented 16x20x12 fiberglass NEMA enclosure with a standard 19" 6U equipment rack, dual cooling fans and plug and play power.

Why Choose the NF162012VFA1C-R6U?

The enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two pre-wired 120VAC power outlets inside the enclosure provide power to your equipment.

The enclosure is molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment, and the installer can drill and modify it as needed. Improved stainless steel hinges with high quality 316 steel hinge pins provide lasting durability in even the harshest coastal conditions, and the gasketed door includes stainless steel quick release latches with padlock hasps.

Key Benefits

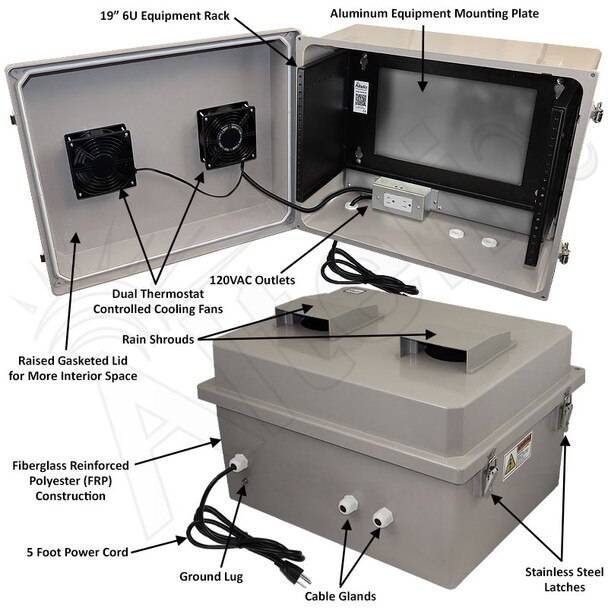

• Standard 19" 6U equipment rack for network switches, rack mount audio/video equipment and other rack mountable gear.
• Rack frame mounts to a 2.0mm thick aluminum plate that the installer can drill and modify.
• No wiring required: plug the pre-wired 5 foot power cord into a nearby outlet.
• Two pre-wired 120VAC power outlets.
• Dual 4" vents and dual thermostat controlled cooling fans; fans turn on at 100°F (38°C) and off at 79°F (26°C).
• Rain shrouds on the front door keep rain water out.

Who Should Buy the NF162012VFA1C-R6U?

This enclosure suits anyone who needs a cooled, ready-to-plug-in weatherproof home for rack mountable equipment.

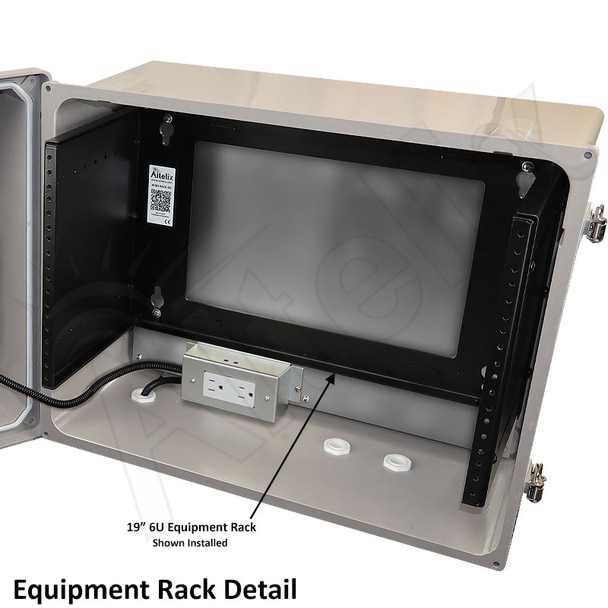

Internal 6U 19" Equipment Rack

The standard 19" 6U equipment rack accommodates a wide range of equipment. The rack frame mounts to a 2.0mm thick aluminum plate, which can also be drilled and modified by the installer to unique site requirements.

Installation Note: The max. depth of the rack is 9.5" (241mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Dual Cooling Fans Ventilation

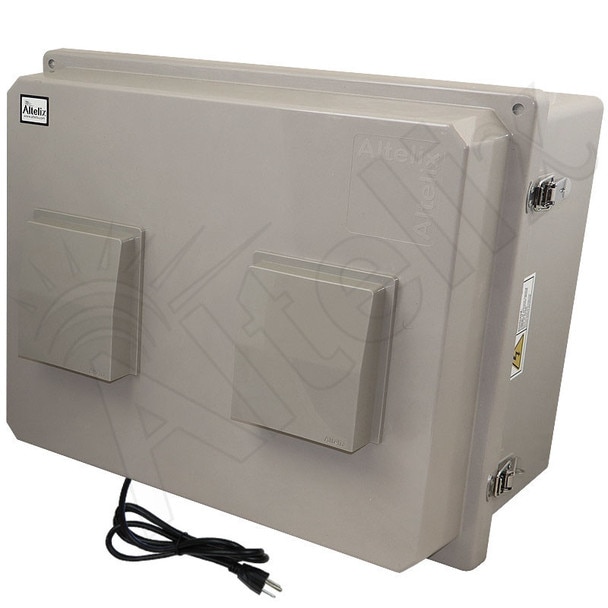

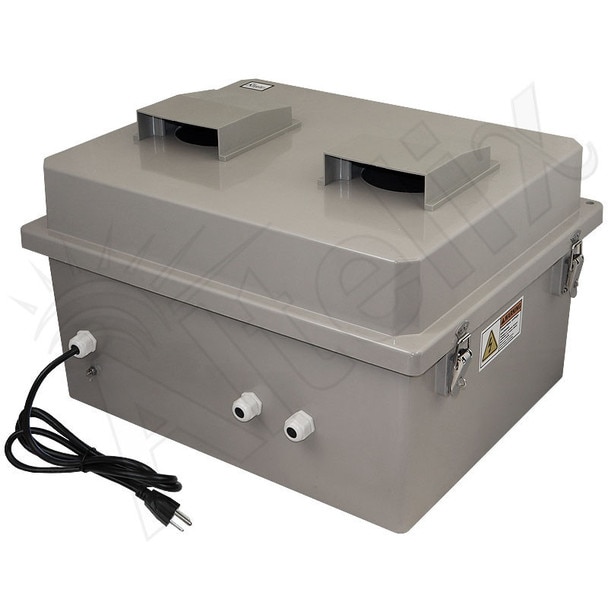

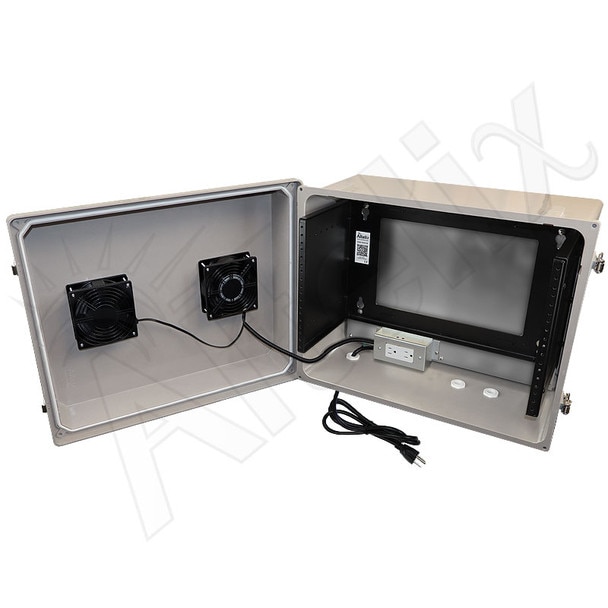

This enclosure features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by providing air flow through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turn off when it drops to 79°F (26°C). Both fans are wired internally, so they do not require the use of the AC outlets, leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Cable Glands

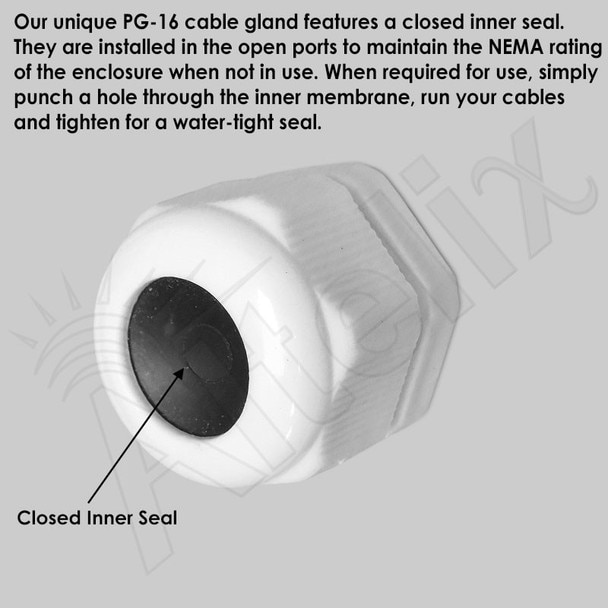

The enclosure features unique PG-16 cable glands with a closed inner seal, installed in the open ports to maintain the NEMA rating when not in use. When required, punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

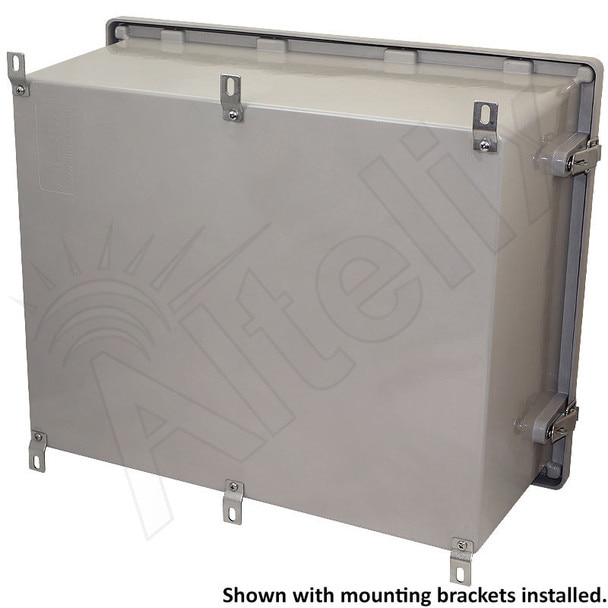

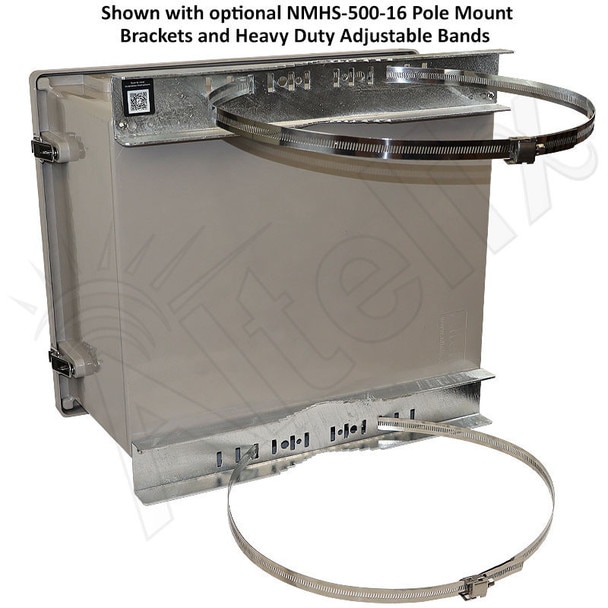

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization

Altelix offers custom enclosures for WiFi equipment, DIN mount industrial controls, telephone call boxes, IP phones, security and safety, building automation and more. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans and heaters, plus full customization, engineering and on-site CNC machining, all with quick turnaround time. Please contact us with your unique requirements.
