Altelix NF162012VA1C - 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with Aluminum Mounting Plate, 120V Outlets & Power Cord

Altelix NF162012VA1C 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with Aluminum Mounting Plate, 120V Outlets & Power Cord

Best For

The Altelix NF162012VA1C is a vented 16x20x12 fiberglass NEMA enclosure with plug and play power, ideal for rapid deployment because no wiring is required.

Why Choose the NF162012VA1C?

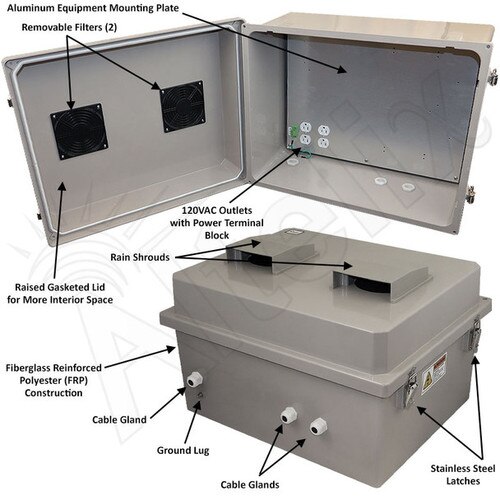

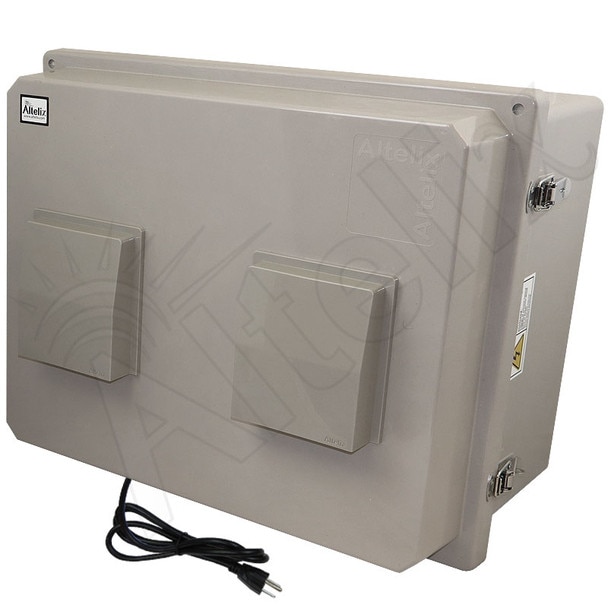

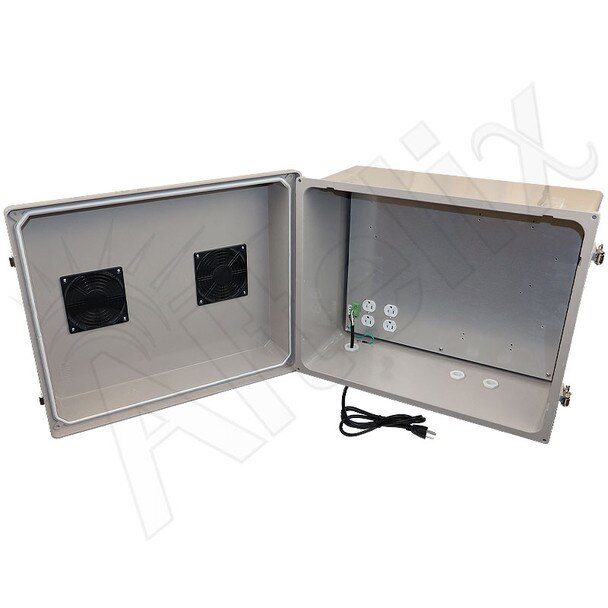

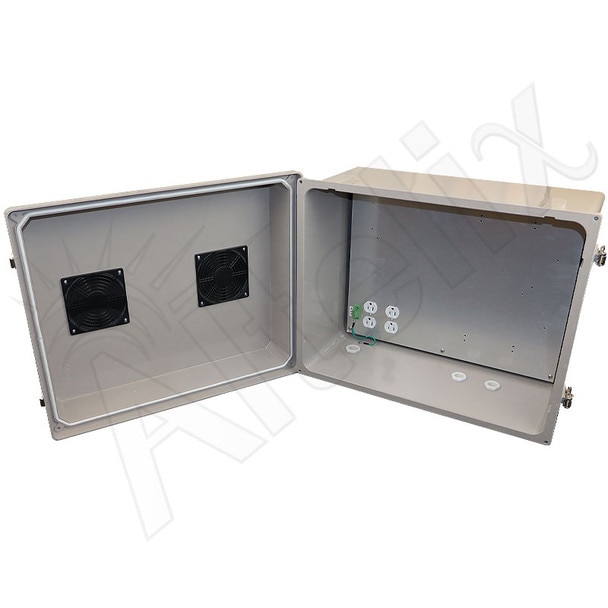

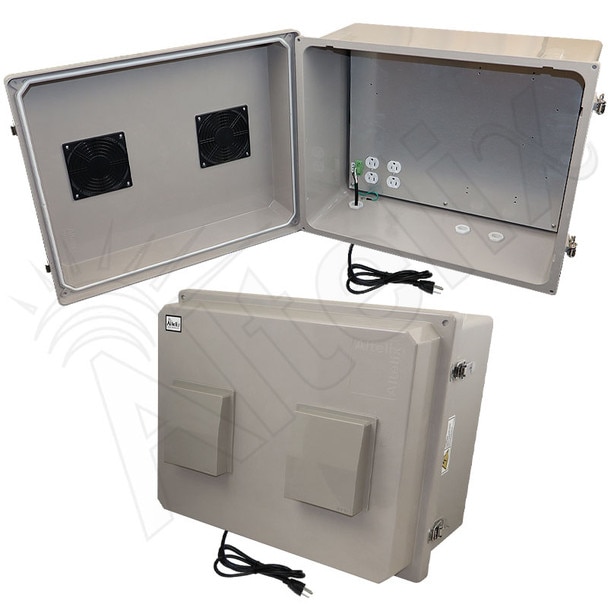

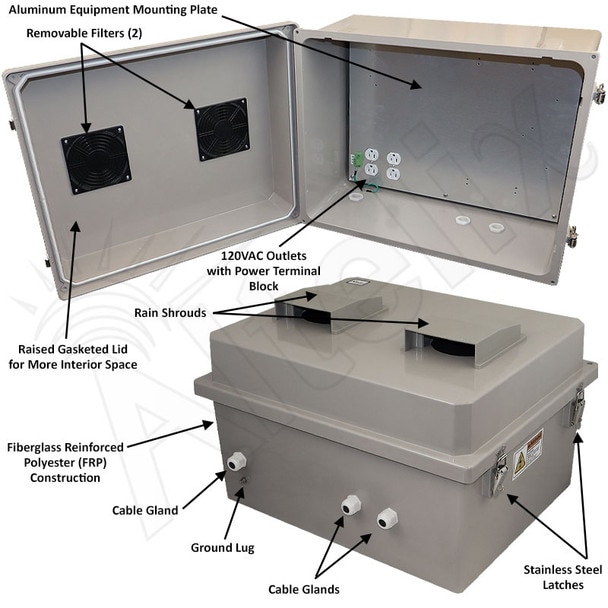

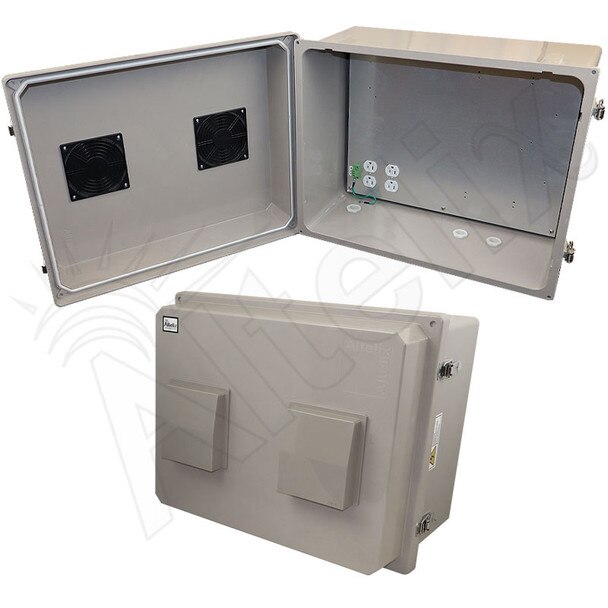

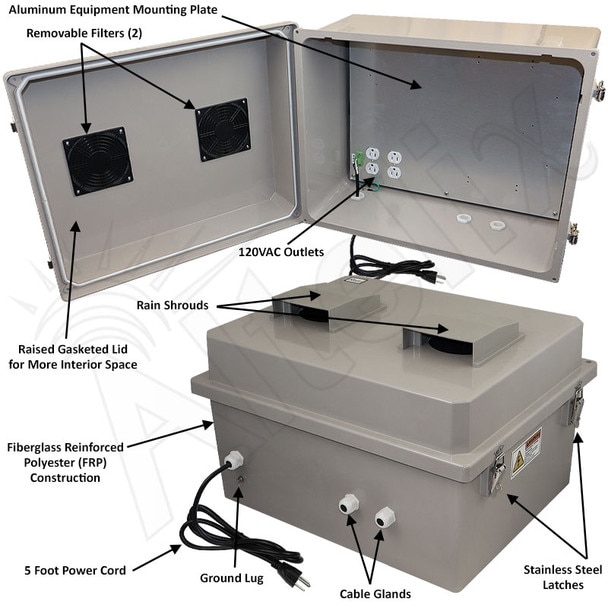

The NF162012V series uses the same rugged components as the NF14 series in a larger size to accommodate larger and more equipment. Two 4 inch air vents covered by rain shields with cleanable screens help expel heat from the installed equipment. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment, and the finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

Get your project up and running quickly and transition to hard-wired later if needed: the power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

The enclosure is molded from durable, UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment, and the installer can drill and modify it as needed. Improved stainless steel hinges with high quality 316 steel hinge pins provide lasting durability in even the harshest coastal conditions, and the gasketed door includes stainless steel quick release latches with padlock hasps.

Key Benefits

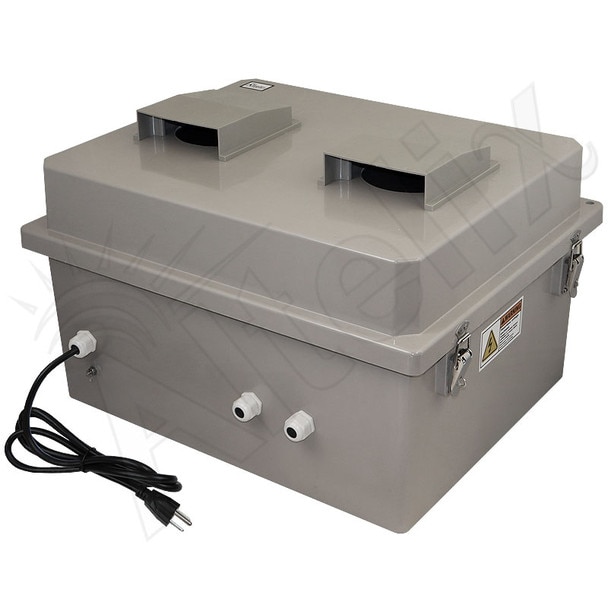

• No wiring required: mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet.
• Four pre-wired 120VAC power outlets for your equipment.

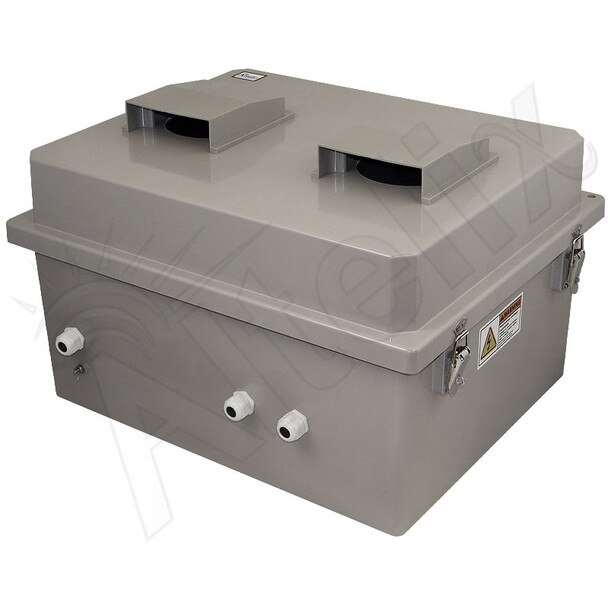

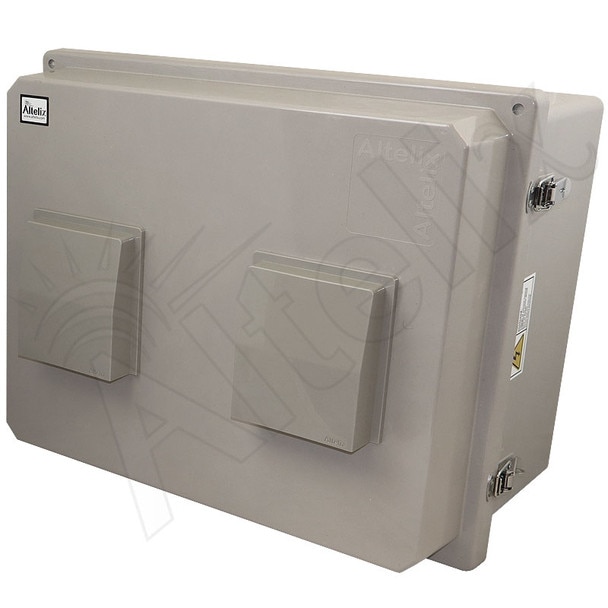

• Two 4 inch air vents with rain shields and cleanable screens help expel heat.
• Finished aluminum equipment mounting plate that the installer can drill.

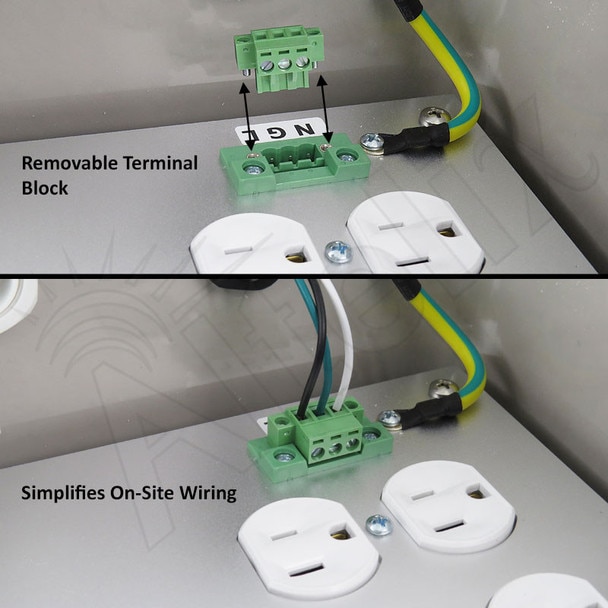

• Removable power cord and quick-connect terminal strip for later hard-wiring.
• Extra deep lid, over 3 inches deep, for a wide range of equipment.

Who Should Buy the NF162012VA1C?

This enclosure is ideal for anyone deploying powered, heat-producing equipment quickly without hard-wiring up front.

Cable Glands

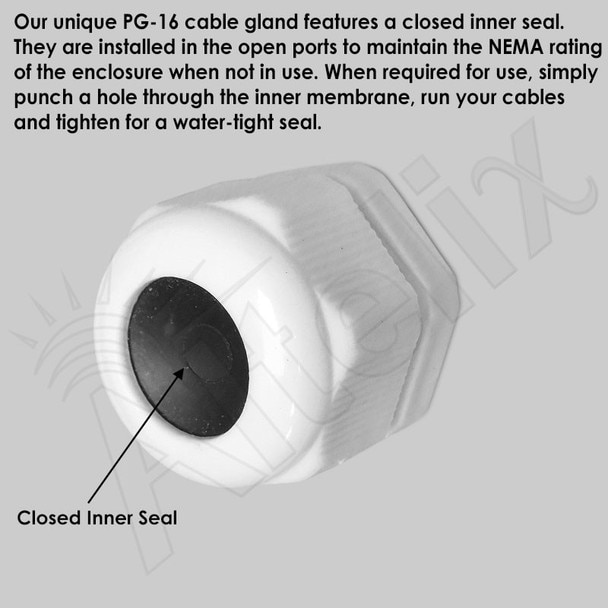

The enclosure features unique PG-16 cable glands with a closed inner seal, installed in the open ports to maintain the NEMA rating when not in use. When required, punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Increased Interior Space

The NF162012V series features an extra deep lid, over 3 inches deep, so the enclosure can accommodate a wide range of equipment.

Also Available in 20"x16"x12"

This enclosure is also available in a 20"x16"x12" configuration.

Mounting

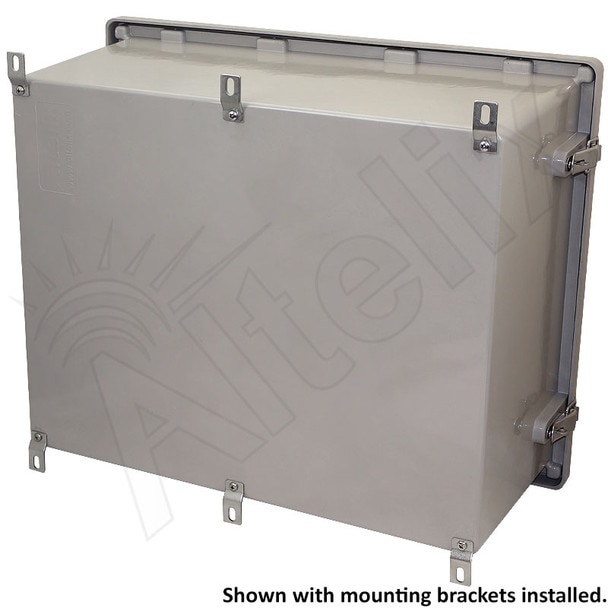

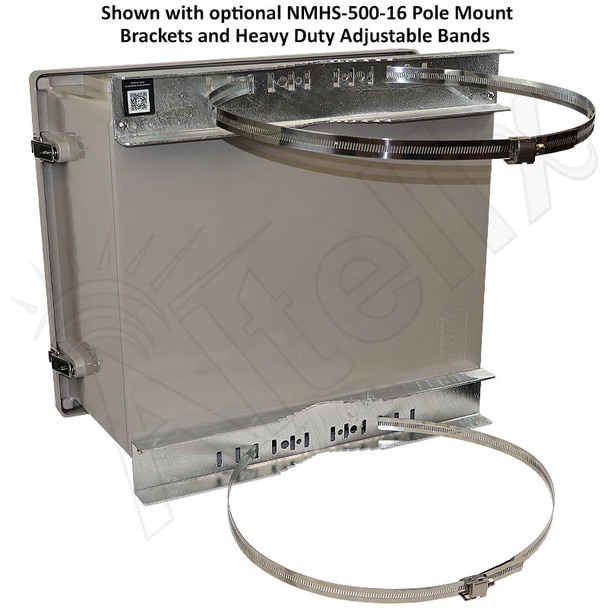

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization

Altelix offers custom enclosures for WiFi equipment, DIN mount industrial controls, telephone call boxes, IP phones, security and safety, building automation and more. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans and heaters, plus full customization, engineering and on-site CNC machining, all with quick turnaround time. Please contact us with your unique requirements.
