Altelix NF162012VA1C-RV4U-H - 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure with Heavy Duty 19"Wide 4U Vertical Rack Frame, 120V Outlets & Power Cord

  • Brand: Altelix
  • P\N: NF162012VA1C-RV4U-H
(0)No Reviews yet

Availability: In Stock


Special Note: This item is Non-Cancellable and Non-Returnable


Your Price: $554.99

Do you have questions?

Please contact our experts for assistance.

Description

Altelix NF162012VA1C-RV4U-H 16x20x12 Fiberglass Weatherproof Vented NEMA Enclosure



Best For

The NF162012VA1C-RV4U-H features a standard 19" 4U vertical equipment rack.

Why Choose the NF162012VA1C-RV4U-H?

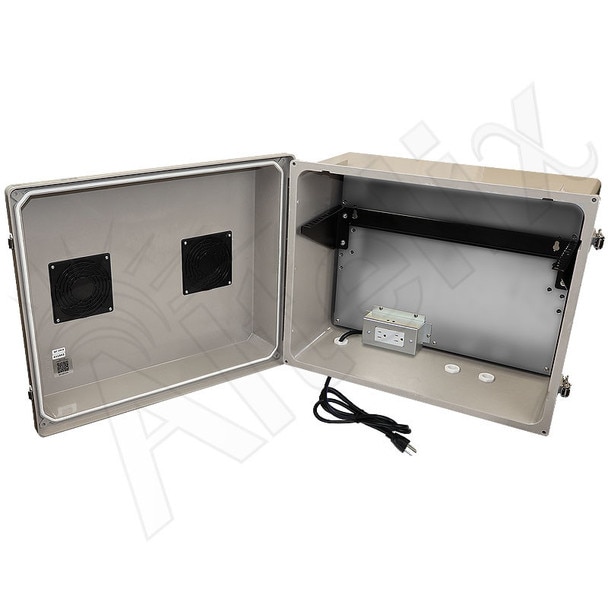

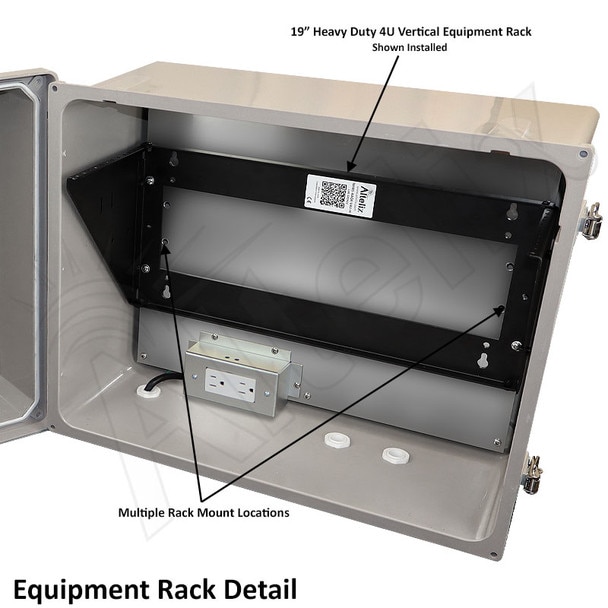

The heavy duty designed of this rack is ideal for use with heavier rack mount equipment such as UPS power systems, audio amplifiers and PA system amplifiers. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Three mounting positions for the rack are provided to accommodate a wide range of equipment sizes

Key Benefits

  • The heavy duty designed of this rack is ideal for use with heavier rack mount equipment such as UPS power systems, audio amplifiers and PA system amplifiers
  • The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements
  • Three mounting positions for the rack are provided to accommodate a wide range of equipment sizes
  • Installation Note: The max
  • Depth of the 4U rack is 10.9" (276mm)

Who Should Buy the NF162012VA1C-RV4U-H?

Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.

Plug and Play Power for Rapid Deployment

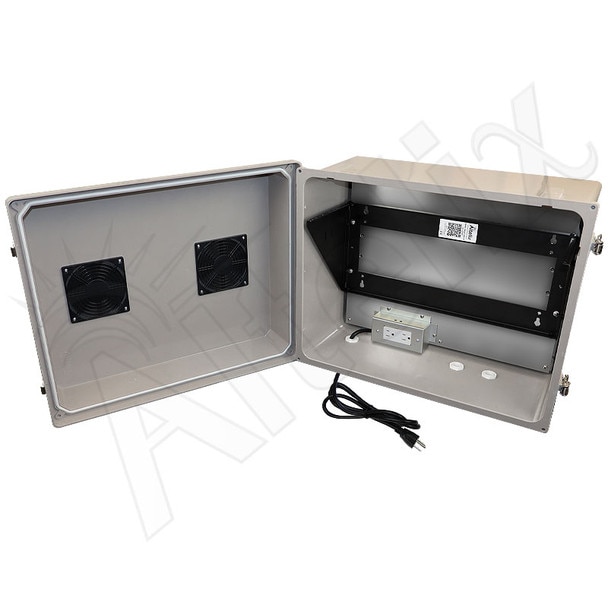

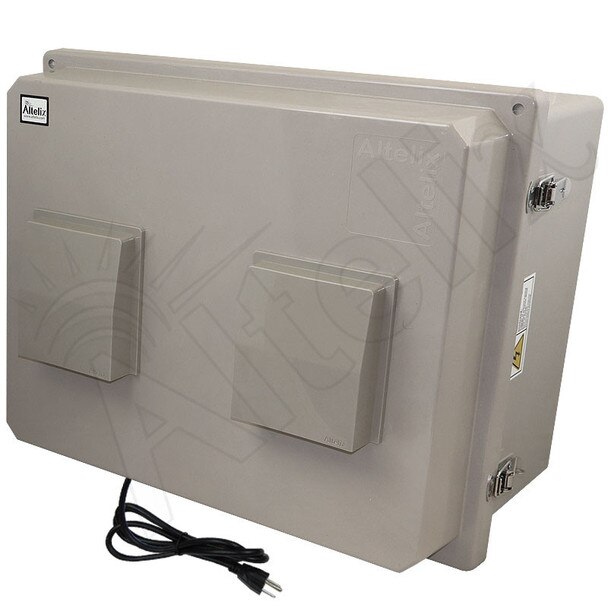

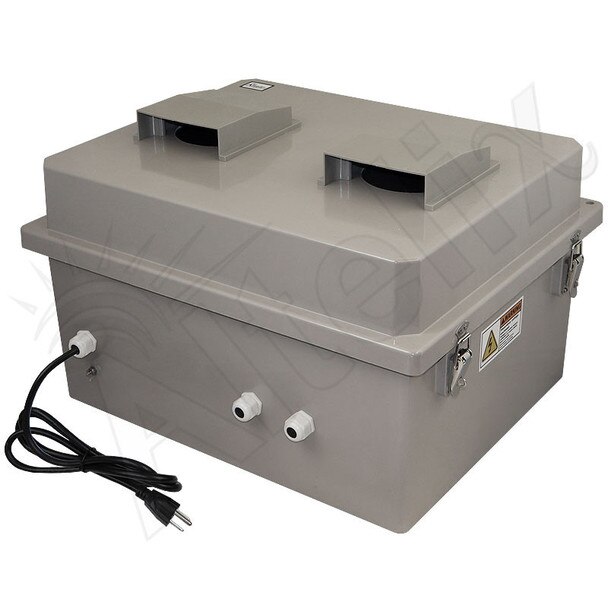

The Altelix NF162012VA1C-RV4U-H Enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment. The NF162012VA1C-RV4U is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two pre-wired 120VAC power outlets inside the enclosure provide power to your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

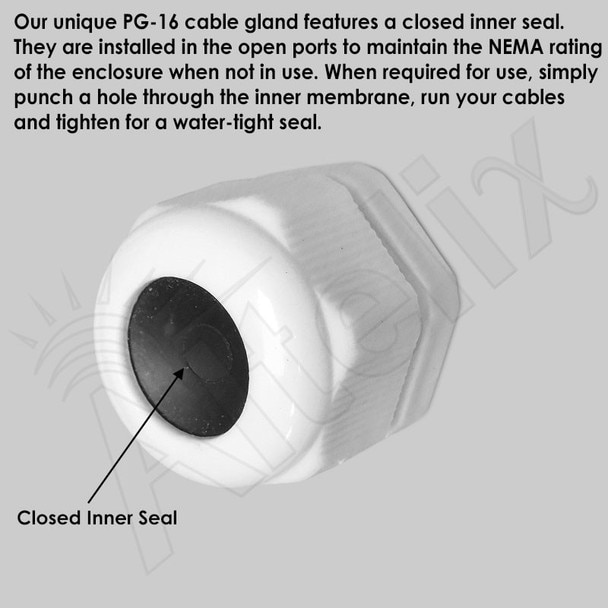

Cable Glands

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

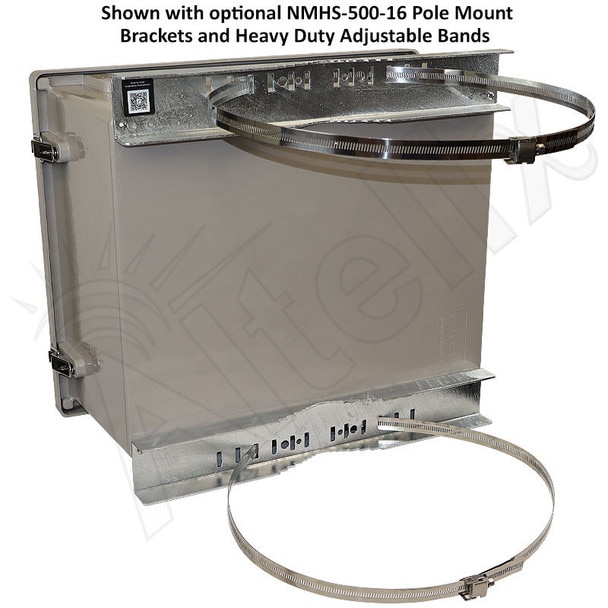

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

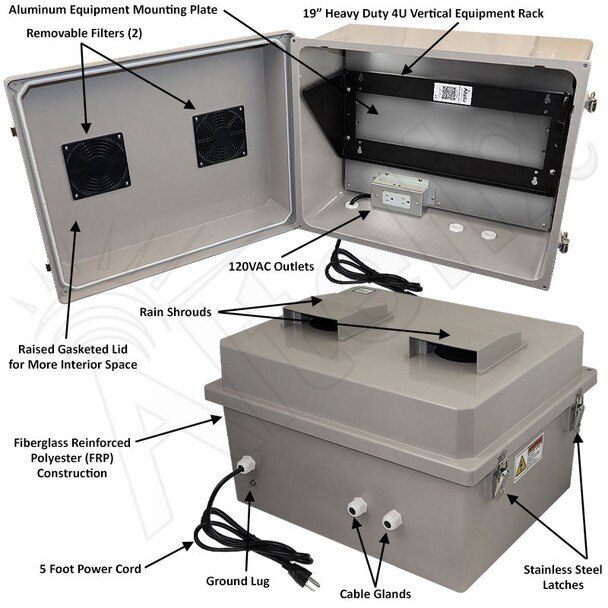

Features

Features

  • New 16x20x12 Size!

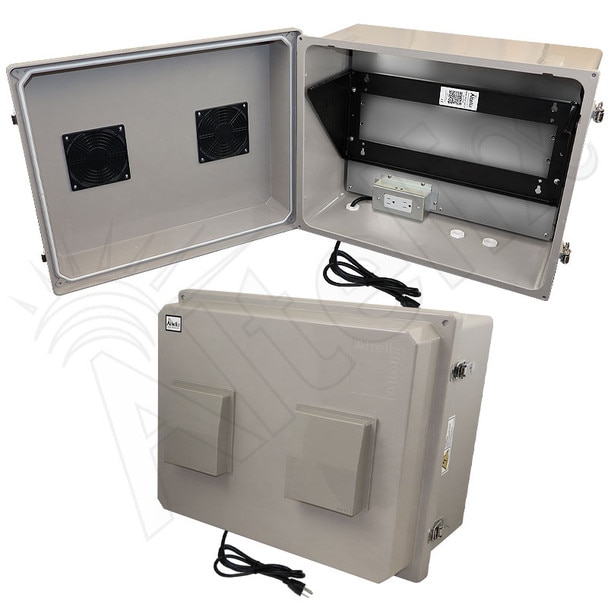

  • Includes 19" 4U Vertical Rack Frame with Blank Aluminum Equipment Mounting Plate

  • (2) 4" Vents with Rain Shields and Screens

  • No Electrical Wiring Required

  • Pre-wired 5 foot 3-Prong Power Cord

  • (2) Pre-Wired 120VAC Outlets

  • Aluminum Equipment Mounting Plate

  • Extra Deep Extended Lid for Increased Equipment Clearance

  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins

  • Stainless Steel Quick Release Latches with Padlock Hasps

  • Fiberglass Reinforced Polyester, FRP

  • Weatherproof, UV Stable and Highly Corrosion Resistant

  • NEMA Type 3R, 3RX / IP24 Rated

  • Includes Cable Glands and Stainless Steel Mounting Feet

  • Pole Mounting Kit Available

Applications

  • 19" Rack Mountable Equipment

  • Rack Mount UPS Systems

  • Indoor / Outdoor Electrical and Electronic Equipment

  • Rack Mount Audio/Video Equipment

  • Rack Mount Amplifiers and PA System Amplifiers

  • Ethernet Switches

  • Networking Equipment

  • Industrial Controls and Components

  • Security and Surveillance Systems

  • Outdoor use of Indoor Equipment

  • Protection of Equipment from Theft or Damage

Specifications

MaterialFiberglass Reinforced Polyester
ColorGray
Voltage120VAC
Max Load10A @ 120VAC

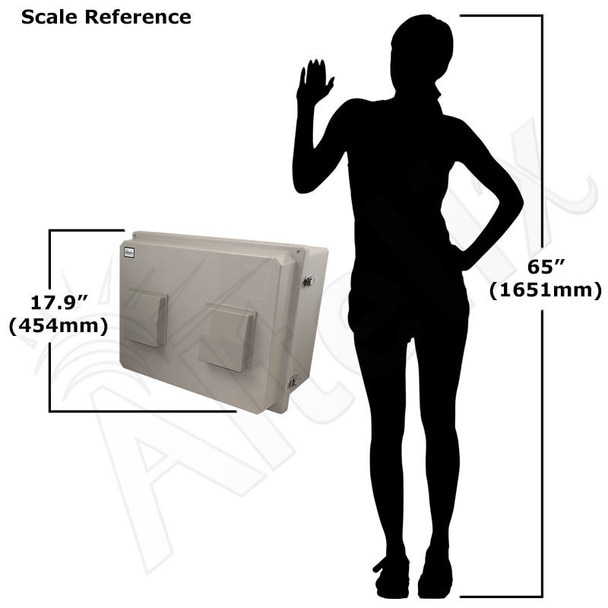

Outer Dimensions17.9 x 21.8 x 14.3 Inches
(454 x 553 x 363 mm)
Inner Dimensions14.7 x 18.7 x 11.0 Inches
(374 x 475 x 279 mm)
Rack Frame19" Width 4U Vertical Mount
Rack Frame Weight Capacity105 lbs. (47.6kg)
Mounting Plate Material0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions18.7 x 14.8 in. (475 x 378 mm)
Weight24.1 lbs. (10.9 kg)
Power Cord Length5 Feet (1.5m)
RatingsNEMA Type 3R, 3RX / IP24
Flame RatingUL94-5V
