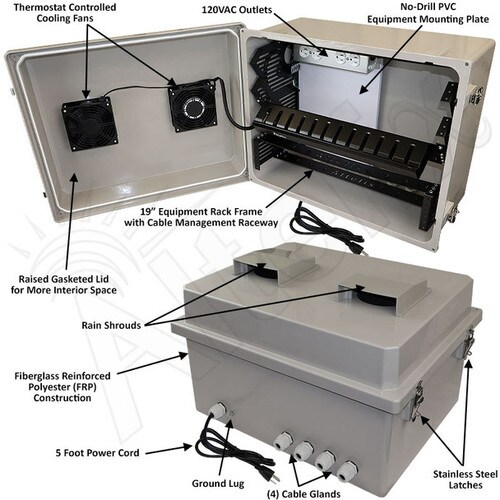

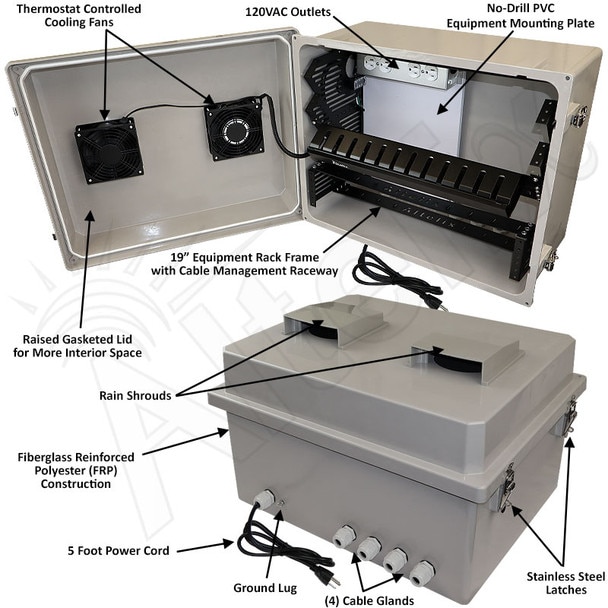

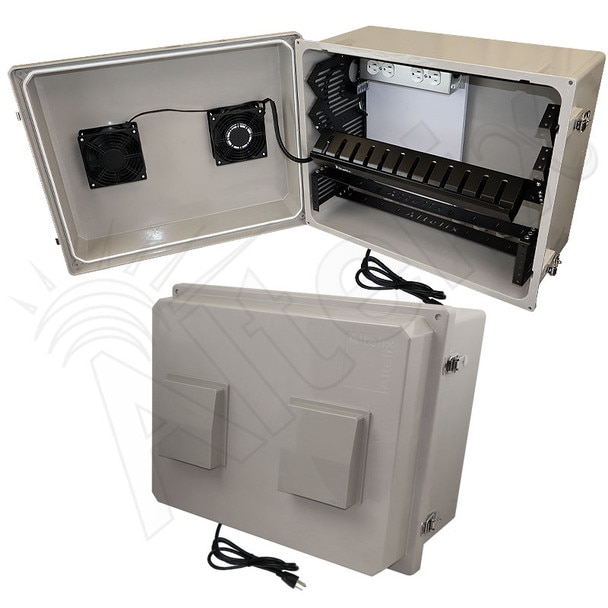

Altelix NF162012VMFA1C-R2SU - 16x20x12 Space Saver 19" Wide Equipment Rack Enclosure - Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide Slanted Rack Frame and Cable Management Raceway, Dual Cooling Fans, 120V Outlets & Power Cord

Altelix NF162012VMFA1C-R2SU 16x20x12 Space Saver 19" Wide Equipment Rack Enclosure, Fiberglass Weatherproof Vented NEMA Enclosure with Slanted Rack Frame, Cable Management Raceway, Dual Cooling Fans, 120V Outlets & Power Cord

Best For

The Altelix NF162012VMFA1C-R2SU is a space saving 19" wide equipment rack enclosure with a slanted rack frame and cable management raceway, designed to hold rack mount equipment up to 12 inches deep in a rack only 9 inches deep.

Why Choose the NF162012VMFA1C-R2SU?

The unique 19" wide equipment rack frame has two 1U slanted sections for 12" deep equipment and one horizontal 2U section for equipment up to 6" deep. A separate location is provided for the 1U cable management raceway included with the enclosure.

The enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment.

Key Benefits

• Space saving rack frame fits equipment up to 12 inches deep in a rack only 9 inches deep.
• Constructed from heavy duty powder coated steel with vented side panels for maximum air flow around equipment.
• Zip tie mounting points throughout the rack frame for cable management, plus a 1U cable management raceway included.
• No wiring required: plug the pre-wired 5 foot power cord into a nearby outlet.
• Four pre-wired 120VAC power outlets.
• Dual 4" vents and dual thermostat controlled cooling fans; fans turn on at 100°F (38°C) and off at 79°F (26°C).

Who Should Buy the NF162012VMFA1C-R2SU?

This enclosure is for anyone who needs to mount deeper rack equipment in a compact space, with built-in cooling, power outlets and cable management.

Space Saving 19" Wide Equipment Rack with Cable Management Raceway

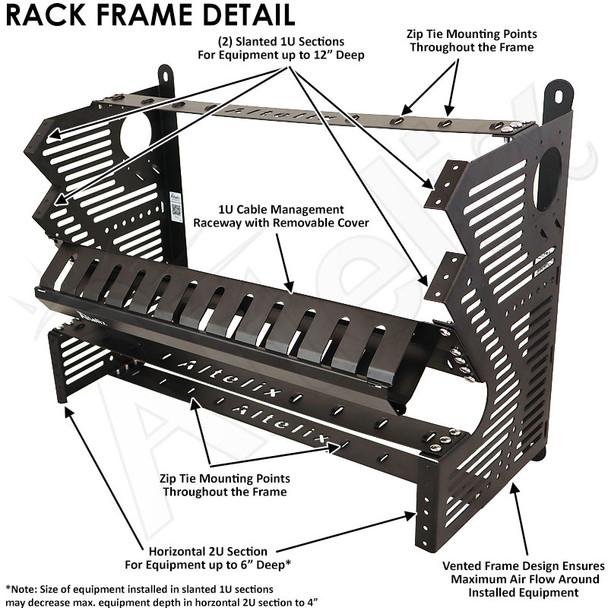

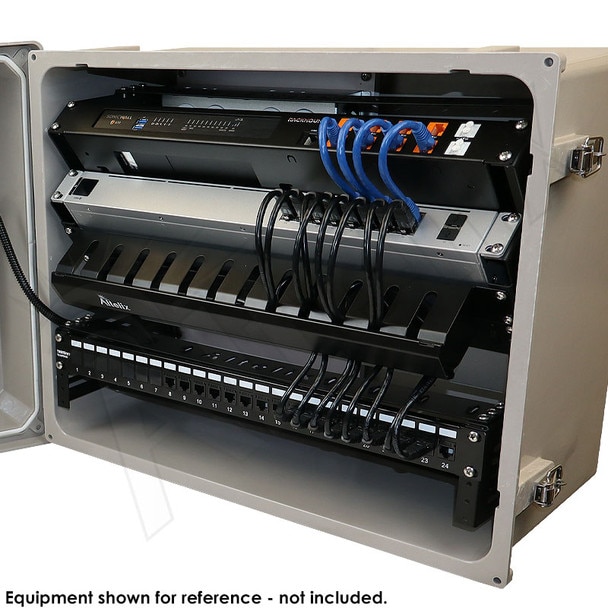

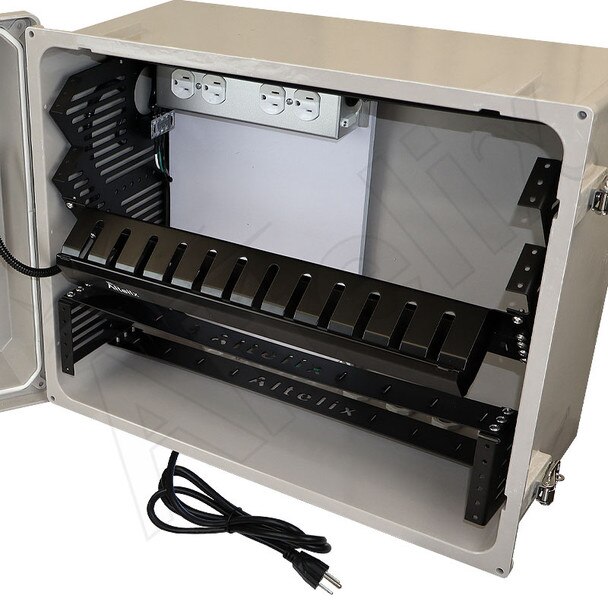

The 19" wide equipment rack frame is designed to accommodate rack mount equipment up to 12 inches deep in a rack only 9 inches deep. Two 1U slanted sections are provided for 12" deep equipment, as well as one horizontal 2U section for equipment up to 6" deep. The rack frame is constructed from heavy duty powder coated steel, with zip tie mounting points throughout for cable management and vented side panels for maximum air flow around installed equipment. In addition to the slanted 1U and horizontal 2U locations, a separate location is provided for the 1U cable management raceway included with the enclosure. Four cable glands are provided on the bottom of the enclosure for cables.

Installation Note: Size of equipment installed in the slanted 1U sections may decrease max. equipment depth in horizontal 2U section to 4" deep.

Dual Cooling Fans Ventilation

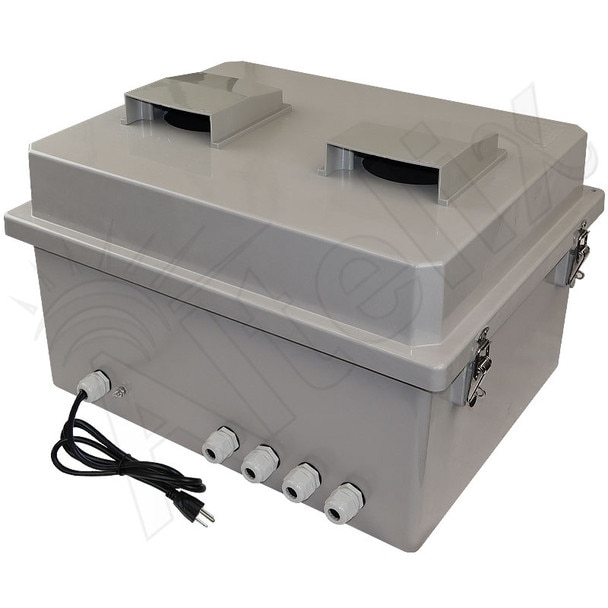

This enclosure features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by providing air flow through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turn off when it drops to 79°F (26°C). Both fans are wired internally, so they do not require the use of the AC outlets, leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Cable Glands

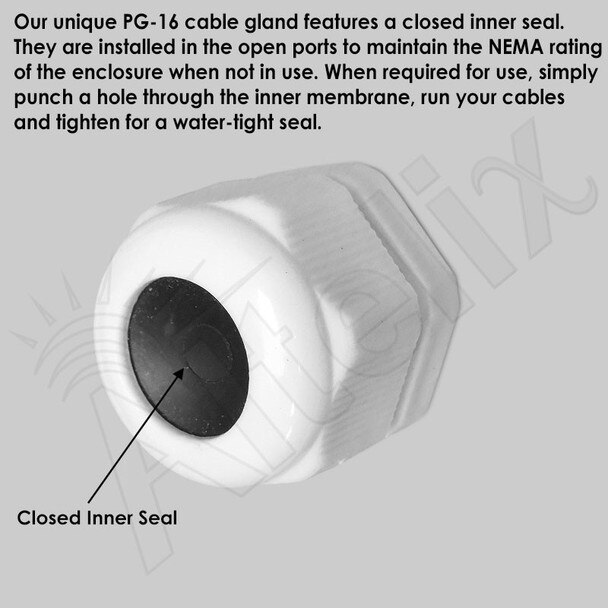

The enclosure features (4) unique PG-16 cable glands with a closed inner seal, installed in the open ports to maintain the NEMA rating when not in use. When required, punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

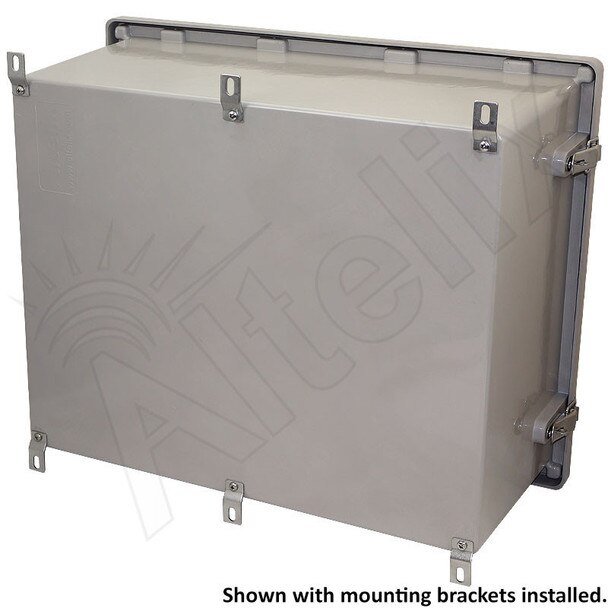

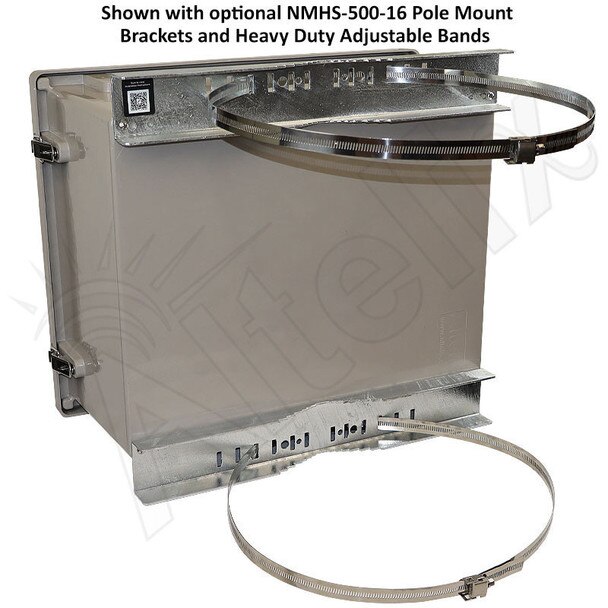

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization

Altelix offers custom enclosures for WiFi equipment, DIN mount industrial controls, telephone call boxes, IP phones, security and safety, building automation and more. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans and heaters, plus full customization, engineering and on-site CNC machining, all with quick turnaround time. Please contact us with your unique requirements.
