Altelix NF162012V-R2SU - 16x20x12 Space Saver 19" Wide Vented Equipment Rack Enclosure - Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide Slanted Rack Frame and Cable Management Raceway

Brand: Altelix
P\N: NF162012V-R2SU

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Altelix 16x20x12 Space Saver 19" Wide Vented Equipment Rack Enclosure - Fiberglass Weatherproof Vented NEMA Enclosure with 19" Wide Slanted Rack Frame and Cable Management Raceway

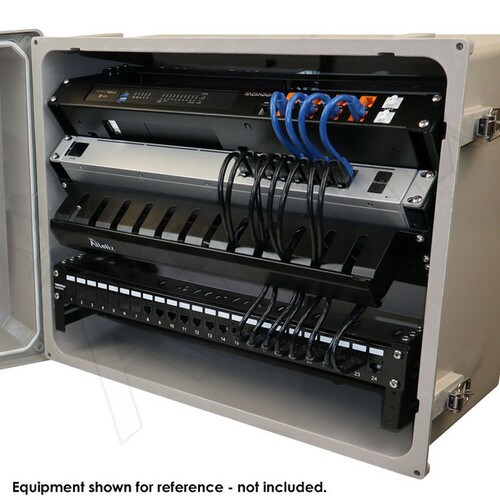

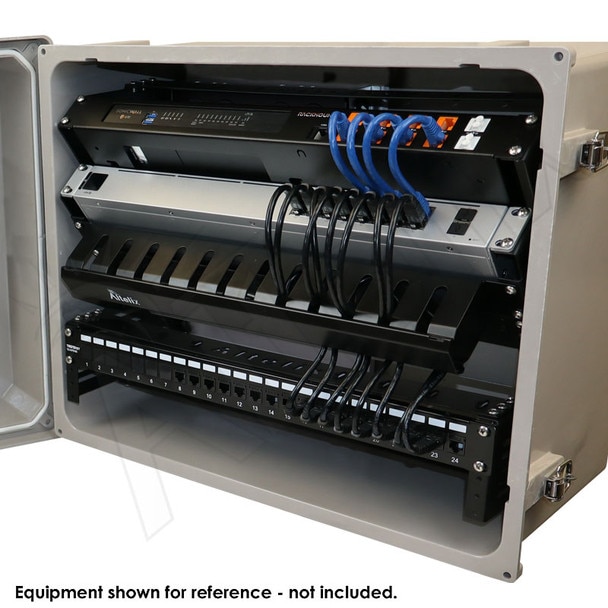

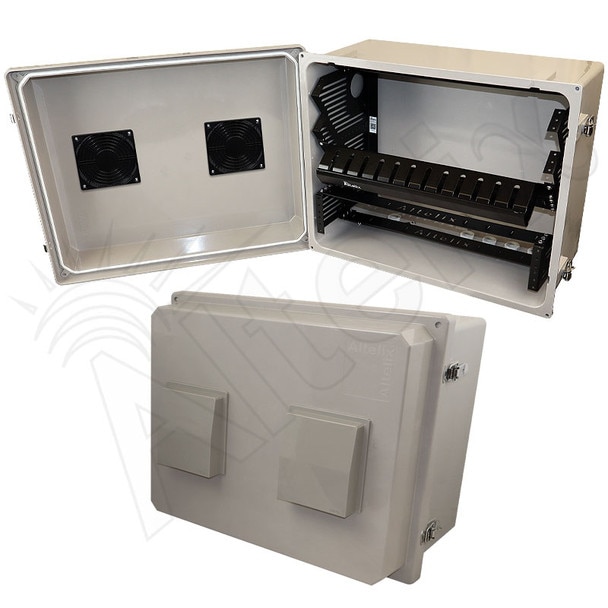

Space Saving 19" Wide Equipment Rack with Cable Management Raceway

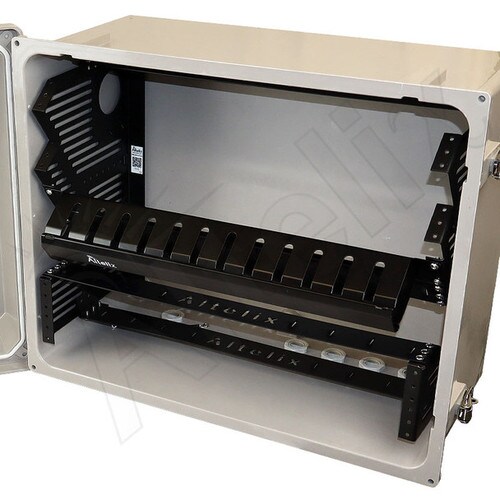

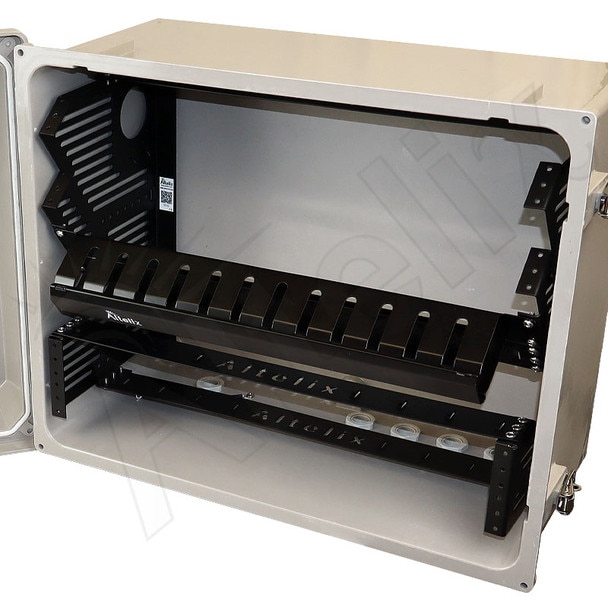

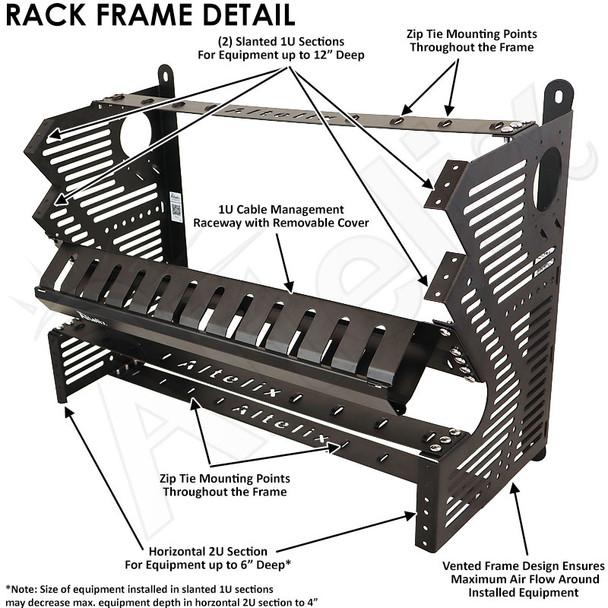

The NF162012V-R2SU features a unique 19" wide equipment rack frame designed to accommodate rack mount equipment up to 12” inches deep in a rack only 9” inches deep. Two 1U slanted sections are provided for 12” deep equipment as well as one horizontal 2U section for equipment up to 6” inches* deep. Constructed from heavy duty powder coated steel, additional features included zip tie mounting points throughout the rack frame for cable management and vented side panels ensure maximum air flow around installed equipment. In addition to the slanted 1U and horizontal 2U locations, a separate location is provided for the 1U cable management raceway included with the enclosure. Four cable glands are provided on the bottom of the enclosure for cables.

*Installation Note: Size of equipment installed in the slanted 1U sections may decrease max. equipment depth in horizontal 2U section to 4" inches deep.

Enclosure Ventilation

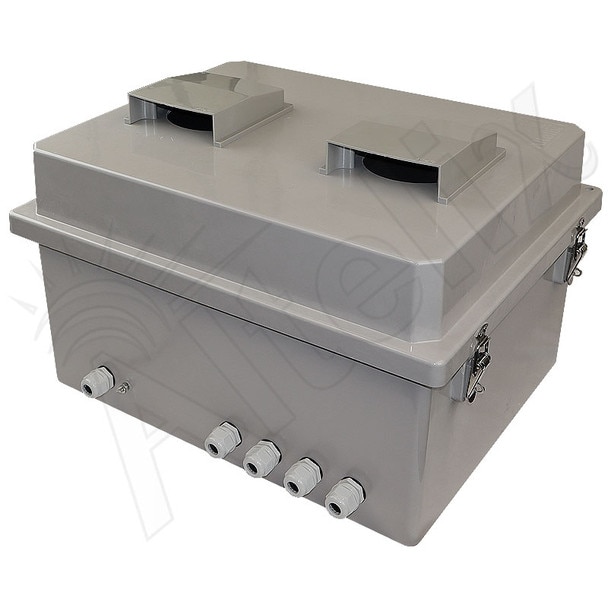

This enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Cable Glands

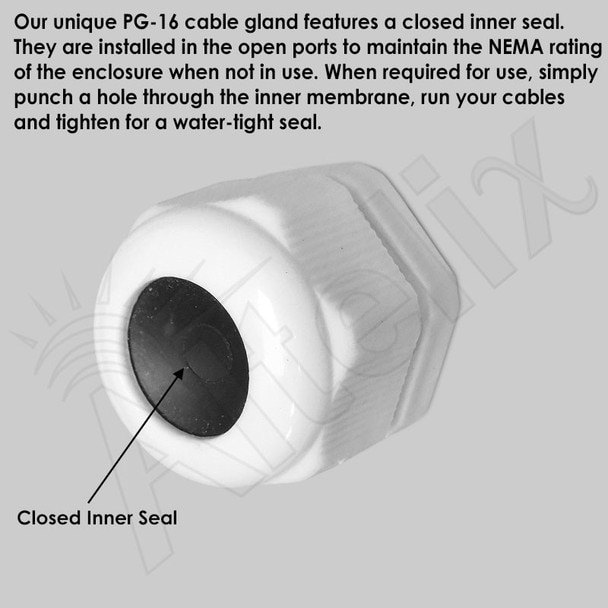

The enclosure features (4) of our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

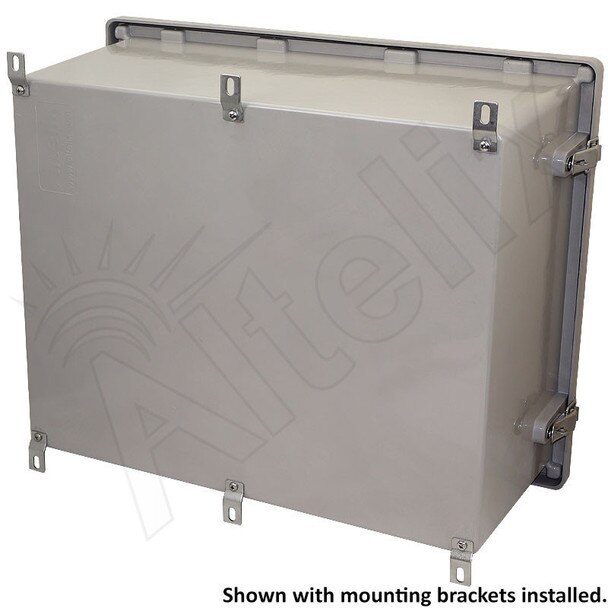

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

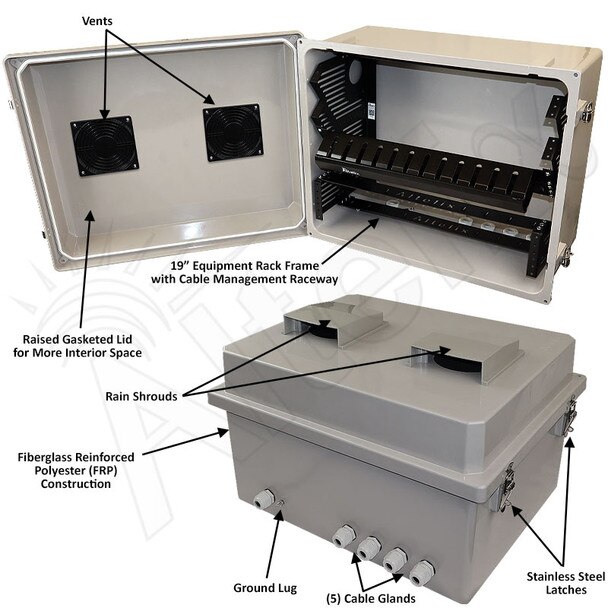

Features

Features

Space Saving Design! Ideal in Locations Where Depth Is Limited.
Features a 19" Wide Equipment Rack Frame with (2) 1U Slanted Sections and (1) 2U Horizontal Section
Includes 1U Cable Management Raceway
(2) 4" Vents with Rain Shields and Screens
Extra Deep Gasketed Lid for Increased Equipment Clearance
Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
Stainless Steel Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
NEMA Type 3R, 3RX / IP24 Rated
Includes Cable Glands and Stainless Steel Mounting Feet

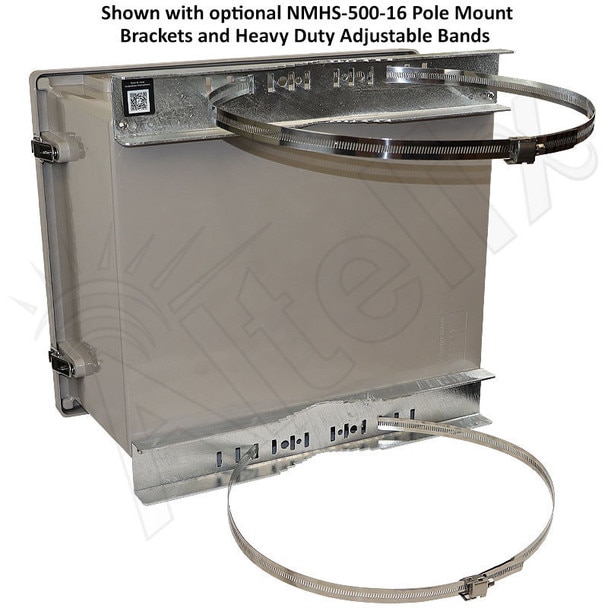

Pole Mounting Kit Available

Applications

19" Rack Mountable Equipment
Indoor / Outdoor Electrical and Electronic Equipment
Rack Mount Audio/Video Equipment
Ethernet Switches
Networking Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage

Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray

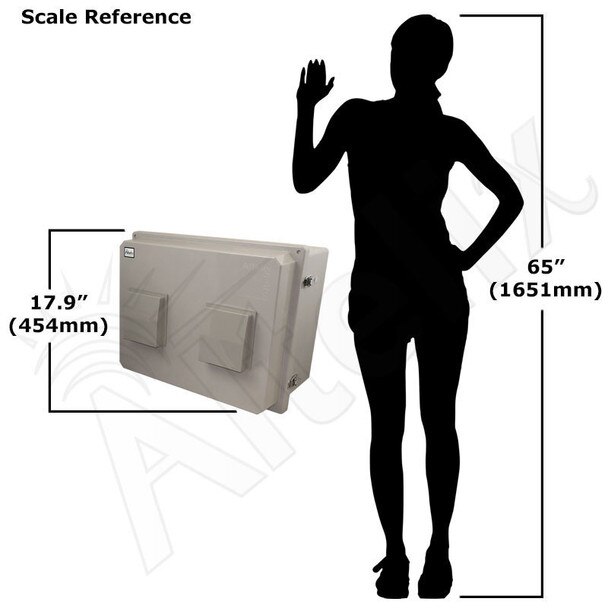

Outer Dimensions	17.9 x 21.8 x 14.3 Inches (454 x 553 x 363 mm)
Inner Dimensions	14.7 x 18.7 x 11.0 Inches (374 x 475 x 279 mm)
Rack Frame	19" Width with (2) Slanted 1U Sections and (1) Horizontal 2U Section
Weight	25.6 lbs. (11.6 kg)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-5V
