Altelix NP171407P - 17x14x07 Polycarbonate + ABS NEMA 4X Enclosure with Aluminum Equipment Mounting Plate
- Brand: Altelix
- P\N: NP171407P
Description
Altelix NP171407P 17x14x07 Polycarbonate + ABS NEMA 4X Enclosure
Best For
The Altelix NP171407P NEMA 4X enclosure is ideal for protecting devices from harsh environments and tampering.
Why Choose the NP171407P?
With the generous size of this enclosure the NP171407P can accommodate a wide range of equipment.
Key Benefits
- With the generous size of this enclosure the NP171407P can accommodate a wide range of equipment

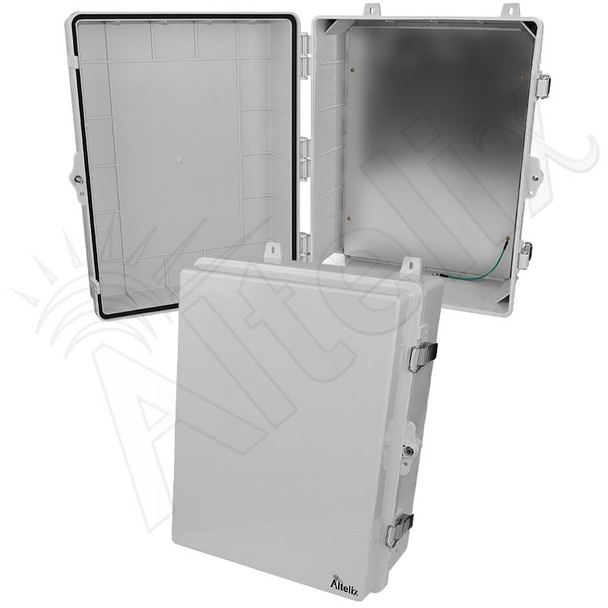

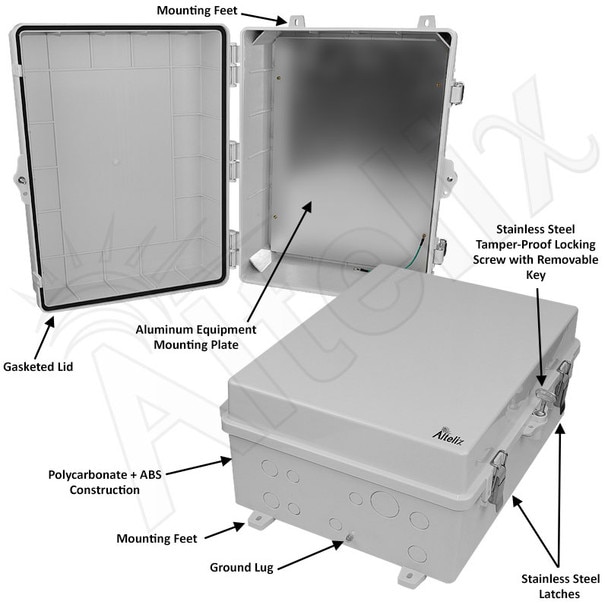

- Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment
- The plate can be easily drilled and modified by the installer to suit unique site requirements
- Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP171407M) and without an equipment mounting plate (see NP171407)

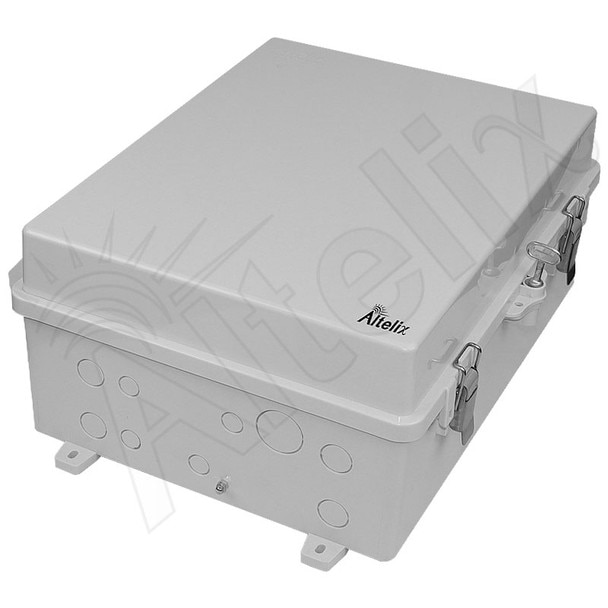

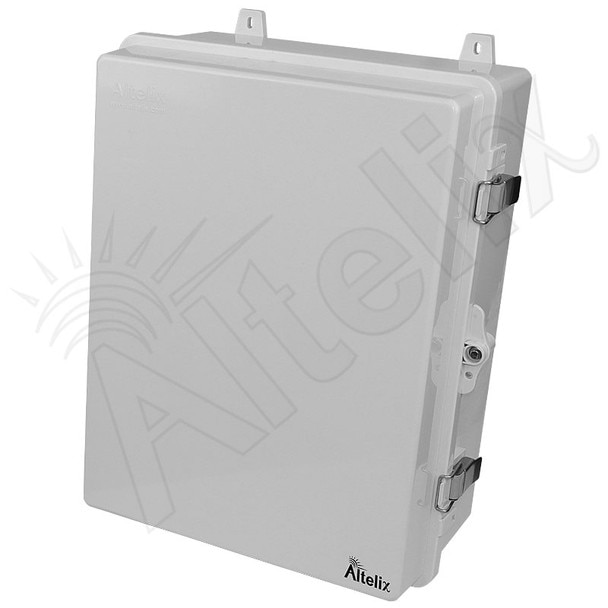

- These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches
Who Should Buy the NP171407P?
Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Complete with Cable Grommets and Wire Management Accessories

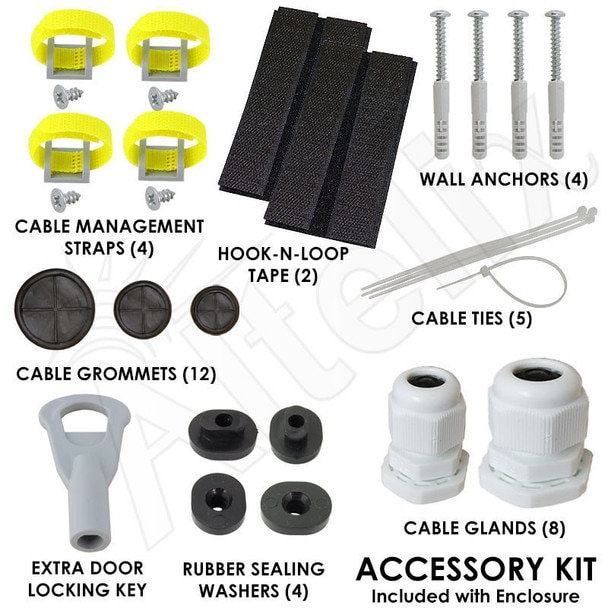

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options

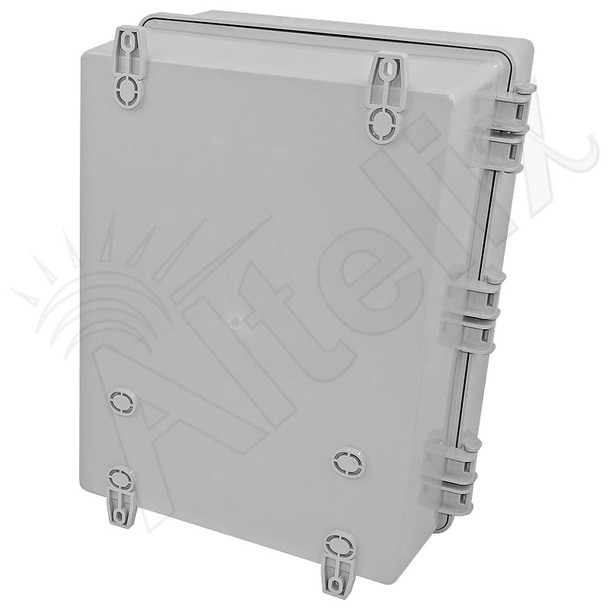

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Features
Features
| Applications
|
Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |
| Color | Gray |
| Outer Dimensions (Height x Width x Depth) | 17.1 x 13.6 x 7.3 Inches (435 x 347 x 184 mm) |
| Inner Dimensions* (Height x Width x Depth) | 14 x 9 x 6.2 inches (355 x 228 x 157 mm) |
| Mounting Plate Material | 0.06 in. (1.5 mm) Aluminum |
| Mounting Plate Dimensions | 14.5 x 10.6 in. (368 x 269 mm) |
| Weight | 5.4 lbs. (2.5 kg) |
| Ratings | Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 |
| Flame Rating | Meets UL94-V0 |
| Industry Certifications | CE |
| Knockout Sizes (Diameter) | (4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
| *Interior dimensions represent maximum space available for equipment. |
