Altelix NP171407A1C - 17x14x07 Polycarbonate + ABS NEMA 4X RF Transparent Outdoor WiFi Enclosure with 120 VAC Outlets & Power Cord

Brand: Altelix
P\N: NP171407A1C

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

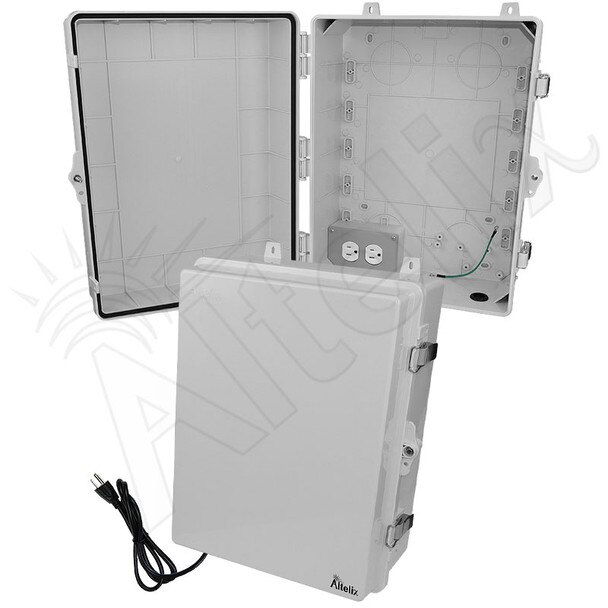

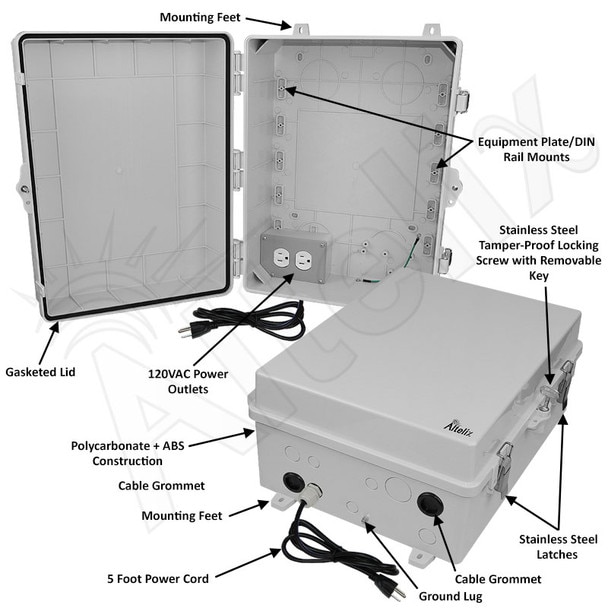

Altelix 17x14x7 Polycarbonate + ABS NEMA 4X RF Transparent Outdoor WiFi Enclosure with 120 VAC Outlets & Power Cord

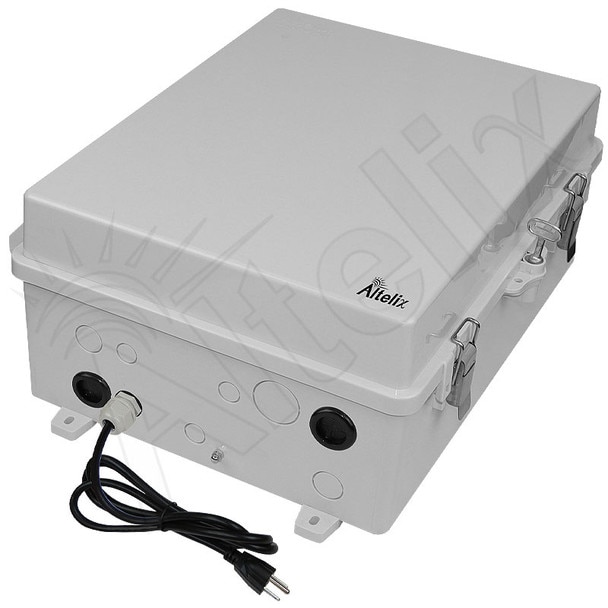

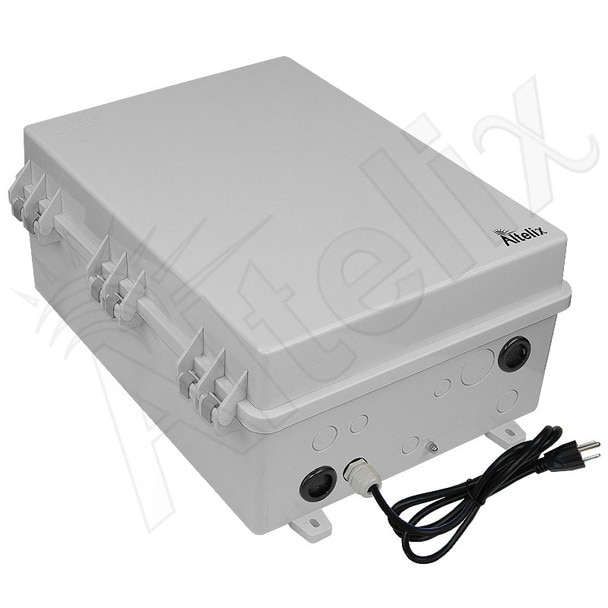

The Altelix NP171407A1C NEMA 4X enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Equipment Mounting Options
This enclosure provides multiple ways to install equipment. Raised bosses located in the base of this enclosure can be used to mount an equipment plate. These same bosses can also be used to installed Altelix's 35mm Top Hat DIN Rail kits (sold separately). Up to (4) DIN Rail kits can be installed into the enclosure base. A large flat section in the base is also provided for use with the hook-n-loop tape included in the accessory kit.

Note: this enclosure is also available with an aluminum equipment mounting plate (see NP171407PA1C) or a non-metallic PVC equipment mounting plate (see NP171407MA1C).

RF Transparent Design
The NP171407A1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

Secure Your Equipment

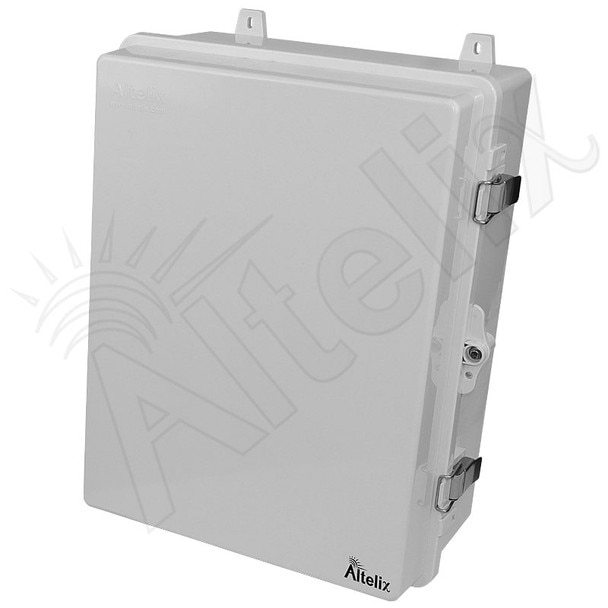

These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Grommets and Wire Management Accessories

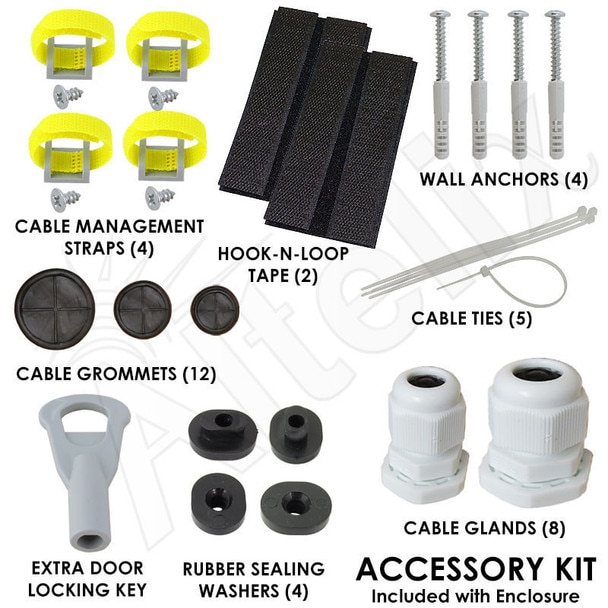

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

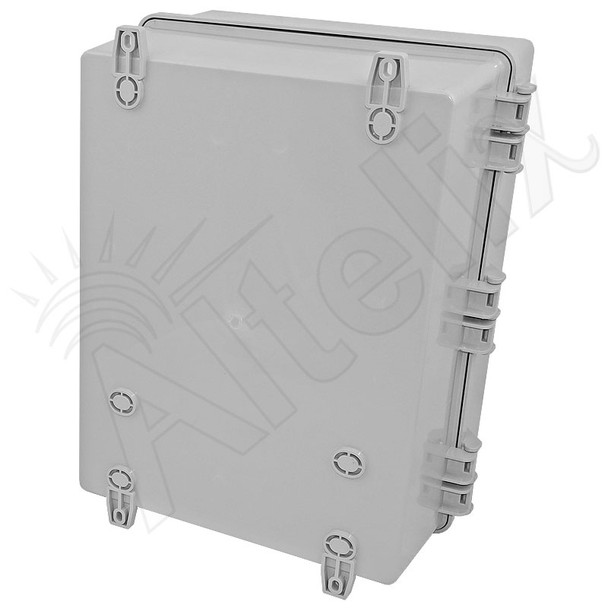

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

Features

Features

New design provides better versatility and security!
No electrical wiring required

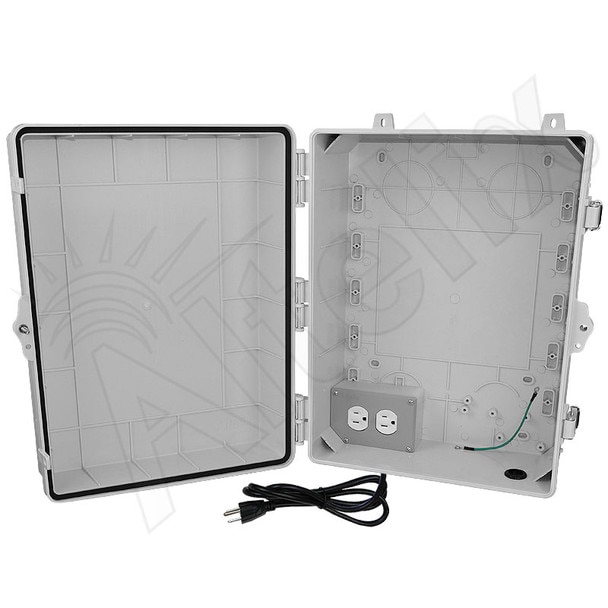

(2) Internal pre-wired 120VAC power outlets
Pre-wired 5 foot 3-prong power cord
Raised mounting bosses in base for use with equipment mounting plates and DIN rail kits
Durable Polycarbonate + ABS construction
Weatherproof and UV Stable
Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Gasketed lid with dual stainless steel latches
Tamper-Proof locking screw with key and provision for padlock
Can be mounted using external mounting feet or internal mounting feet
RF transparent for wireless devices
Multiple size knock-out holes on bottom of enclosure
Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
Optional pole mount kits available

Applications

Indoor / Outdoor WiFi access points and routers
Multi purpose utility box
Home automation
WiFi, LoRa and RFID gear
Security and surveillance systems
LED controllers
IoT devices
Network switches
Media converters
Cable TV and CCTV amplifiers
Broadband equipment
SCADA remote terminal
Outdoor weather protection
Protection against theft or damage
Warehouses and public areas
Concealment of equipment

Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Outer Dimensions (Height x Width x Depth)	17.1 x 13.6 x 7.3 Inches (435 x 347 x 184 mm)
Inner Dimensions* (Height x Width x Depth)	11.8 x 9 x 6.3 inches (299 x 228 x 160 mm)
Weight	6.2 lbs. (2.8 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)
