Altelix NP171406P-DIN - 17x14x6 PC + ABS Weatherproof DIN Rail NEMA Enclosure with Hinged Door

Altelix NP171406P-DIN 17x14x6 PC + ABS Weatherproof DIN Rail NEMA Enclosure with Hinged Door

Best For

The Altelix NP171406P-DIN PC+ABS DIN Rail NEMA Enclosure is an industrial quality weatherproof NEMA enclosure designed to offer extreme protection for DIN rail mount electronic devices outdoors and in harsh environments.

Why Choose the NP171406P-DIN?

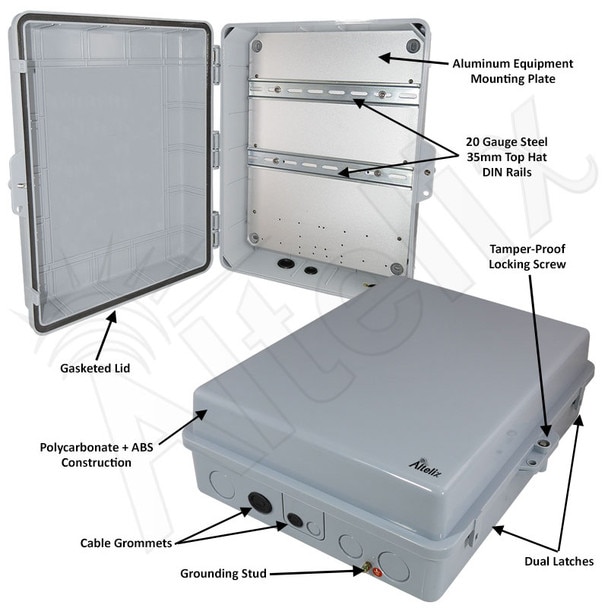

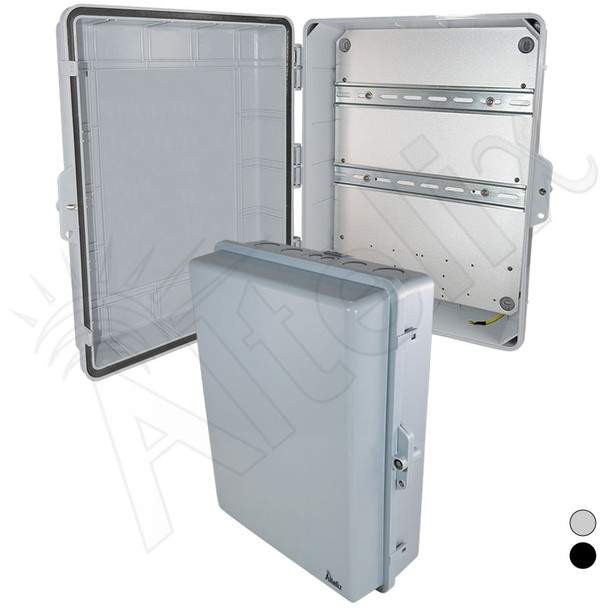

This enclosure includes a 2.0mm thick finished aluminum equipment mounting plate and two steel 35mm Top Hat DIN rails. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. It meets or exceeds NEMA Type 3, 3X and IEC IP55.

Key Benefits

• Includes 2.0mm thick Finished Aluminum Equipment Mounting Plate
• Includes 2 Steel 35mm DIN Rails
• Meets NEMA Type 3, 3X and IEC IP55
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS
• Available in Gray and Black
• RF Transparent Enclosure
• Gasketed Lid with Dual Latches
• Tamper-Proof Locking Screw with Key and Provision for Padlock
• Includes Wall Mounting Hardware, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire

Who Should Buy the NP171406P-DIN?

Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.

Complete with Cable Grommets and Wire Management Accessories

This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and DIN rail mounting screws.

Pole Mount Available

An optional pole mounting kit is also available for this enclosure.

Applications

• Solar Equipment
• IoT Devices
• DIN Rail Mounted Network Switches
• DIN Rail Terminal Strips
• DIN Rail Relay Box
• Home Automation
• Industrial Controls
• Security and Surveillance Equipment
• Multi Purpose DIN Rail Enclosure Box
• Outdoor Weather Protection
• Protection Against Theft or Damage
• Warehouses and Public Areas
• Concealment of Equipment
