Altelix NP171406-PKIT - 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit

Altelix NP171406-PKIT 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit

Best For

The Altelix NP171406-PKIT is an industrial quality general purpose weatherproof utility box designed for mounting to poles and posts.

Why Choose the NP171406-PKIT?

It features our NP1171406 PC+ABS Plastic Utility Enclosure and our NMKG-283-08 pole mounting kit.

Key Benefits

• Includes (2) Galvanized Steel Pole Mount Brackets and (2) Stainless Steel Bands
• Meets NEMA Type 3, 3X and IEC IP55
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS
• Available in Gray and Black
• RF Transparent for Wireless Devices
• Gasketed Lid with Dual Latches
• Tamper-Proof Locking Screw with Key and Provision for Padlock
• Includes Cable Glands, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
• Knock-Out Holes on Top & Bottom

Who Should Buy the NP171406-PKIT?

Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.

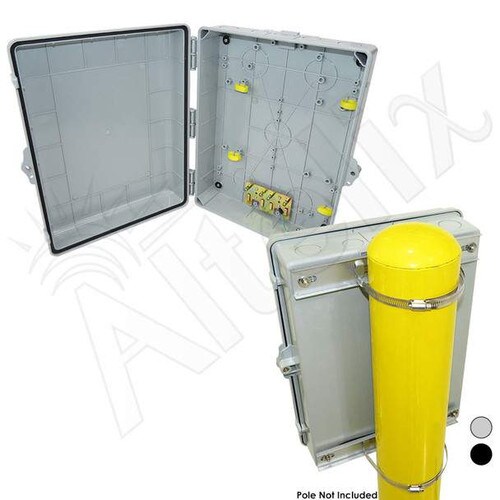

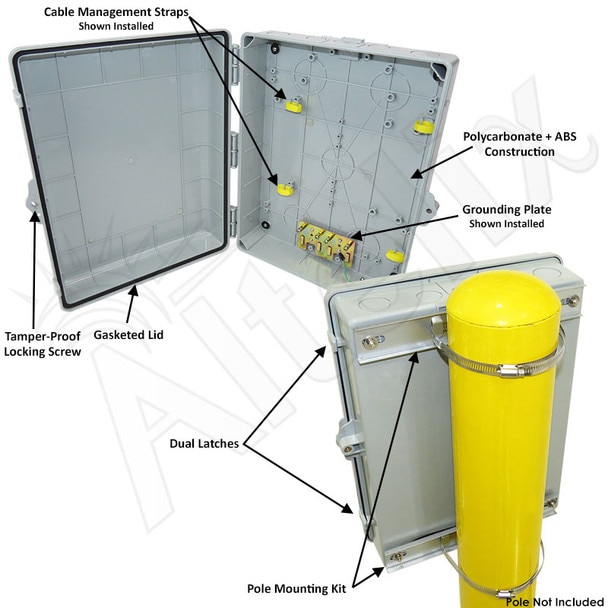

Construction and Features

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

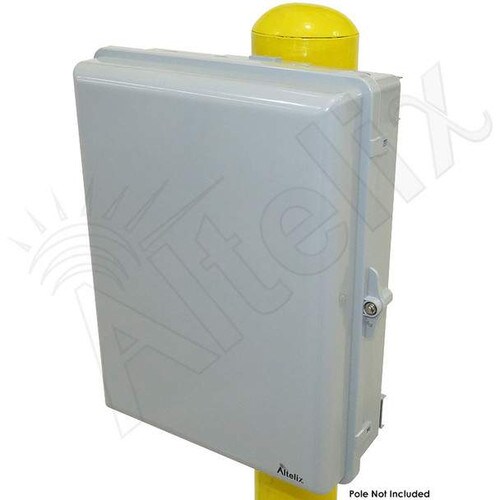

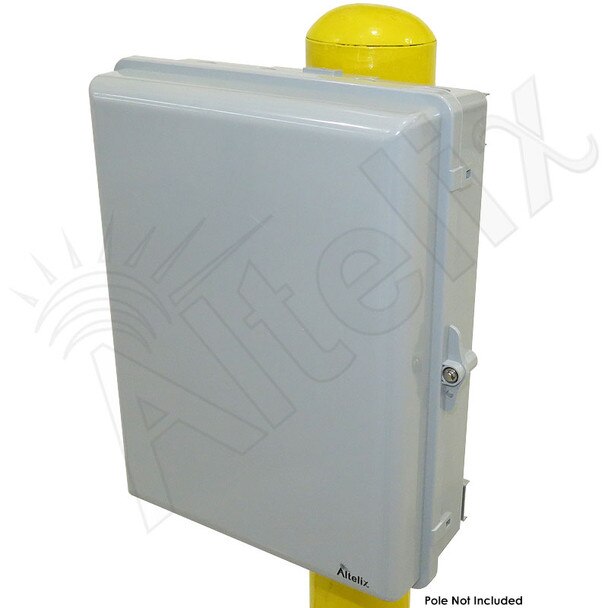

Pole Mounting

The included Pole Mount Kit features (2) galvanized steel brackets and (2) stainless steel adjustable bands that accommodate poles up to 7.6 inches in diameter. For larger diameter poles, such as utility poles, longer bands can be used.

Complete with Cable Glands and Wire Management Accessories

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Cable Glands

The enclosure includes (2) unique cable glands with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Applications

• Pole and Post Mounting
• Multi Purpose Plastic Utility Box
• Data Wiring and Fiber Optic
• Cable TV Connections
• Broadband Equipment
• Low Voltage Wiring Junction Box
• Solar Equipment
• Outdoor Speaker Wiring
• LED Controllers
• IoT Devices
• WiFi and RFID Gear
• Security and Surveillance Systems
• Outdoor Weather Protection
• Protection Against Theft or Damage
• Warehouses and Public Areas
• Concealment of Equipment
