Altelix NP171406VA1C-GFI - 17x14x6 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC GFCI Outlets & Power Cord
- Brand: Altelix
- P\N: NP171406VA1C-GFI
Do you have questions?
Please contact our experts for assistance.
Description

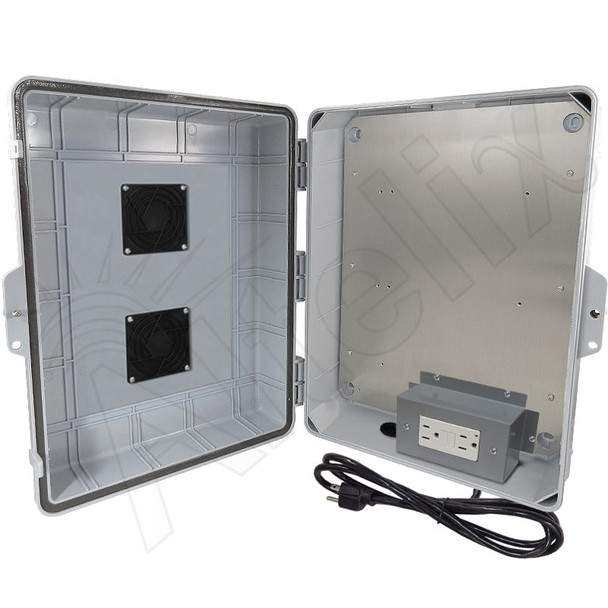

The Altelix NP171406VA1C-GFI Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.
PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.
Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with 120VAC GFCI power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The encosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.
120VAC GFCI Protected Outlet
The NP171406VA1C-GFI features a Ground Fault Circuit Interrupter (GFCI) outlet. Like a circuit breaker, this outlet shuts off electric power when it senses an imbalance between the outgoing and incoming current. They are ideal in locations where water may be present since they provide an extra level of protection from electrical shock. Test and reset buttons are provided on the outlet.
Ventilation
This enclosure features two 3.5 inch air vents with a fan mounting ring. The fan mounting ring is for use with standard 80mm fans. Rain shields help prevent rain water from entering the enclosure.
Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

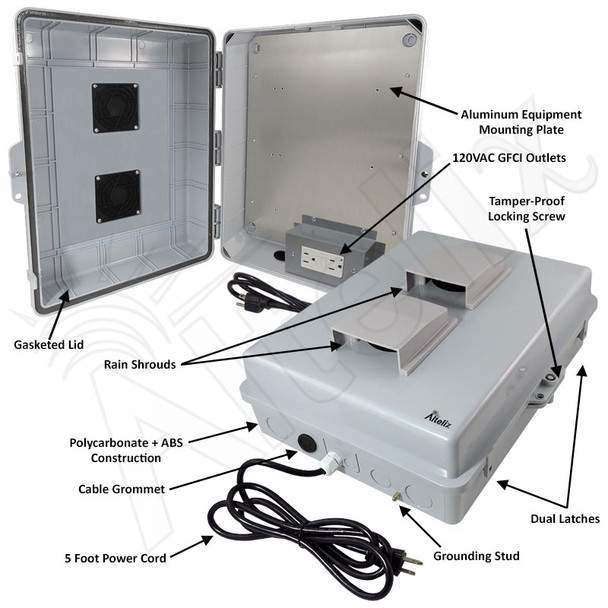

Features
- GFCI Protected 120VAC Outlet
- Pre-wired 5 foot power cord
- Dual 3.5" Vents with Rain Shields to Expel Heat
- ABS + Polycarbonate Enclosure

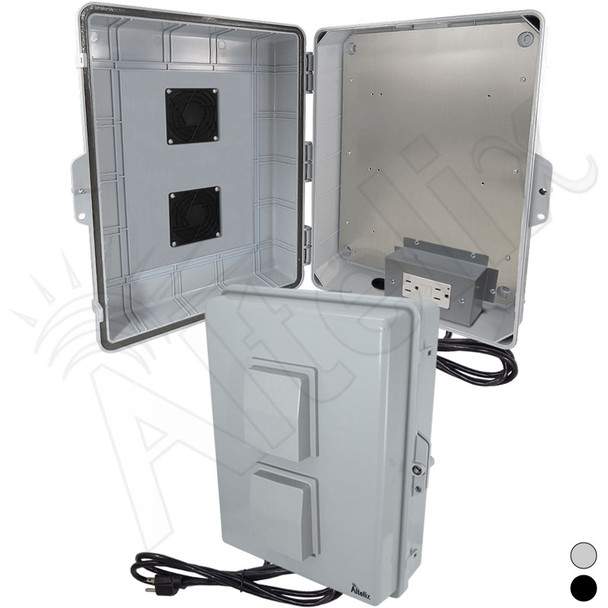

- Available in Gray and Black
- Gasketed Lid with Tamper-Proof Locking Screw
- Dual Door Latches
- Aluminum Equipment Mounting Plate
- NEMA Type 3R, 3RX / IP24 Rated
- Includes Wall Mount Hardware and Cable Grommets
Applications
- Indoor / Outdoor WiFi Equipment
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Concealment of Electronic Equipment
