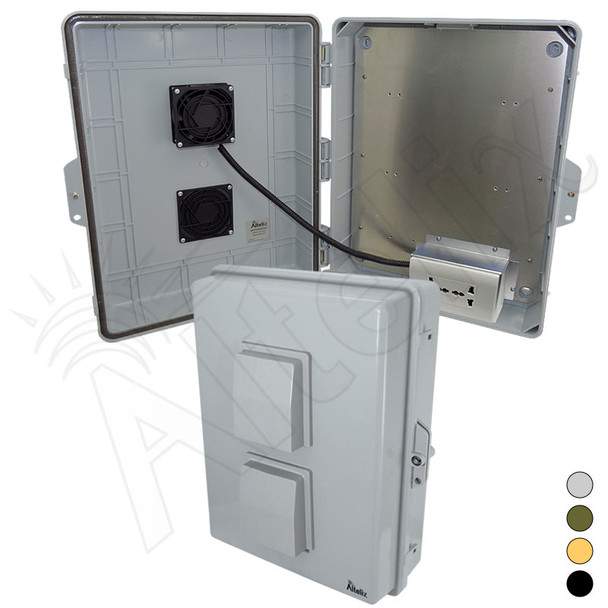

Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet & Cooling Fan

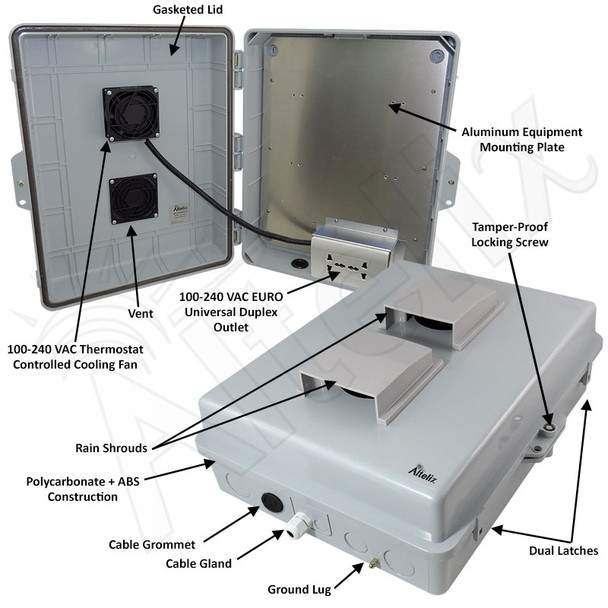

The Altelix NP171406VFAU Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 100-240VAC Universal Power Outlet and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Power
This enclosure features a 100-240VAC universal power outlet supporting multiple international power standards outside the USA.:

• 110VAC 50/60Hz
• 115VAC 50/60Hz
• 220VAC 50/60Hz
• 230VAC 50/60Hz
• 240VAC 50/60Hz

Universal Power Outlet

The universal 100-240 VAC power outlet is compatible with the following plug types:

• UK/Ireland BS 1363
• Italy CEI 23-16/VII
• Denmark Afsnit 107-2-D1
• Euro plug (2-pin) CEE 7/16
• Australia Type I
• India BS 546

For the following plugs types, please refer to the safety notes in the Technical Specs:

• Swiss (2-pin) SEV 1011
• Israel SI 32
• North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
• Continental Europe (Schuko) CEE 7
• France/Belgium CEE 7

A ground lug is provided and one cable gland for the AC supply. Knock-outs are provided on the enclosure for additional wiring. Cable grommets are included with the accessory kit.

Cooling Fan Ventilation
The NP171406VFAU features dual 3" vents and a thermostat controlled 100-240VAC cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Features

• Dual 3" Vents and Thermostat Controlled 100-240VAC Cooling Fan
• Universal 100-240VAC Duplex Outlets
• PC+ABS Polycarbonate / ABS Blend
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Aluminum Equipment Mounting Plate
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Wall Mount Hardware and Cable Grommets

Applications

• Worldwide Operation
• Indoor / Outdoor WiFi Equipment
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
• Concealment of Electronic Equipment
