Altelix DCL35-A020 - 20mm Wide Aluminum DIN Rail Mounting Clip for 35mm Top Hat Rail
- Brand: Altelix
- P\N: DCL35-A020
Live Chat
Contact Us
Description
Altelix DCL35-A020 20mm Wide Aluminum DIN Rail Mounting Clip for 35mm Top Hat Rail
Best For
The Altelix DCL35-A020 20mm Wide Aluminum DIN Rail Mounting Clip is designed for mounting non-DIN rail devices to 35mm Top Hat DIN rail.
Why Choose the DCL35-A020?

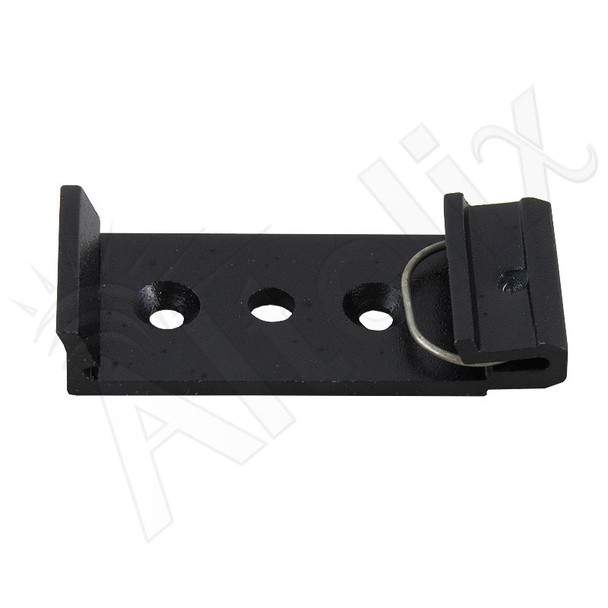

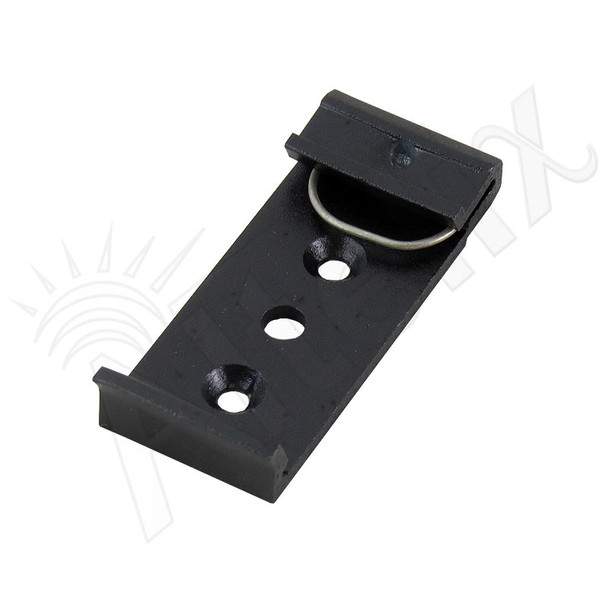

This DIN Clip is made from extruded aluminum with a black anodized finish. It features a steel retention spring and several mounting holes for attaching to equipment.
Key Benefits
- DIN Rail Type: 35mm Top Hat Rail
- Dimensions (Height x Width x Depth): 1.9 x 0.8 x 0.35 in (48.0 x 20.0 x 9.0 mm)
- Material: Aluminum
- Finish: Black Anodized
- RoHS Compliant: Yes
Who Should Buy the DCL35-A020?
Buyers who need to mount equipment to 35mm top-hat DIN rail and have confirmed the compatible enclosure or equipment listed above.
Specifications
| DIN Rail Type | 35mm Top Hat Rail |
| Dimensions (Height x Width x Depth) | 1.9 x 0.8 x 0.35 in (48.0 x 20.0 x 9.0 mm) |
| Material | Aluminum |
| Finish | Black Anodized |
| RoHS Compliant | Yes |
