Altelix NFC201608VMA1C - 20x16x8 Vented Fiberglass Weatherproof WiFi NEMA Enclosure with Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord

Altelix NFC201608VMA1C 20x16x8 Vented Fiberglass Weatherproof WiFi NEMA Enclosure with Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord

Best For

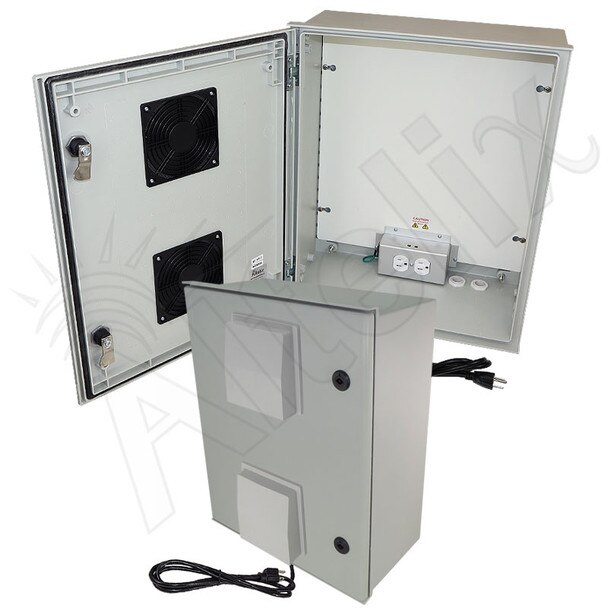

The Altelix NFC201608VMA1C is a 20x16x8 Vented Fiberglass Weatherproof WiFi NEMA Enclosure.

Why Choose the NFC201608VMA1C?

Equipment designed for indoor use can now be located outside.

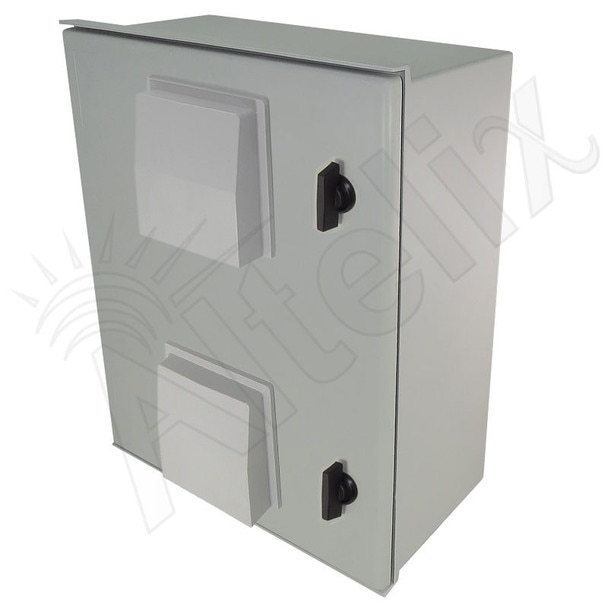

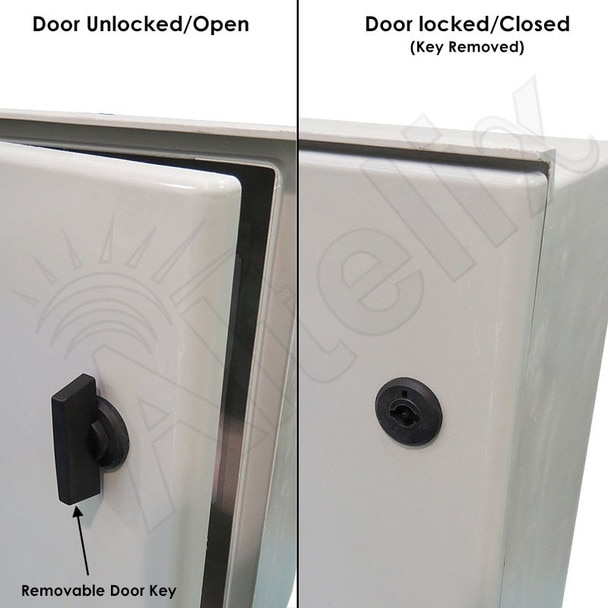

Construction and Features This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Non-Metallic Equipment Plate This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 0.12" (3.0mm) non-metallic polyester plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

RF Transparent Design The NFC201608VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. In addition, mounting radios to polyester equipment mounting plate can be done simply by using self-tapping screws. Due to the large size of this enclosure, multiple wireless points can be mounted inside as well as additional networking equipment.

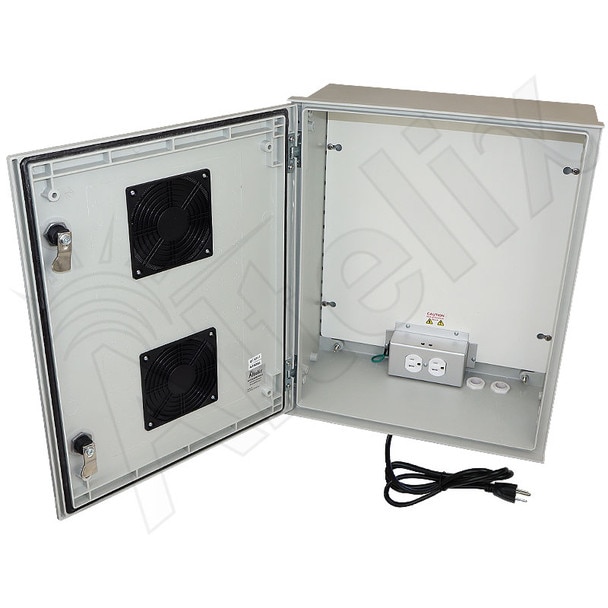

Power This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets.

Plug and Play The NFC201608VMA1C features a 5 foot pre-wired power cord to provide power to the internal 120VAC outlets, so no additional wiring is required. Simply mount the enclosure then plug the power cord into a 120VAC outlet.

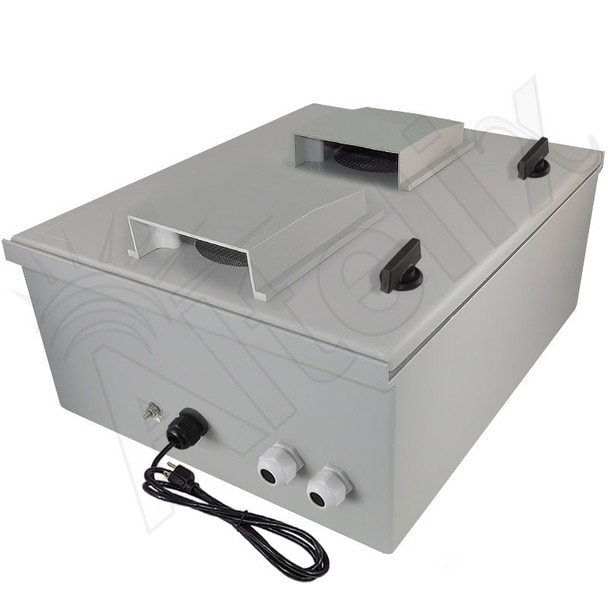

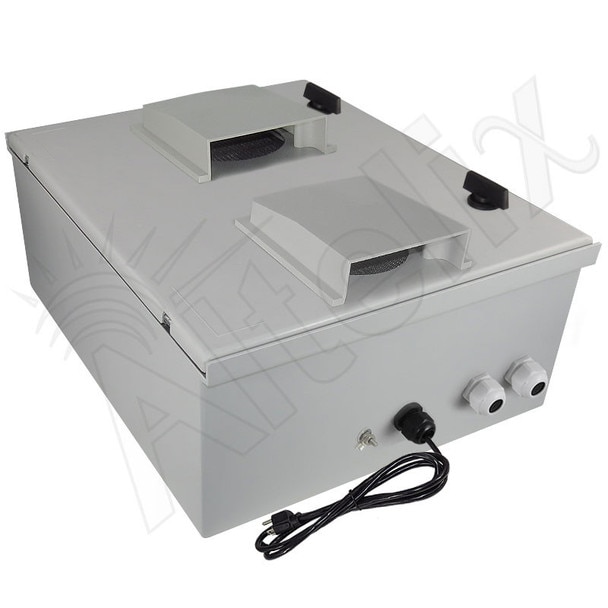

Ventilation To help expel heat from within the enclosure, this model features two 4 inch air vents with cleanable aluminum mesh screens which are covered by rain shields.

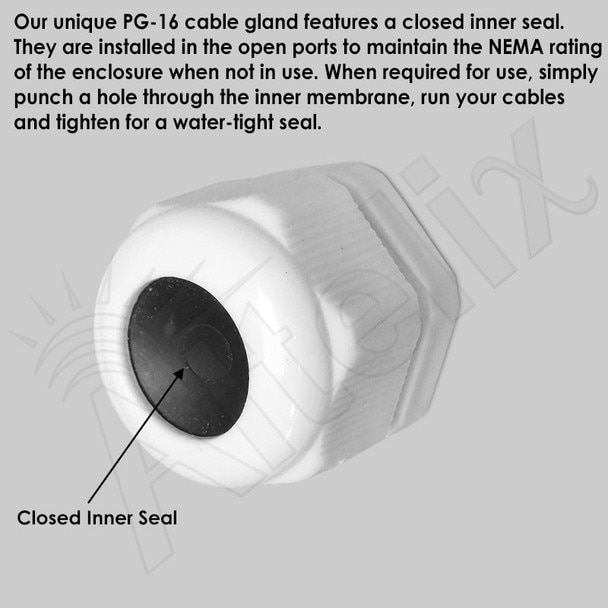

Cable Glands The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Optional flange and pole mounting kits are available for this enclosure, see available accessories when adding to cart.

Optional Lockable Latches For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

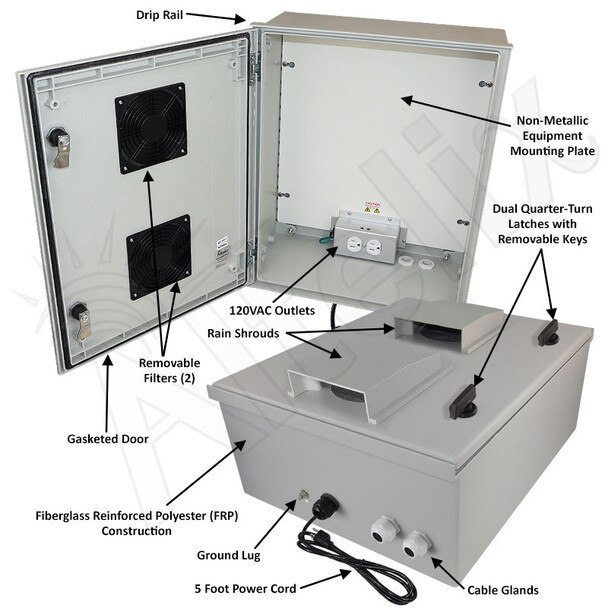

Features

• Dual 4" Vents with Rain Shields to Expel Heat
• Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
• Includes Non-Metallic Polyester Equipment Mounting Plate
• (2) Pre-Wired 120VAC Outlets
• Pre-wired 5 Foot Power Cord
• Dual Quarter-Turn Door Latches
• (4) Mounting Feet Included
• NEMA Type 3R, 3RX / IP24 Rated
• Optional Lockable Latch Sets Available

Applications

• Rapid Deployment Communications
• Emergency Communications Systems
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor Use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
• Battery and Charger Box

Key Benefits

• Two pre-wired 120VAC power outlets.
• Two 4 inch air vents with rain shields help expel heat.
• Fully gasketed door, suitable for indoor or outdoor use.
• Dual quarter-turn latches secure the door.

Who Should Buy the NFC201608VMA1C?

The Altelix NFC201608VMA1C Vented Weatherproof NEMA Enclosure with 120VAC Power and Non-Metallic Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering.
