  • Altelix NS242416VFA1R2C-85-R8U - 24x24x16 Steel Weatherproof NEMA Enclosure with Heavy Duty 19" Wide Adjustable 8U Rack Frame, Single 120 VAC Duplex Outlet, Power Cord & 85°F Turn-On Cooling Fans

Altelix NS242416VFA1R2C-85-R8U - 24x24x16 Steel Weatherproof NEMA Enclosure with Heavy Duty 19" Wide Adjustable 8U Rack Frame, Single 120 VAC Duplex Outlet, Power Cord & 85°F Turn-On Cooling Fans

  • Brand: Altelix
  • P\N: NS242416VFA1R2C-85-R8U
(0)No Reviews yet

Availability: Backorder


Your Price: $1,029.99

Do you have questions?

Please contact our experts for assistance.

Description

Description

Altelix 24x24x16 Steel Weatherproof NEMA Enclosure with Heavy Duty 19" Wide Adjustable 8U Rack Frame, Single 120 VAC Duplex Outlet, Power Cord & 85°F Turn-On Cooling Fans

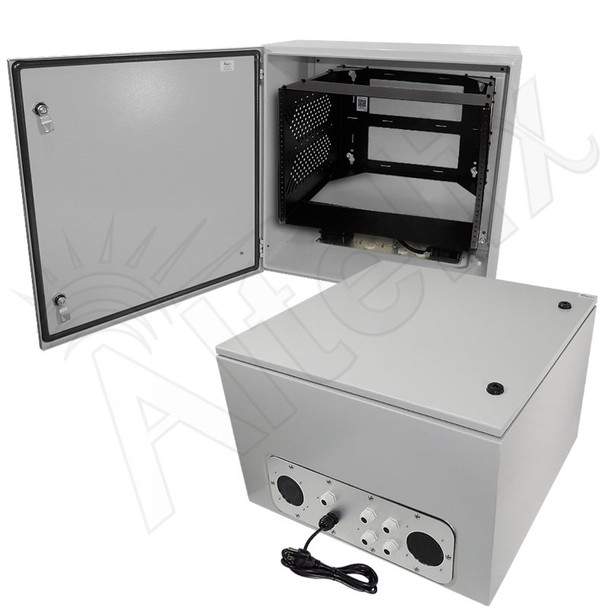

The Altelix NS242416VFA1R2C-85-R8U 19" Rack 8U Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

Construction and Features

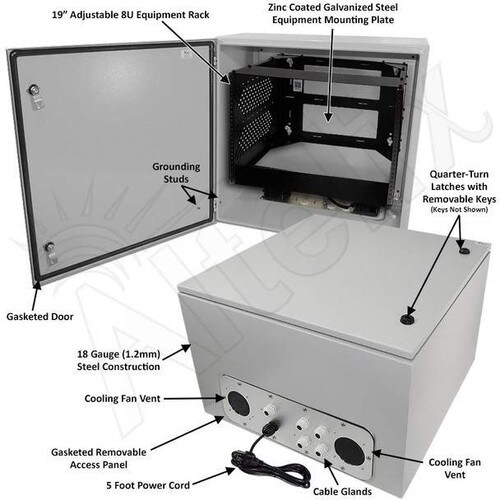

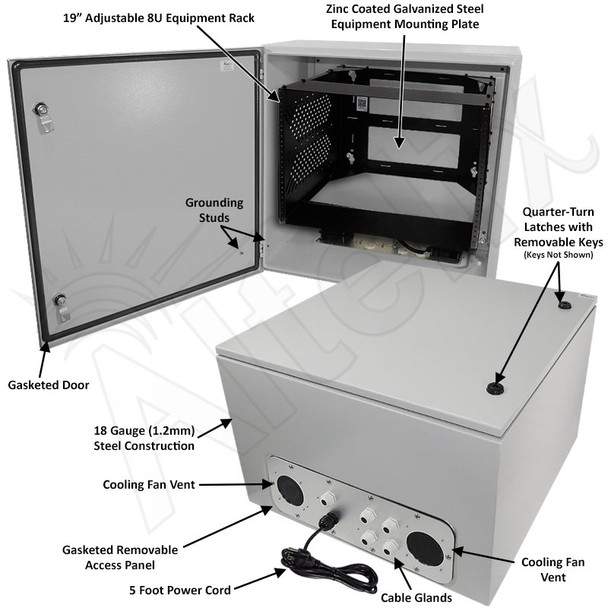

This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.

Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

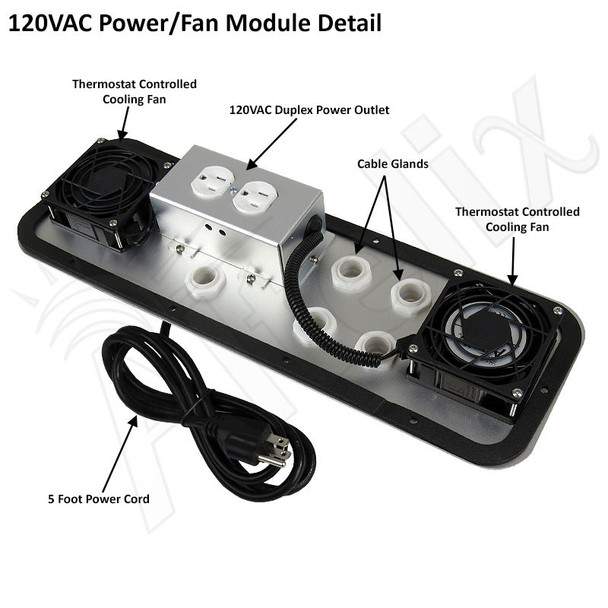

Removable Power and Fan Module
The NS242416VFA1R2C-85-R6U features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features a single pre-wired duplex 120VAC power outlet (2 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

For applications that require additional power outlets, the NS242416VFA1C-85-R8U features two pre-wired duplex power outlets (4 outlets total)..

85°F Turn-On Cooling Fans
The NS242424VFA1R2C-85-R8U is designed for applications which require the cooling fans to turn on at a lower temperature then our standard fan cooled enclosures. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

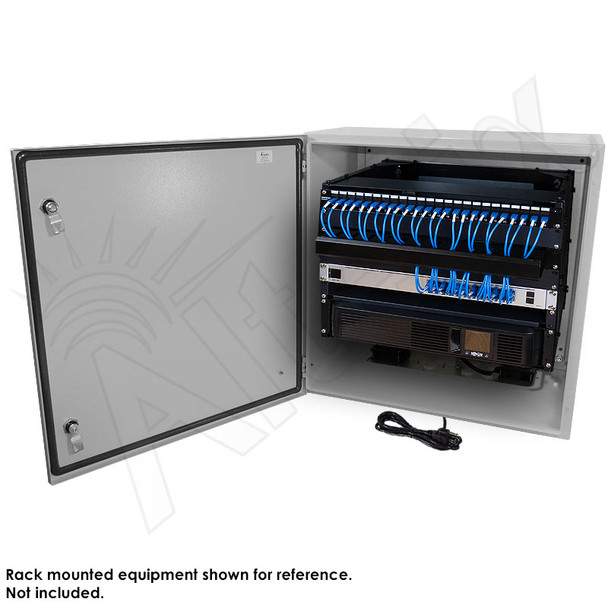

Internal 8U 19" Equipment Rack Frame
The NS242416VFA1R2C-85-R8U features a standard 19" 8U equipment rack frame with adjustable depth. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. Featuring heavy duty powder coated 15 gauge steel construction, the vented design of this 8U rack frame ensures maximum air flow around installed equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: Once installed in the enclosure, this 8U rack has an adjustable depth from 12.3" (313.7mm) to 14" (355.6mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Cable Glands
The enclosure features unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. For pole mounting Altelix has available optional pole mount kits. These heavy-duty kits feature (2) 14 gauge steel mounting brackets and (2) heavy-duty 19 gauge 304 stainless steel adjustable bands which can be used to mount to poles from 4.5" (114.3mm) to 16" (406.4mm) in diameter.

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Features

  • Dual Thermostat Controlled 85°F Turn-On Cooling Fans
  • (2) Pre-Wired 120VAC Outlets and 5 Foot Power Cord
  • Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
  • Includes Heavy Duty Steel 19" 8U Rack Frame with Adjustable Depth
  • Vented Rack Frame Design Ensures Maximum Air Flow Around Installed Equipment
  • Dual quarter-turn door latches with key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • Epoxy polyester textured light gray powder coat finish
  • NEMA Type 3R, 3RX / IP24 Rated

Applications

  • 19" Rack Mountable Equipment
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mountable Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
