Altelix NFC322412VFD1 - 32x24x12 Vented Fiberglass Weatherproof NEMA Enclosure with Dual 12 VDC Cooling Fans

Altelix NFC322412VFD1 12 VDC Powered Fan Cooled NEMA Enclosure

Best For

The Altelix NFC322412VFD1 is a 12 VDC Powered Fan Cooled NEMA Enclosure.

Why Choose the NFC322412VFD1?

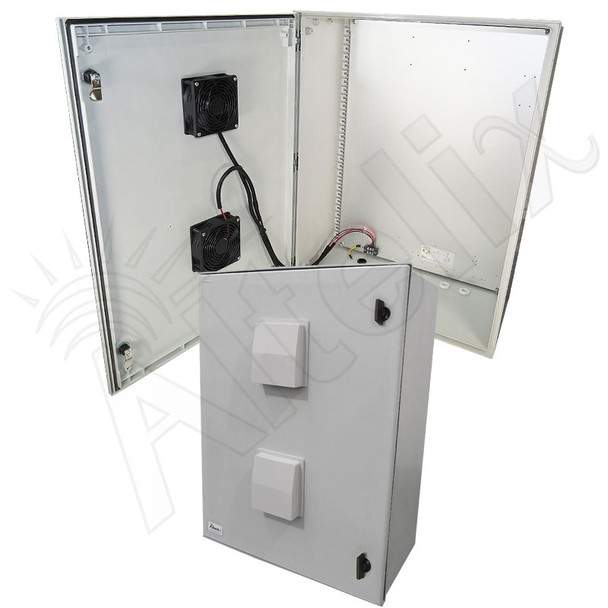

The Altelix NFC322412VFD1 features two 4" vents and two 12VDC thermostat controlled cooling fans which help maintain lower internal temperatures. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

This enclosure can be powered from 12VDC solar and battery power sources, and features a terminal strip for easy wiring.

Key Benefits

• Two (2) 12VDC Thermostat Controlled Cooling Fans
• Two (2) 4" Vents with Rain Shields and Screens
• Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
• Includes Aluminum Equipment Mounting Plate
• Terminal Strip
• Two (2) Quarter-Turn Door Latches with Keys
• (4) Mounting Feet Included
• NEMA Type 3R, 3RX / IP24 Rated
• Optional Lockable Latches Available

Who Should Buy the NFC322412VFD1?

This enclosure is a good fit if you need a 12 VDC Powered Fan Cooled NEMA Enclosure.

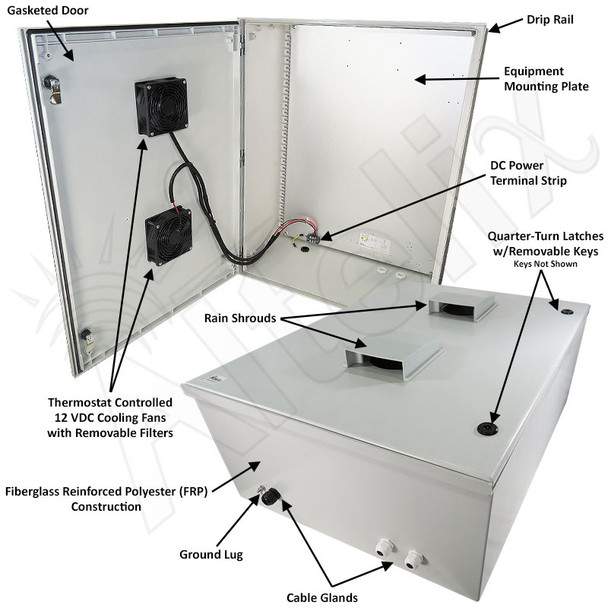

Construction and Features

This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Aluminum Equipment Plate

This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 0.11 inch (3.0 mm) thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Cable Glands

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

Optional Lockable Latches

For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Optional SLA Battery Shelf

The NHP-SLA-01 is an aluminum shelf designed for use with SLA type batteries. The shelf can be easily installed by drilling (4) holes in the equipment mounting plate. A drilling template is provided. The included strap secures the battery firmly on the shelf.

Applications

• Rapid Deployment Systems
• Solar Equipment
• Vehicle Mounted Equipment
• Battery Powered Equipment
• Battery and Charger Box
• Harsh Environments
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
