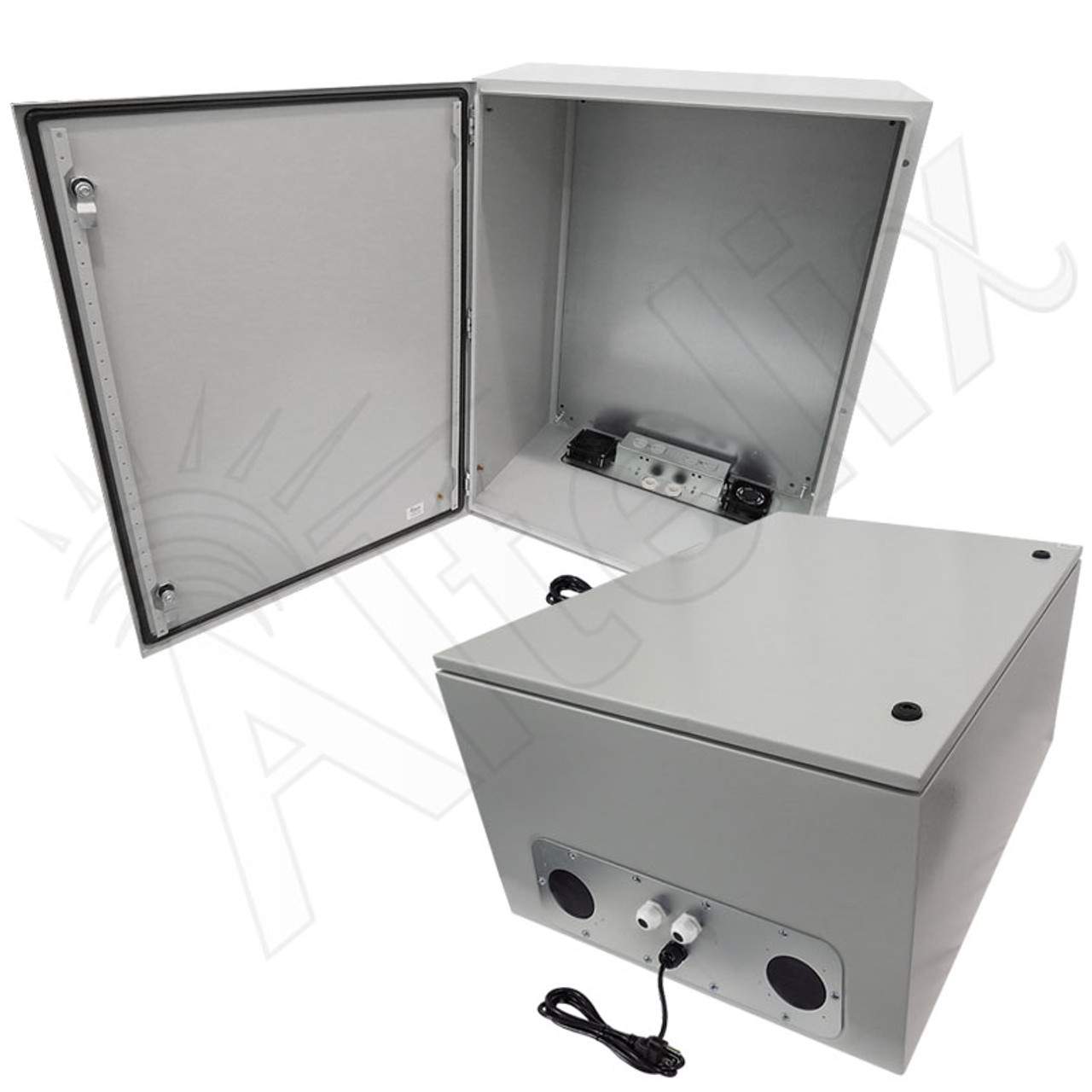

Altelix NS322416VFA1C - 32x24x16 Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, Dual 120 VAC Duplex Outlets and Power Cord
- Brand: Altelix
- P\N: NS322416VFA1C
Do you have questions?
Please contact our experts for assistance.
Description
Description
The Altelix NS322416VFA1C Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

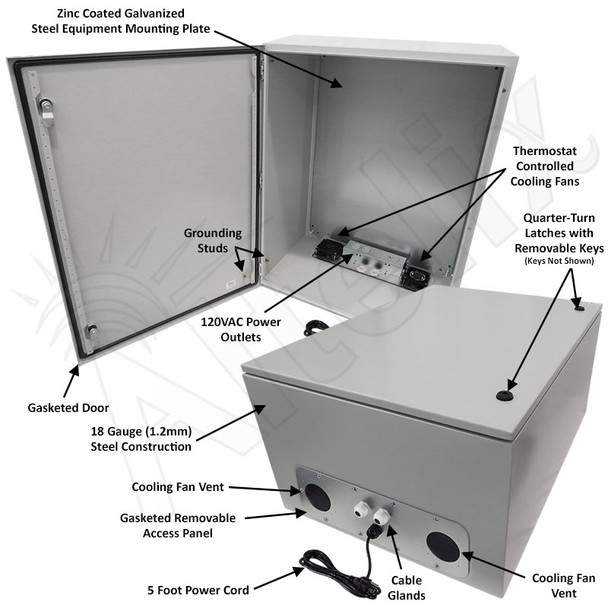

Construction and Features: This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish. Bonus Aluminum Bottle Opener Key: This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power and Fan Module: The NS322416VFA1C features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
Dual Cooling Fans Ventilation: This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.
Galvanized Steel Equipment Plate: This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting: Mounting holes are provided inside the enclosure for mounting to a wall or other structure.
Cable Glands: The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Optional Lockable Latches: For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Customization: This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Key features:
Construction and Features: This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish. Bonus Aluminum Bottle Opener Key: This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power and Fan Module: The NS322416VFA1C features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
Dual Cooling Fans Ventilation: This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.
Galvanized Steel Equipment Plate: This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting: Mounting holes are provided inside the enclosure for mounting to a wall or other structure.
Cable Glands: The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Optional Lockable Latches: For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Customization: This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Key features:
- Dual Thermostat Controlled Cooling Fans
- (4) 120VAC Outlets
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Dual quarter-turn door latches with key
- Bonus Aluminum Bottle Opener Key Now Included!
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 3R, 3RX / IP24 Rated
