Altelix NHBS-RACK-V4U - Standard 19" 4U Vertical Wall Mount Equipment Rack

  • Brand: Altelix
  • P\N: NHBS-RACK-V4U
(0)No Reviews yet

Availability: In Stock


Your Price: $38.99

Do you have questions?

Please contact our experts for assistance.

Description

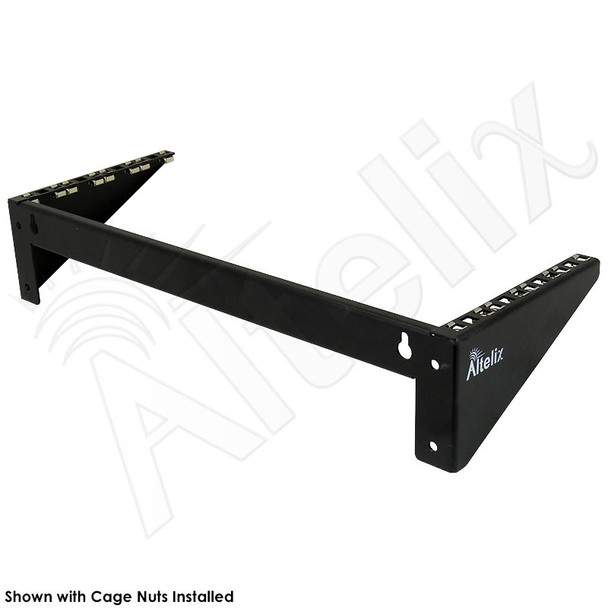

The Altelix NHBS-RACK-V4U is a EIA-310 compliant 19" 4U vertical wall mount rack frame. Featuring heavy duty powder coated 14 gauge steel construction, it is designed to mount equipment vertically on a wall or inside an enclosure. The hardware kit includes both concrete anchors and wood screws for wall mounting. The rear mounting holes of the NHBS-RACK-V4U are spaced to mount to standard 16" stud spacing found in most wall construction.

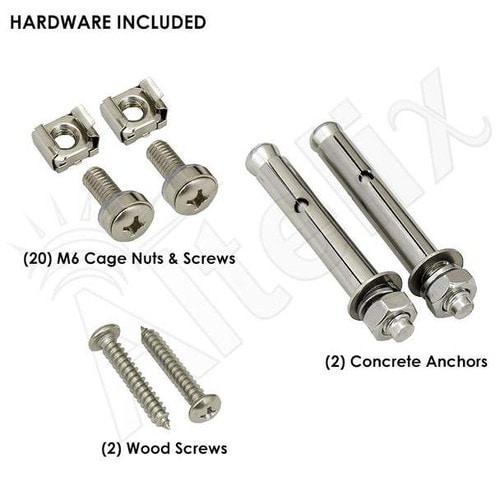

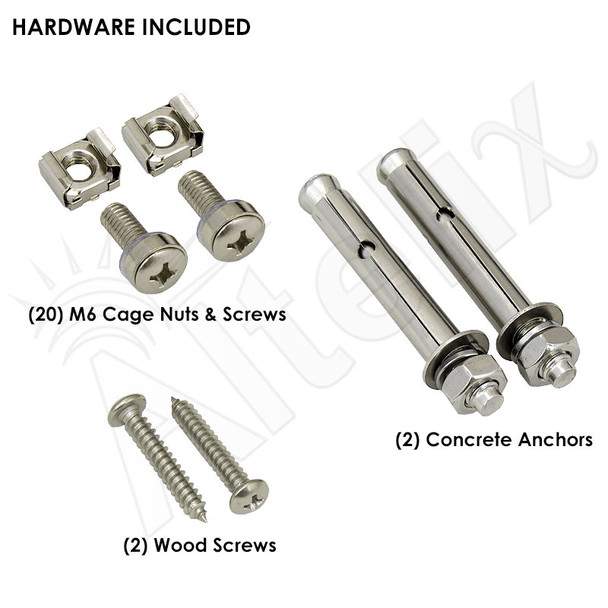

Included are (20) M6 Cage Nuts and Screws for mounting equipment, (2) Concrete Anchors and (2) Wood Screws.

Available With Enclosure
The NHBS-RACK-V4U 4U vertical rack as well as our NHBS-RACK-6U adjustable depth 6U rack are available in Altelix Fiberglass (FRP), Painted Steel and Stainless Steel enclosures with sizes ranging from 24"x24"x12" to 32"x24"x16".

Features

  • Heavy Duty Steel Construction and Powder Coat Finish
  • EIA-310 Compliant
  • Includes Cage Nuts and Screws for Mounting Equipment, Concrete Anchors and Wood Screws
  • Can Mount to Standard 16" Stud Spacing
  • No Assembly Required

Applications

  • 19" Rack Mountable Equipment
  • Rack Mountable Audio/Video Equipment
  • Networking Equipment
  • Rack Mounted Power Strips
Material14 Gauge (2.0mm) Steel
ColorBlack
Rack Frame Size / Equipment Spaces19 inch / 4U
Weight Capacity75.0 lbs. [34 kg]
Rack Weight1.8 lbs. (0.8 kg)
Industry StandardsEIA-310
