Altelix NHBS-RACK-6U - Threaded 19" 6U Adjustable Depth 9.5" to 15.5" Open Frame Wall Mount Equipment Rack - 75 lbs Capacity
- Brand: Altelix
- P\N: NHBS-RACK-6U
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

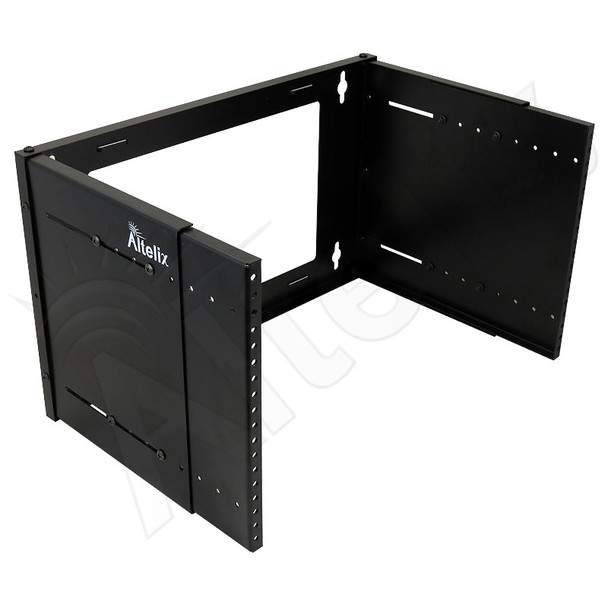

The Altelix NHBS-RACK-6U is a standard EIA-310 compliant 19" 6U rack frame. Featuring heavy duty powder coated 15 gauge steel construction, it is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The hardware kit includes both concrete anchors and wood screws for wall mounting. The rear mounting holes of the NHBS-RACK-6U are spaced to mount to standard 16" stud spacing found in most wall construction.

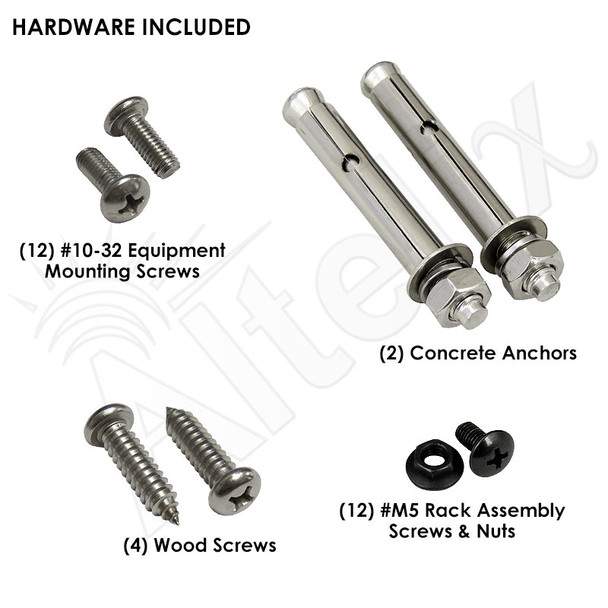

Included are (12) #10-32 Screws for mounting equipment, (2) Concrete Anchors and (4) Heavy Duty Wood Screws.
Available With Enclosures
The NHBS-RACK-6U 6U rack as well as our NHBS-RACK-V4U 4U vertical rack are available in Altelix Fiberglass (FRP), Painted Steel and Stainless Steel enclosures with sizes ranging from 24"x24"x12" to 32"x24"x16".
Features
- Heavy Duty Steel Construction and Powder Coat Finish

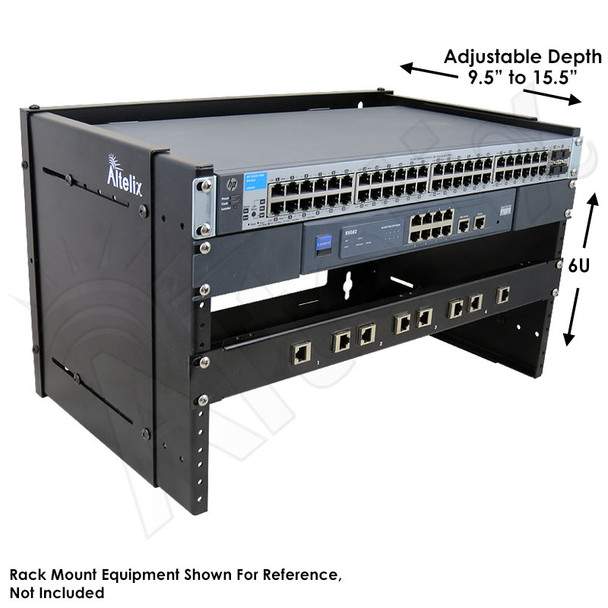

- Adjustable Depth from 9.5" to 15.5"
- Includes #10-32 Screws for Mounting Equipment, Concrete Anchors and Wood Screws
- Designed to Mount to Standard 16" Stud Spacing
- EIA-310 Compliant
Applications
- 19" Rack Mountable Equipment
- Rack Mountable Audio/Video Equipment
- Networking Equipment
- Rack Mounted Power Strips
| Material | 15 Gauge (1.8mm) Steel |
| Color | Black |
| Rack Frame Size / Equipment Spaces | 19 inch / 6U |
| Rack Frame Threaded Hole Size | #10-32 |
| Minimum Rack Depth | 9.5 inch (243 mm) |
| Maximum Rack Depth | 15.5 inch (395.4 mm) |
| Weight Capacity | 75.0 lbs. [34 kg] |
| Rack Weight | 11.7 lbs. (5.3 kg) |
| Industry Standards | EIA-310 |
