Altelix NHBS-RACK-8U - 8U Adjustable Depth Wall Mount 19" Network & AV Equipment Rack - 75 lbs Capacity

Altelix 8U Adjustable Depth (12.35" to 20.5") Wall Mount 19” Network & AV Equipment Rack - 75 lbs Capacity (NHBS-RACK-8U)

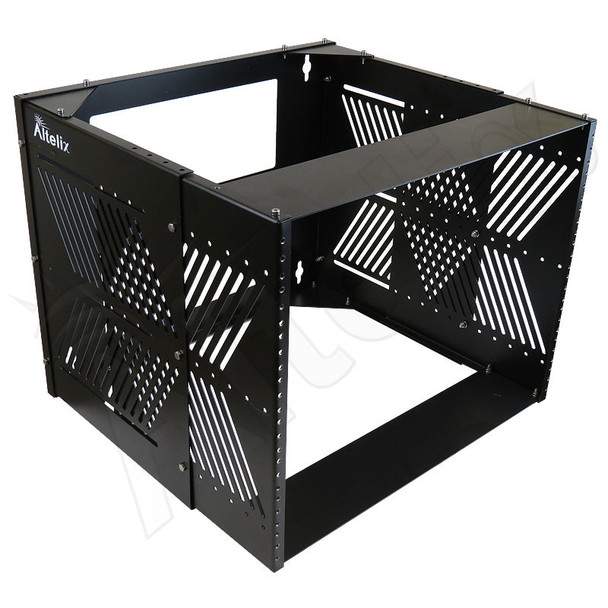

The Altelix NHBS-RACK-8U is a standard EIA-310 compliant 19" 8U rack frame. Featuring heavy duty powder coated 15 gauge steel construction, it is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The vented design of this 8U rack frame ensures maximum air flow around installed equipment. The hardware kit includes both concrete anchors and wood screws for wall mounting. The rear mounting holes of the NHBS-RACK-8U are spaced to mount to standard 16" stud spacing found in most wall construction.

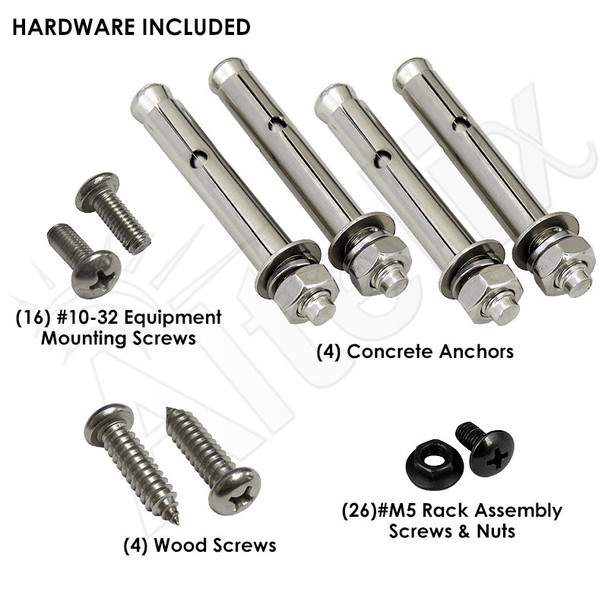

Included are (16) #10-32 Screws for mounting equipment, (4) Concrete Anchors and (4) Heavy Duty Wood Screws.

Additional Rack Frames Available
The following rack frames are also available from Altelix, NHBS-RACK-6U 6U adjustable rack frame, NHBS-RACK-V4U 4U vertical rack frame and NHBS-RACK-V2U vertical rack frame.

Features

• Heavy Duty Steel Construction and Powder Coat Finish

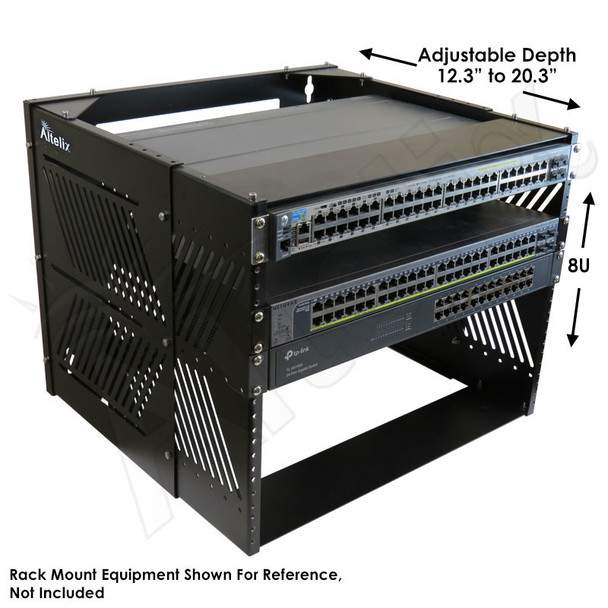

• Extendable Rack Adjusts from 12.3" to 20.3" Deep
• Includes #10-32 Screws for Mounting Equipment, Concrete Anchors and Wood Screws
• Vented Frame Design Ensures Maximum Air Flow Around Installed Equipment

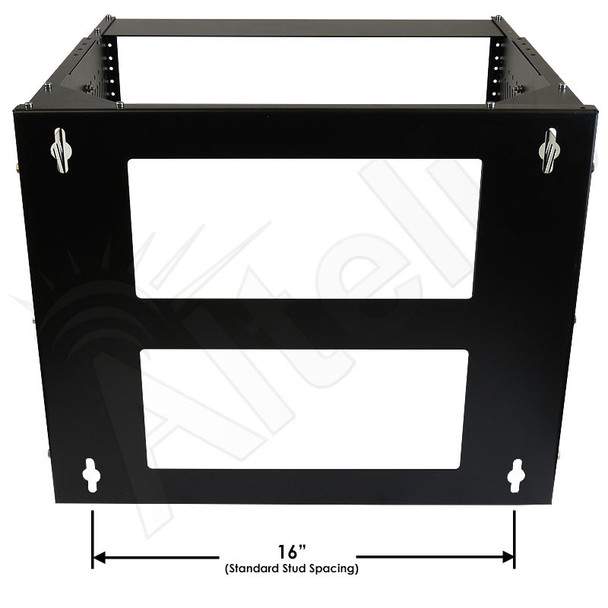

• Designed to Mount to Standard 16" Stud Spacing
• EIA-310 Compliant

Applications

• 19" Rack Mountable Equipment
• Rack Mountable Audio/Video Equipment
• Networking Equipment
• Rack Mounted Power Strips
• Ideal for Use in NEMA Enclosures and Cabinets
