Aluminum Access Panel with 10 PG16 Cable Glands for NS242012, NS242412, NX242416, NS242416, NS242424, NS282416 and NS322416 Enclosures

The Altelix NHM20A-H10 Aluminum Access Panel is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This panel is a direct replacement for the steel access panel included with the NS and NX enclosures.

Cable Glands

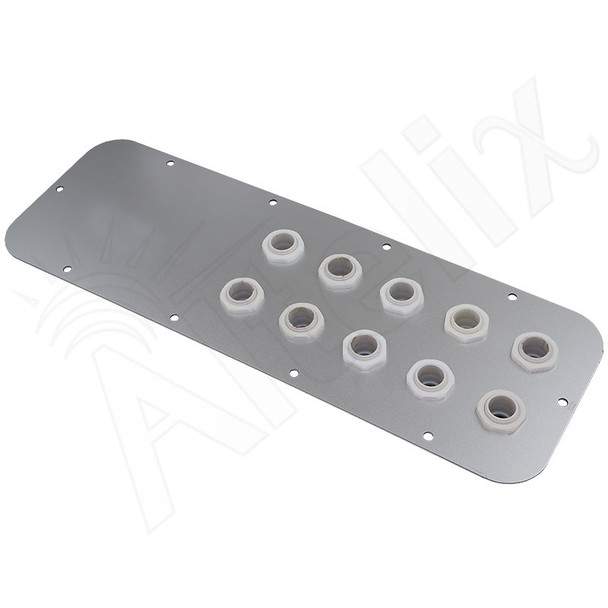

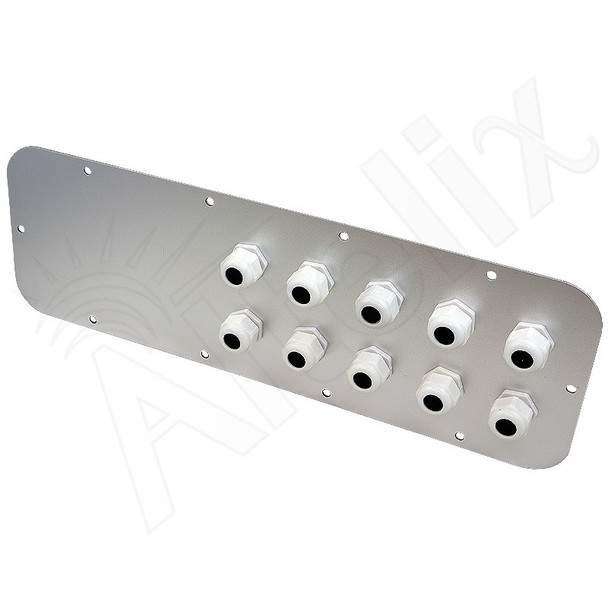

This panel includes (10) of our sealed PG16 cable glands. These unique cable glands feature a closed inner seal which when installed into the open ports they maintain a water tight seal when not in use. When required for use, simply punch a hole through the inner membrane, run your cable and tighten for a water tight seal. The ports used for these cable glands can also be used with 1/2" liquid-tight fittings (not included).

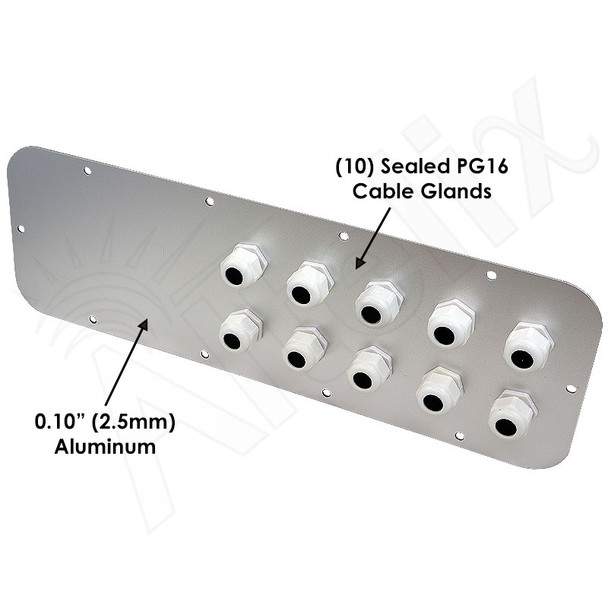

The NHM20A-H10 is constructed from 0.10" (2.5mm) thick aluminum and features a textured finish.

This panel is for use with the following enclosures:

• NS242012 Series
• NS242412 Series
• NS242416 Series
• NX242416 Series
• NS242424 Series
• NS282416 Series
• NS322416 Series

Features

• Heavy Duty Aluminum Construction
• Includes (10) Sealed PG16 Cable Glands
• Direct Replacement for Panels Included with NS Enclosures
