Altelix Fiberglass Weatherproof Enclosure for Starlink® Pro Satellite Router & Power Supply (Gen 2) with Cooling Fan and 100-240 VAC Universal Power Outlet

Starlink® Pro / In-Motion Satellite System Enclosure with Universal Power for Worldwide Operation

Designed to provide the ultimate protection for the (Gen 2) Starlink® Pro / In-Motion system, this fan cooled enclosure is ideal for worldwide operation. It features two 100-240VAC universal power outlets and a 100-240VAC powered fan-cooled ventilation system.

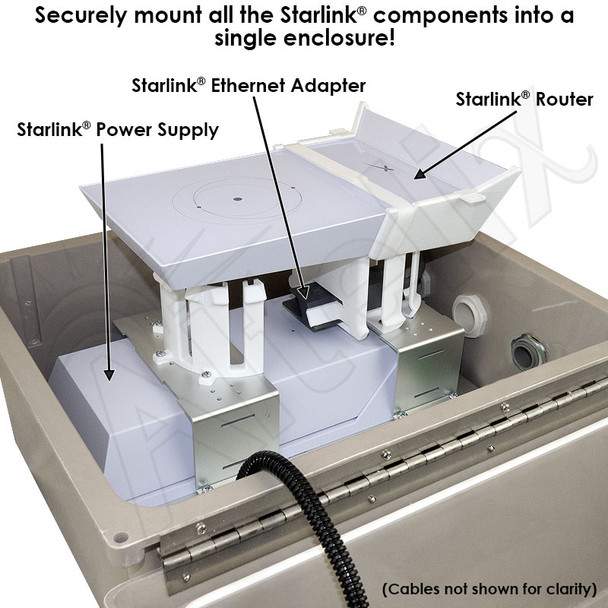

Install the Starlink® Router, Ethernet Adapter and Power Supply into a Single Enclosure

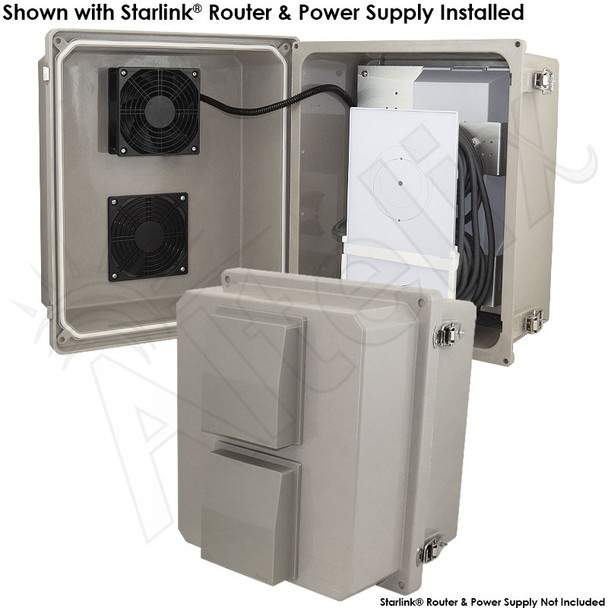

Designed specifically for the (Gen 2) Starlink® Pro / In-Motion system, the Starlink® Router, Ethernet Adapter and Power Supply can all be installed into a single enclosure. This provides the ultimate protection of these sensitive components and simplifies deployment.

Multi Function Mounting Cradle

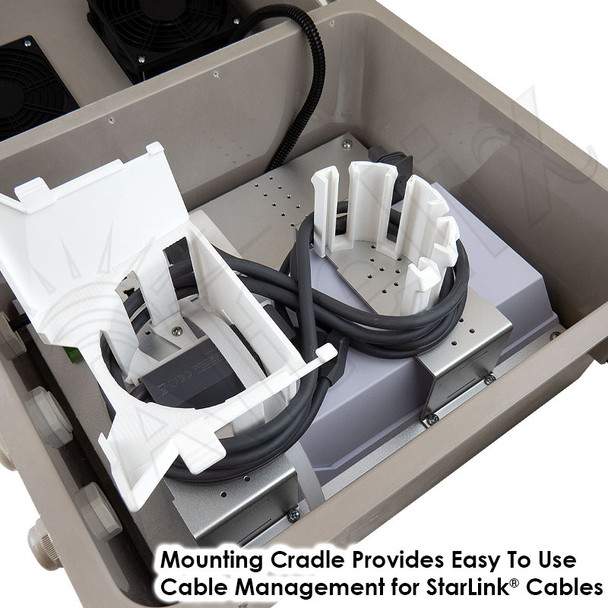

The Altelix Starlink enclosure features an innovated multi function mounting cradle which is designed to easily mount both the (Gen 2) Starlink® Router and Starlink® Ethernet Adapter into one cradle. This mounting cradle also provides easy to use cable management for all the required cables.

Easy Setup

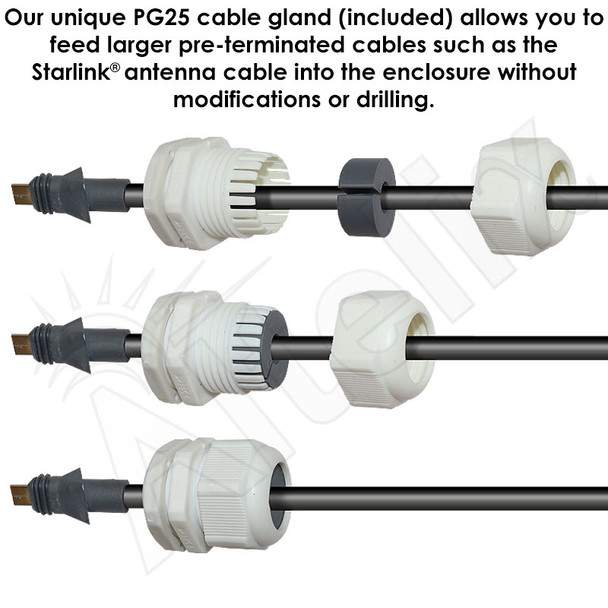

This enclosure provides easy installation of the Starlink® components, only a screwdriver is needed. First install the mounting bracket for the Starlink® Power Supply to the pre-drilled equipment mounting plate using the supplied hardware. Next install the router cradle which mounts on top of the power supply. Once the Starlink® router and Ethernet adapter are securely mounted inside the enclosure, connect the router's power supply and the antenna's power supply to the internal 100-240VAC universal power outlets. Cable glands on the enclosure allow terminated Ethernet cables and the Starlink® antenna cable to be securely connected to the installed equipment. The quick-connect power terminal strip  simplifies hard-wiring by a qualified installer.

Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a 100-240VAC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all the power outlets available for the Starlink® Router and power supply.

Universal Power for Worldwide Operation
This enclosure features two 100-240VAC universal power outlets supporting multiple international power standards in addition to the USA:

• 110VAC 50/60Hz
• 115VAC 50/60Hz
• 220VAC 50/60Hz
• 230VAC 50/60Hz
• 240VAC 50/60Hz

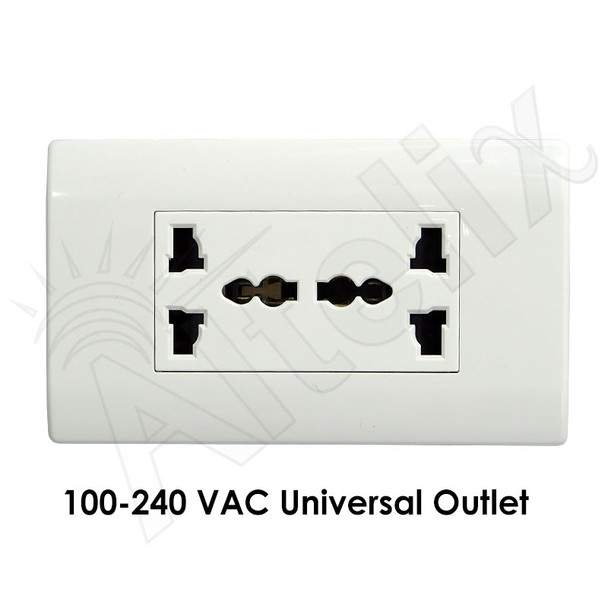

The universal 100-240 VAC power outlet is compatible with the following plug types:

• UK/Ireland BS 1363
• Italy CEI 23-16/VII
• Denmark Afsnit 107-2-D1
• Euro plug (2-pin) CEE 7/16
• Australia Type I
• India BS 546

For the following plugs types, please refer to the safety notes in the Technical Specs:

• Swiss (2-pin) SEV 1011
• Israel SI 32
• North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
• Continental Europe (Schuko) CEE 7
• France/Belgium CEE 7

Extreme Protection Built to Last

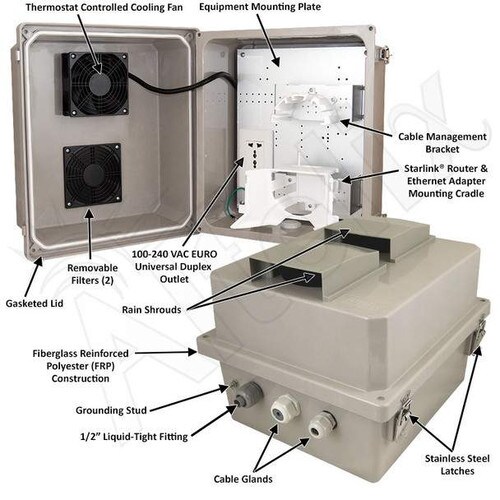

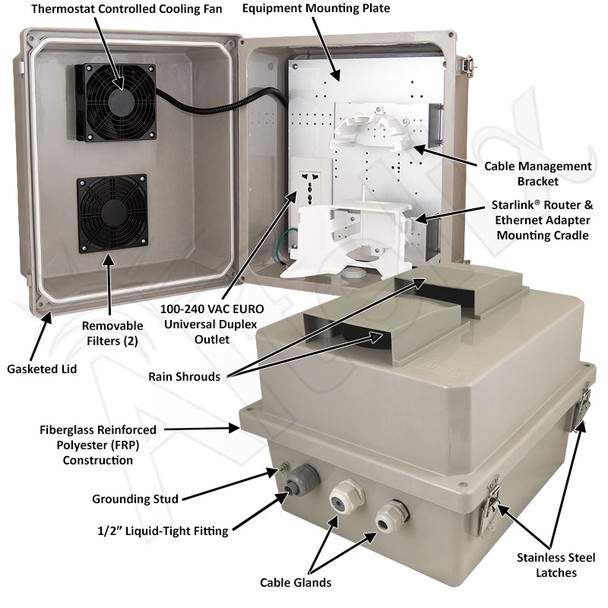

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent so that it will not interfere with the WiFi signal range or coverage pattern of the Starlink® WiFi Router. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Features

• Install the Starlink® Satellite Router (Gen 2), Starlink® Ethernet Adapter and Starlink® Power Supply (Gen 2) into a Single Enclosure
• Multi Function Cradle Designed to Mount Both the Starlink® Router and Starlink® Ethernet Adapter
• Integral Cable Management for Starlink® Cables
• Equipment Mounting Plate Pre-drilled for Starlink® Power Supply Mounting Bracket
• (2) Pre-wired Universal 100-240VAC Duplex Outlets
• Removable Power Terminal Block
• Thermostat Controlled 100-240 VAC Cooling Fan with (2) 4” Vents with Rain Shields and Screens
• Rugged RF Transparent Fiberglass Reinforced Polyester FRP Construction
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Stainless Steel hinge and Quick Release Latches with Padlock Hasps
• NEMA Type 3R, 3RX / IP24 Rated
• Includes 1/2" Light-Tight Fitting, Cable Glands and Stainless Steel Enclosure Mounting Feet
• Optional Pole Mounting Kit Available

Applications

• Worldwide Operation
• Starlink® Pro / In-Motion System
• Starlink® Satellite Router (Gen 2) -Model #UTR-211
• Starlink® Power Supply -Model #UTP-221
• Starlink® WiFi Mesh Node
• Protection of Starlink® Satellite Internet Router from Theft or Damage
• Concealment of Equipment
• Retail and Commercial Networks
• Rapid Deployment
• Emergency Networks
• Harsh Environments
