Altelix NF14VMFA1C-EER7 - Fiberglass Weatherproof Fan Cooled Enclosure for Amazon eero® Max 7 Mesh WiFi Router

Altelix Fiberglass Weatherproof Fan Cooled Enclosure for Amazon eero® Max 7 Mesh WiFi Router

Industrial Grade Protection and Easy Deployment

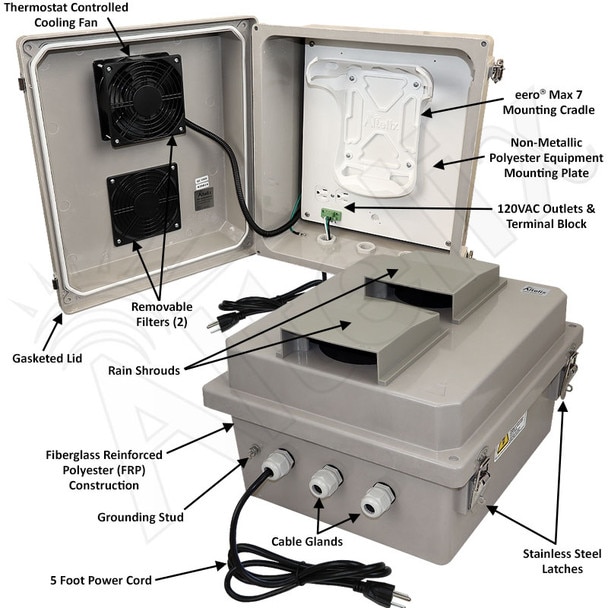

The Altelix Fan Cooled Amazon eero® Max 7 Enclosure is ideal weatherproof enclosure designed to provide indoor or outdoor protection for the Amazon eero® Max 7 Mesh WiFi Router. It is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The polyester non-metallic RF transparent equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

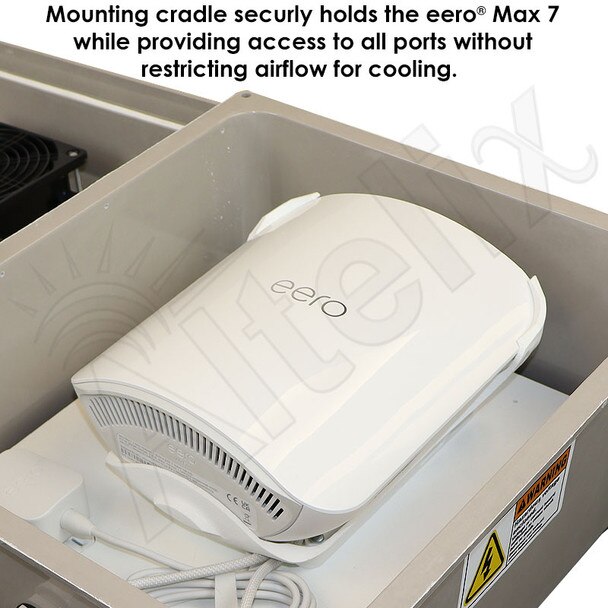

Amazon eero® Max 7 Mount

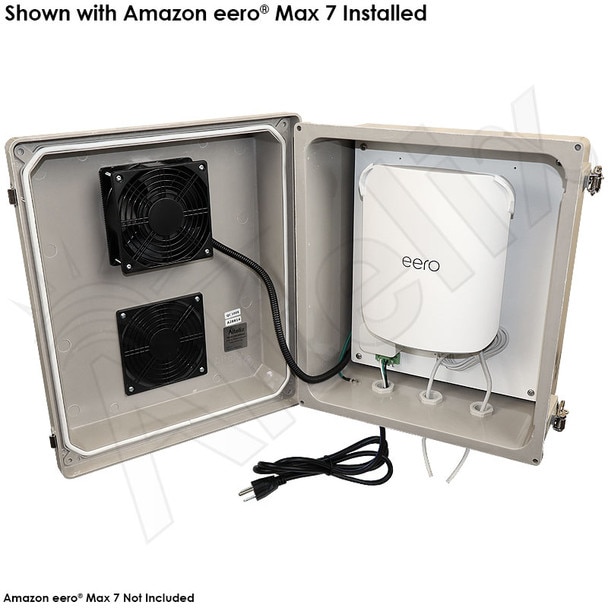

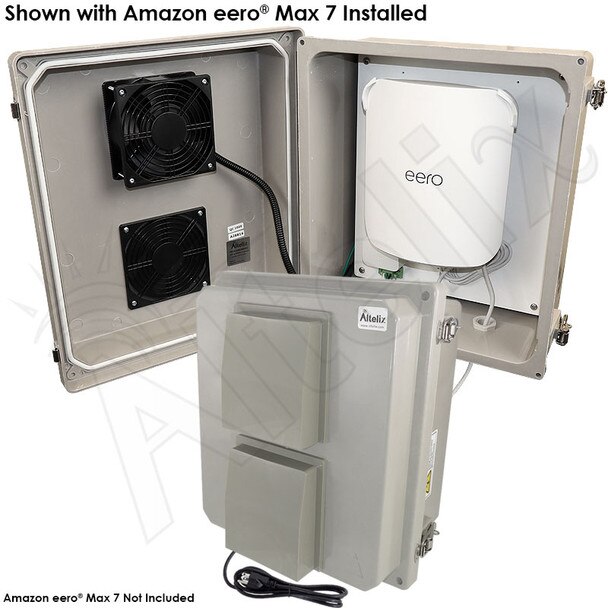

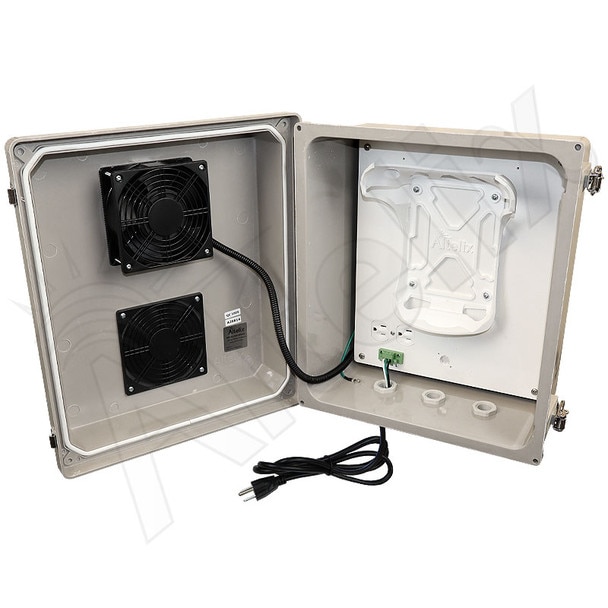

The NF14VMFA1C-EER6 features a mounting cradle specifically designed for the Amazon eero® Max 7 Mesh WiFi Router. It securely holds the Amazon eero® Max 7 while providing access to all ports without restricting airflow for cooling. For extra security and installations subject to vibrations, an optional hook and loop strap is provided to secure the router within the mounting cradle. The non-metallic design of the enclosure and cradle will not interfere with the WiFi signal range or coverage pattern.

Fan Cooling with Thermostat Control

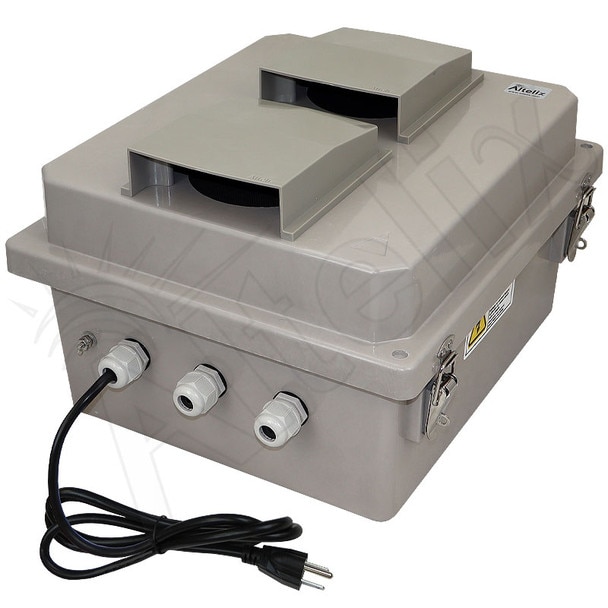

This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving the 2 power outlets available for installed equipment.

Extreme Protection Built to Last

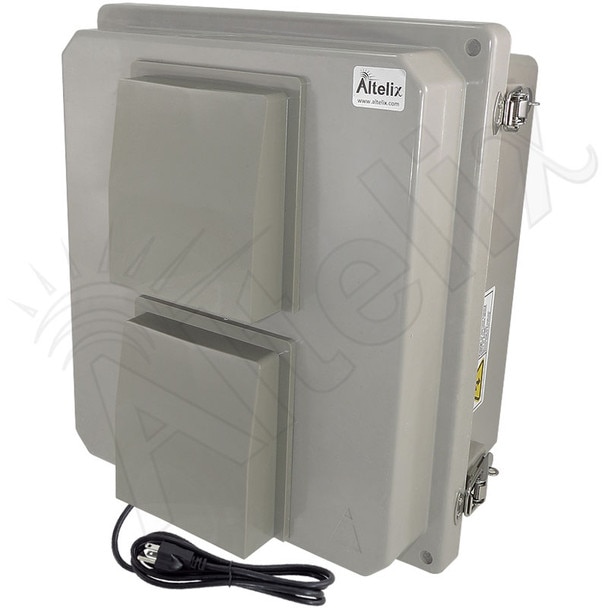

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Cable Glands

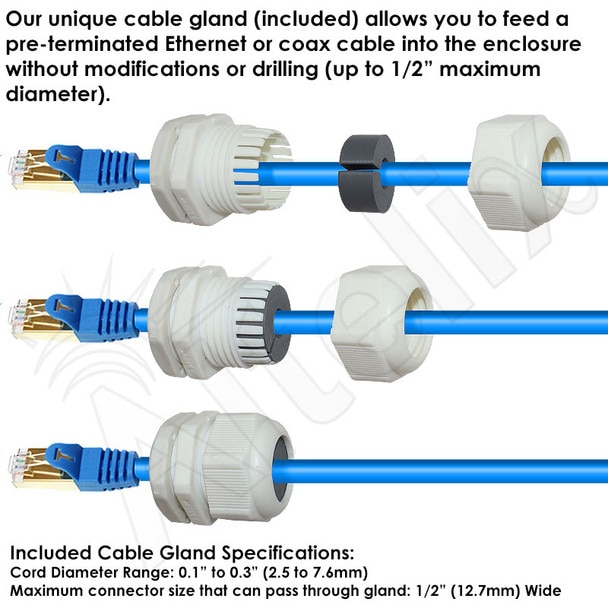

Installed on the enclosure are two specially designed cable glands which will allow a pre-terminated Ethernet cable to be fed into the enclosure. Also included are cable glands with a closed inner seal. They can be installed in open ports to maintain the NEMA rating of the enclosure when not in use.

Mounting

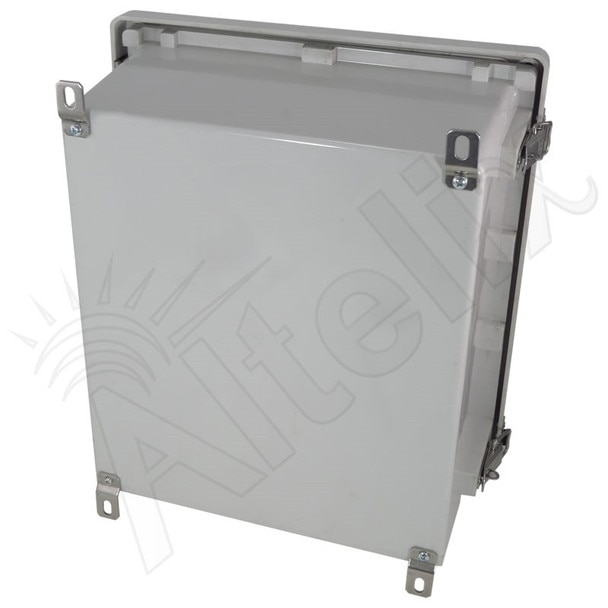

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Amazon eero® is a trademark or registered trademark of Amazon Technologies, Inc.
