Altelix NMKS-400-08 - Pole Mount / Flange Mount Kit for NFC161608, NFC201608, NFC241609, NS161608, NS201608, NS201612, NS241610 & NS241612 Series NEMA Enclosures
- Brand: Altelix
- P\N: NMKS-400-08
Do you have questions?
Please contact our experts for assistance.
Description
Description

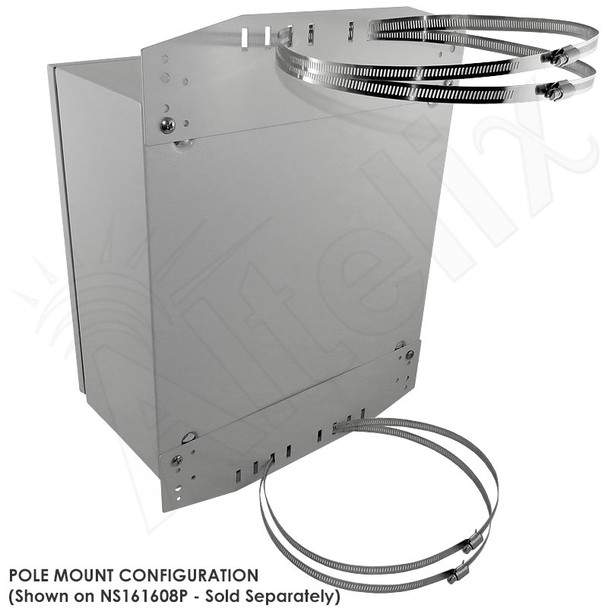

The Altelix NMKS-400-08 Pole Mount Kit attaches to the rear of our NFC and NS series NEMA enclosures. These heavy duty steel brackets allow the enclosures to be mounted to poles 2.0 to 7.6 inches (50.8 to 194.5mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick steel and are coated for all weather applications.
Optional adjustable stainless steel bands can also be purchased for the following pole sizes:
- Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
- Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
- Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

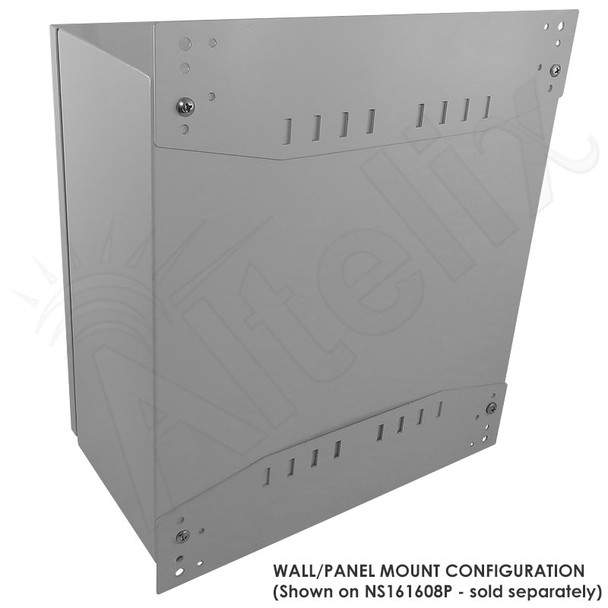

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.
The NMKS-400-08 kit includes (2) 0.08" (2mm) thick steel mounting brackets, (4) stainless steel bands and mounting hardware.
The NMKS-400-08 is for use with the following enclosures:
- NFC161608 Series FRP Enclosures
- NFC201608 Series FRP Enclosures
- NFC241609 Series FRP Enclosures
- NS161608 Series Steel Enclosures
- NX161608 Series Stainless Steel Enclosures
- NS201608 Series Steel Enclosures
- NS201612 Series Steel Enclosures
- NX201612 Series Stainless Steel Enclosures
- NS241610 Series Steel Enclosures
- NS241612 Series Steel Enclosures
Features:
- (2) Heavy Duty Coated Steel Mounting Plates
- (4) Stainless Steel Adjustable Bands
- Reversible for Pole Mount or Flange Mounting
- Easily Attaches to Rear of Enclosure
Applications:
- Pole Mount Installations
- Wall Mount Installations
- NFC161608 Series
- NFC201608 Series
- NFC241609 Series
- NS161608 Series
- NX161608 Series
- NS201608 Series
- NS201612 Series
- NX201612 Series
- NS241610 Series
- NS241612 Series
