Altelix NMKG-283-08 - Pole Mount Kit for NP171406 NEMA Enclosures

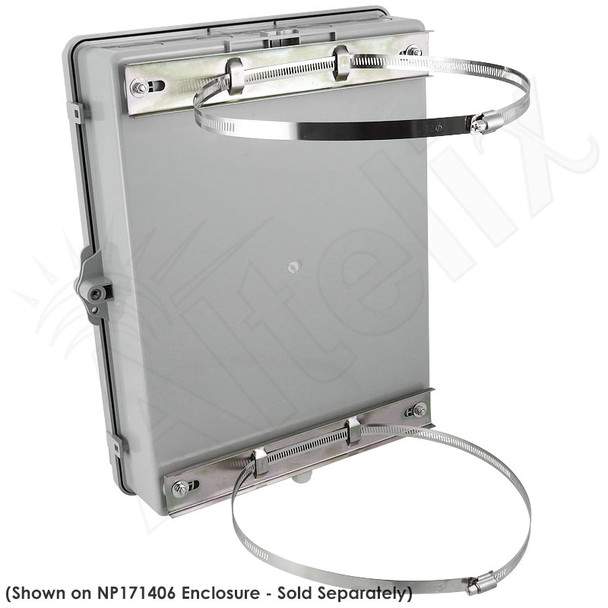

The Altelix NMKG-283-08 Pole Mount Kit easily attaches to the rear of our NP171406 series NEMA enclosures. This pole mount kit allows the enclosures to be mounted to poles up to 7.6 inches (194.5mm) in diameter. The mounting brackets are constructed from 0.04" (1mm) thick galvanized steel for all weather applications.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

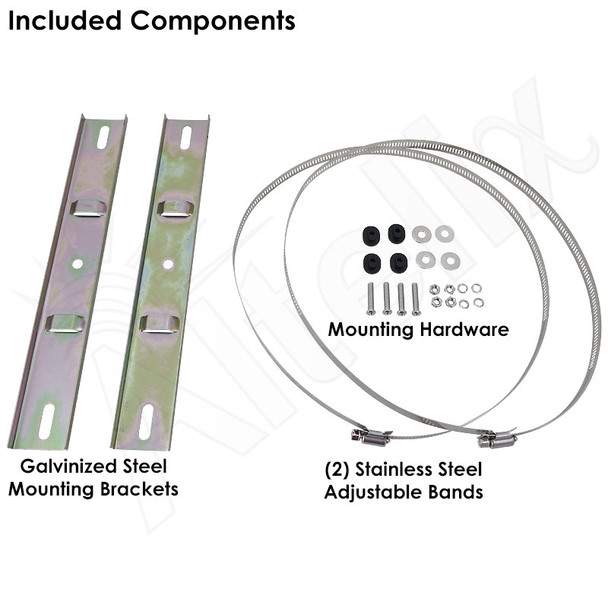

The NMKG-283-08 kit includes (2) galvanized steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware with rubber sealing washers to ensure proper seal.

Features:

• (2) Galvanized Steel Mounting Brackets
• Includes (2) Stainless Steel Adjustable Mounting Bands

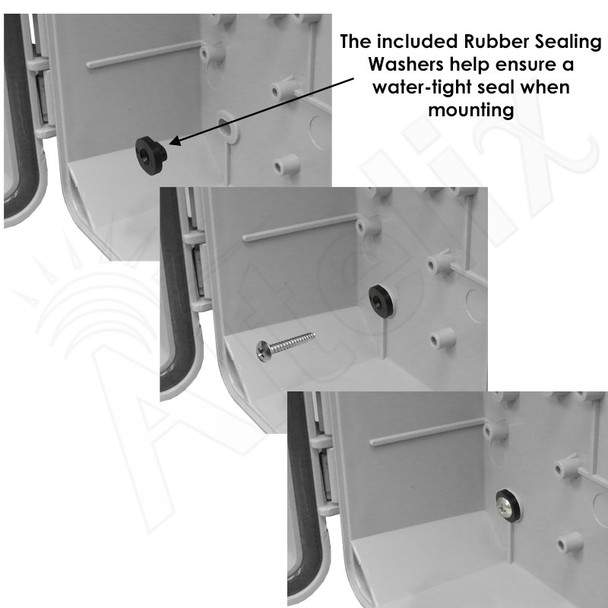

• Included Rubber Sealing Washers Help Keep Enclosure Water-Tight
• Easily Attaches to Rear of Enclosure

Applications:

• Pole Mount Installations
• Fence Posts
• Fits NP171406 Enclosures
