Altelix Vented Aluminum Access Panel for NS161608, NS201608 and NS241610 Enclosures
- Brand: Altelix
- P\N: NHM16A-V
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

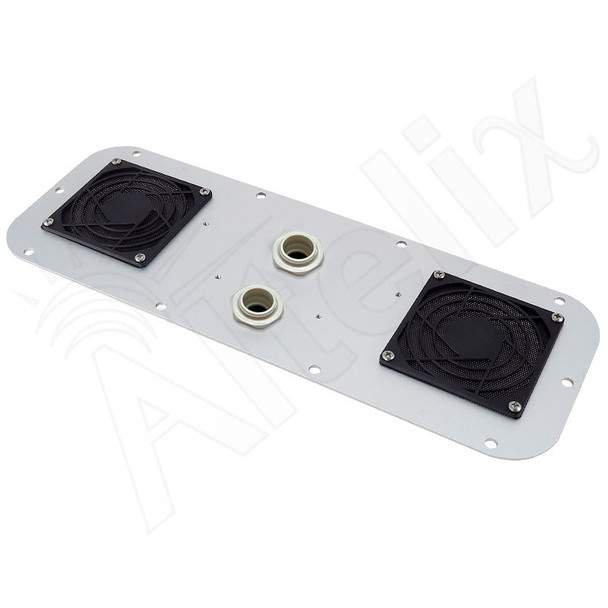

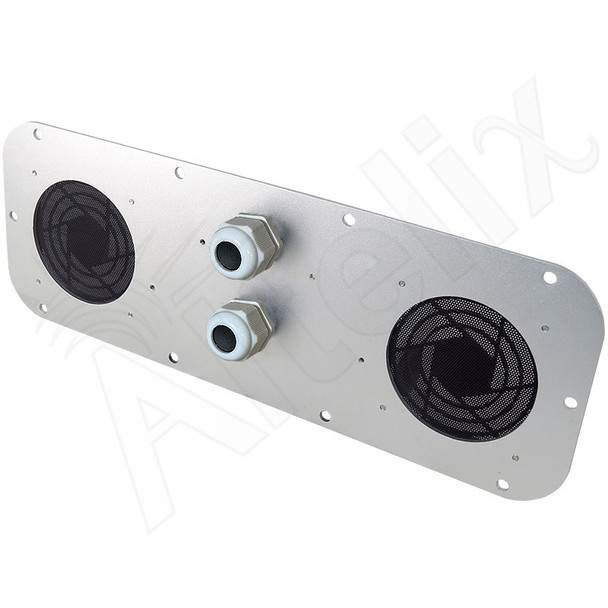

The Altelix NHM16A-V Vented Aluminum Access Panel is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This panel is a direct replacement for the steel access panel included with the NS and NX enclosures. It features (2) 3" vents with screens which are removable for cleaning. In addition, (2) cable glands are provided for any wiring requirements.
The NHM16A-V is constructed from 0.10" (2.5mm) thick aluminum and features a textured finish.
The NHM16A-V is for use with the following enclosures:
- NS161608 Series
- NX161608 Series
- NS201612 Series
- NX201612 Series
- NS241612 Series
| Access Panel Material | Aluminum |
| Access Panel Thickness | 0.10 in. (2.5 mm) |
| Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
| Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
| *Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
