Altelix NHM16A-VA1C - Vented Power Module with 120VAC Outlets for NS161608, NX161608, NS201612, NX201612 and NS241612 Enclosures
- Brand: Altelix
- P\N: NHM16A-VA1C
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

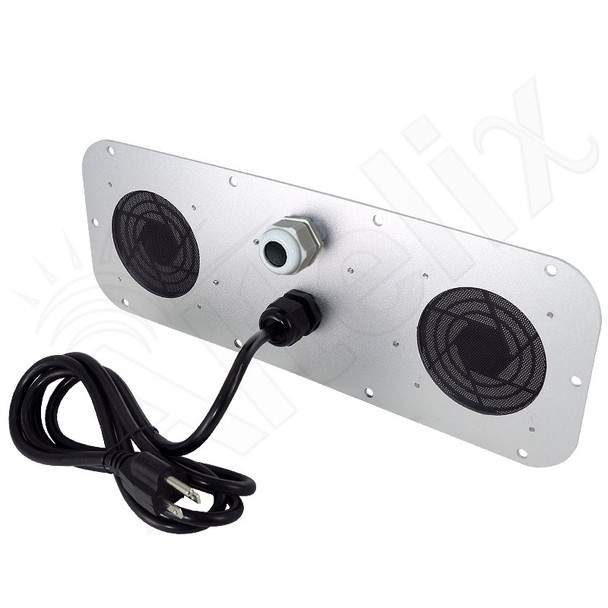

The Altelix NHM16A-VA1C Vented Power Module with 120VAC Outlets is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures. It features (2) 3" vents with screens which are removable for cleaning. In addition a cable gland is provided for any wiring requirements.
Power Module

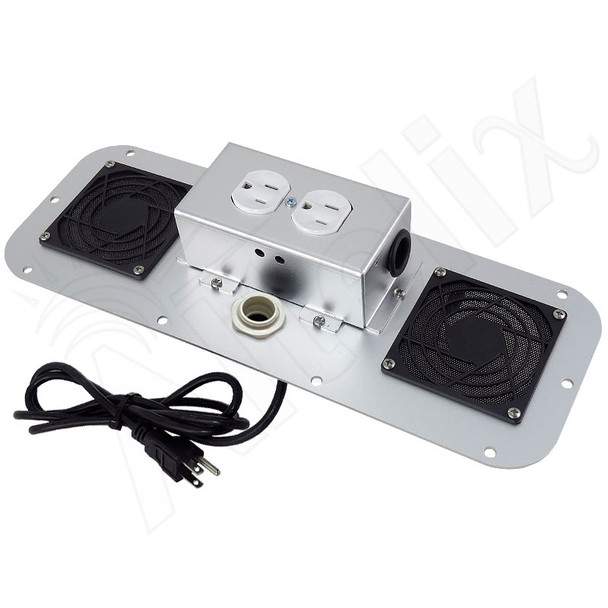

The NHM16A-VA1C is constructed from 0.10" (2.5mm) thick aluminum and features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.
The NHM16A-VA1C is for use with the following enclosures:
- NS161608 Series
- NX161608 Series
- NS201612 Series
- NX201612 Series
- NS241612 Series
| Panel Material | Aluminum |
| Panel Thickness | 0.10 in. (2.5 mm) |
| Voltage | 120VAC |
| Power Cord Length | 5 Feet (1.5m) |
| Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
| Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
| *Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
