Altelix NP14GYV-TPL1 - Vented Weatherproof Enclosure for TP-Link® AC1350 EAP225 V3 Access Point
- Brand: Altelix
- P\N: NP14GYV-TPL1
Do you have questions?
Please contact our experts for assistance.
Description
Description
Altelix Vented Weatherproof Enclosure for TP-Link® AC1350 EAP225 V3 Access Point
The Altelix Vented TP-Link® Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for the TP-Link® AC1350 EAP225 V3 access point. This non-powered enclosure is ideal for installations powering the TP-Link® EAP225 via PoE only.
Install Your TP-Link® Access Point Securely Outdoors

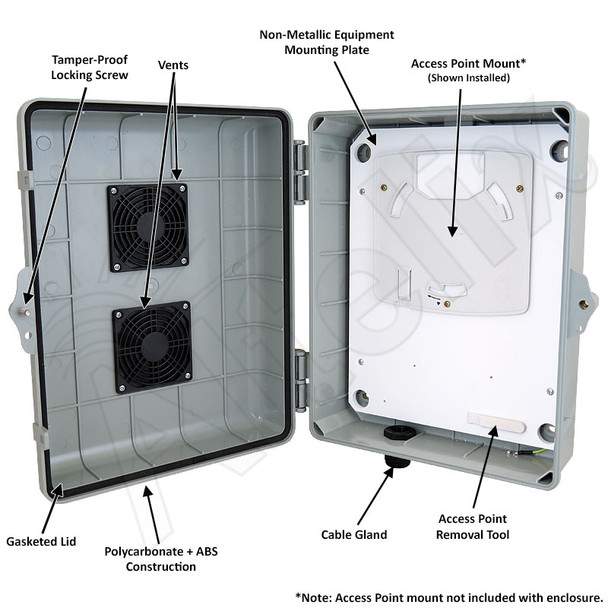

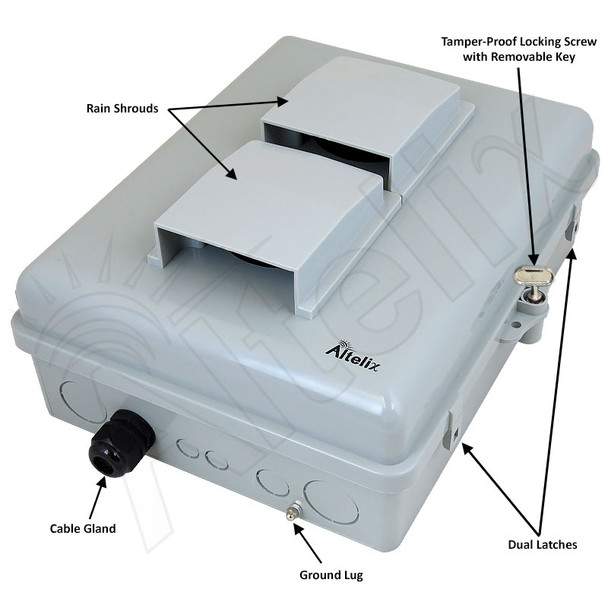

This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock. Two 3" inch air vents with rain shields and screens provide ventilation for the TP-Link® EAP225. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.
Easy Setup

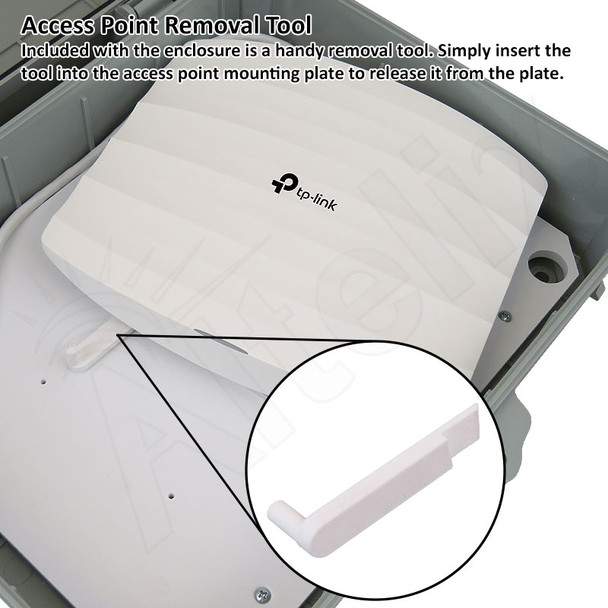

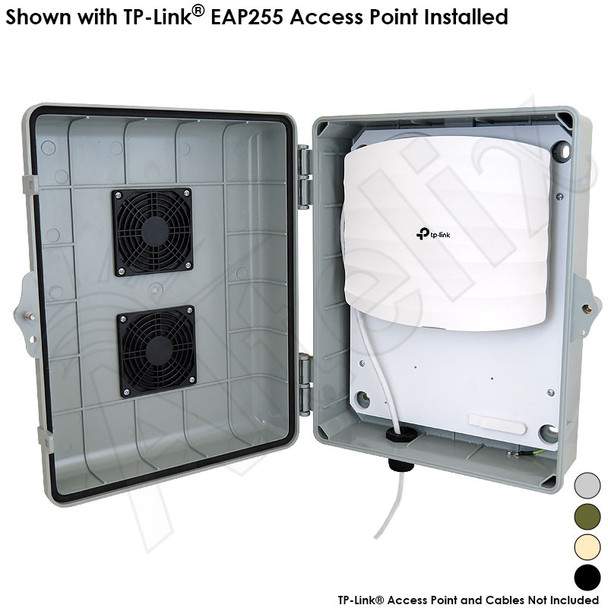

The equipment mounting plate of the NP14V-TPL1 is pre-drilled to except the mounting bracket that comes with the TP-Link® EAP225. Simply attach the mounting bracket to the plate and then install the access point. Once the TP-Link® EAP225 is securely mounted inside the enclosure, a special cable gland on the enclosure will allow a terminated Ethernet cable to be connected to the access point. If for any reason the access point needs to be removed, a handy removal tool is included with the enclosure which disengages the access point from the mounting bracket. This removal tool mounts to the plate so it is always available for use.
For installations requiring 120VAC power, the NP14V-TPL1 features a pre-wired 120VAC internal outlet and a 5 foot enclosure power cord. The internal mounting plate is pre-drilled to except both the router's and PoE adapter's mounting brackets.
RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.
Mounting
The NP17VA1C-TPL1 enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for mounting on poles or fence posts.
Features
- Designed to fit the TP-Link® AC1350 EAP225 V3 Access Point
- Two 3" vents with rain shields and screens
- ABS + Polycarbonate Enclosure
- Gasketed Lid with Tamper-Proof Locking Screw
- Dual Door Latches
- RF transparent design will not affect wireless signal range or coverage pattern
- NEMA Type 3R, 3RX / IP24 Rated
- Includes Access Point Removal Tool, Wall Mount Hardware and Cable Grommets
Applications
- Outdoor Wireless Network Installations
- Protection of Router from Theft or Damage
- Concealment of Equipment
- Deployment of Hospitality Wireless Networks
- Retail and Commercial Wireless Networks
- PoE Installations
TP-Link® is a trademark or registered trademark of TP-Link, Corp.
