Altelix NP14GYVMA1C-ALM1 - Weatherproof Vented Enclosure for Alarm.com® Z-Wave Hub and PointCentral® Hub with 120VAC Outlets and Power Cord

Altelix NP14GYVMA1C-ALM1 Weatherproof Vented Enclosure for Alarm.com® Z-Wave Hub and PointCentral® Hub with 120VAC Outlets and Power Cord

Best For

The Altelix NP14GYVMA1C-ALM1 is a Weatherproof Vented Enclosure for Alarm.com® Z-Wave Hub and PointCentral® Hub.

Why Choose the NP14GYVMA1C-ALM1?

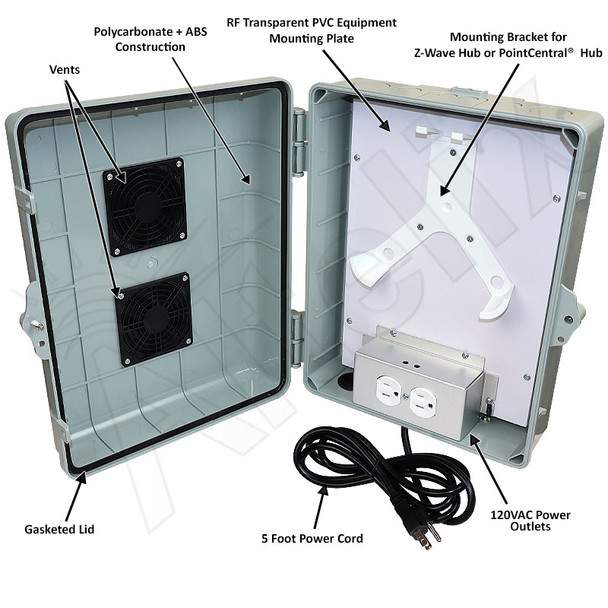

The Altelix Cellular Z-Wave Hub Enclosure is a vented weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the Alarm.com® or PointCentral® Hubs. It features two 3" inch air vents with rain shields and screens. By installing one of these hubs inside this enclosure, property managers can be rest assured that this equipment will not be tampered with.

Key Benefits

• Designed to fit the Alarm.com® Cellular Z-Wave Hub and PointCentral® Hub
• Plug-and-Play Design, Easy to Install
• Dual 3" Vents with Rain Shields to Expel Heat
• Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
• Pre-Wired 120VAC Power Outlet with 5 foot Power Cord
• Includes Wall Mounting Hardware
• NEMA Type 3R, 3RX / IP24 Rated
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS Construction
• Gasketed Lid Featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
• Optional Pole Mount Kit Available

Who Should Buy the NP14GYVMA1C-ALM1?

This enclosure is a good fit if you need 120VAC Outlets and Power Cord.

Plug and Play Setup

This Altelix enclosure provides easy plug-n-play installation. Once the enclosure is mounted, install the hub into the mounting bracket and plug its power supply into the pre-wired 120VAC power outlet. Then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running.

RF Transparent Design

The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the wireless signal range or coverage pattern of the installed hubs.

Compatible Models

The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the wireless signal range or coverage pattern of the installed hubs.

• Alarm.com® Cellular Z-Wave Hub - Model #ADC-NK-200T
• PointCentral® Hub - Model #ADC-NK-100T-LTE

Rugged Polycarbonate + ABS Construction

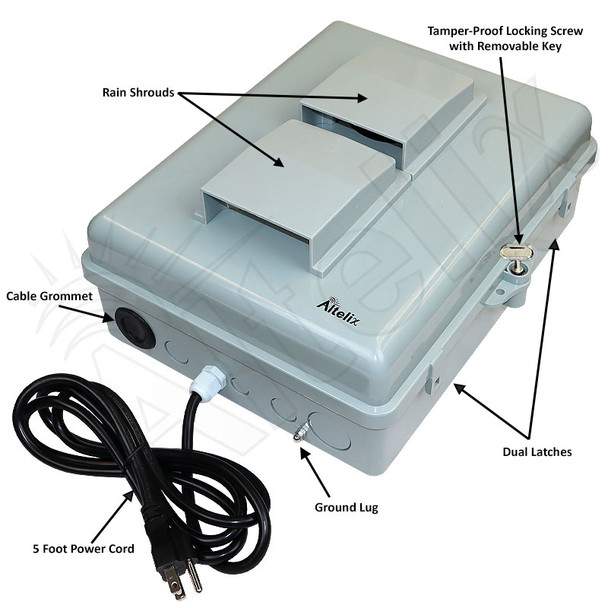

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Complete with Cable Grommets and Glands and Wire Management Straps

For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more. A pre-installed cable grommet is available if any additional cables need to be installed in the enclosure.

Mounting

The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Alarm.com® and PointCentral® are trademarks or registered trademarks of Alarm.com, Inc.

Applications

• Designed for Use With:
  Alarm.com® Cellular Z-Wave Hub - Model #ADC-NK-200T
  PointCentral® Hub - Model #ADC-NK-100T-LTE
• Provides Protection of Installed Hubs from Theft or Damage
• Prevents Tampering of Installed Hubs
• Installation in Outdoor Locations
• Concealment of Equipment
• Vacation Rentals, AirBnb Properties, Rentals by Owner, Single-Family Homes, and Multifamily properties
