Altelix NP14GYVA1C-ARS1 - Weatherproof Vented Enclosure for Arris® SURFboard® SB8200, SB6190 & SBG10 Cable Modems with 120VAC Outlets and Power Cord

Altelix Weatherproof Vented Enclosure for Arris® SURFboard® SB8200, SB6190 & SBG10 Cable Modems with 120VAC Outlets and Power Cord

Provide Television and Internet Cable Services to Outdoor Locations

The Altelix Cable Modem Enclosure is a vented weatherproof enclosure designed to provide added security from  vandalism and protection from harsh environments, while allowing ventilation for Arris® SURFboard® modems. It features two 3" inch air vents with rain shields and screens.

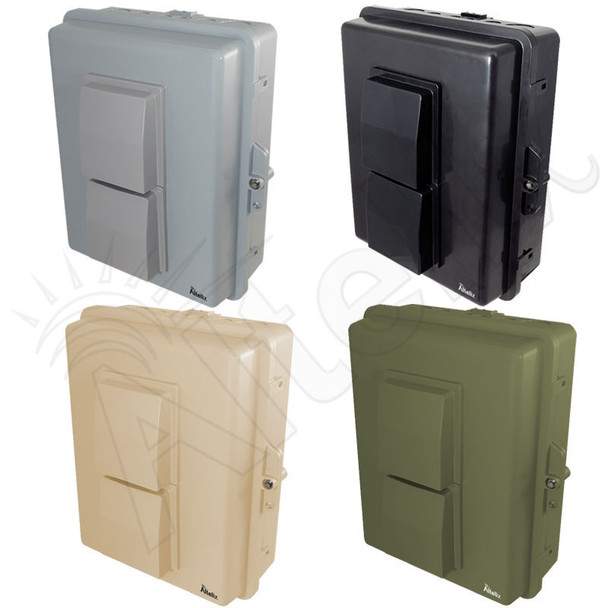

Rugged Polycarbonate + ABS Construction

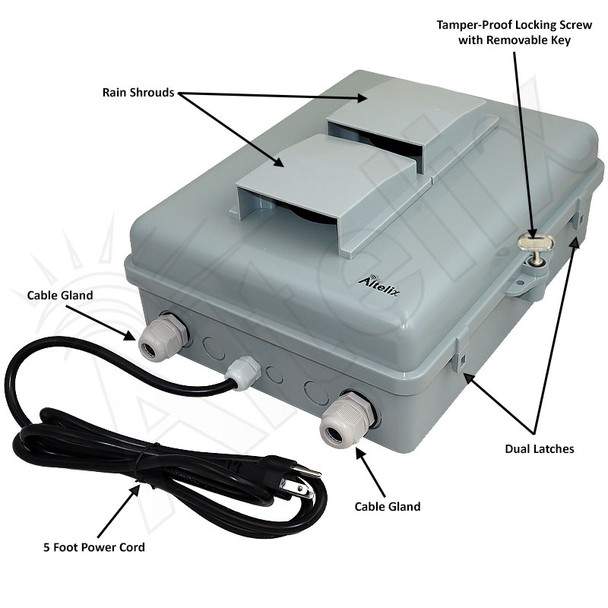

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Plug and Play Setup

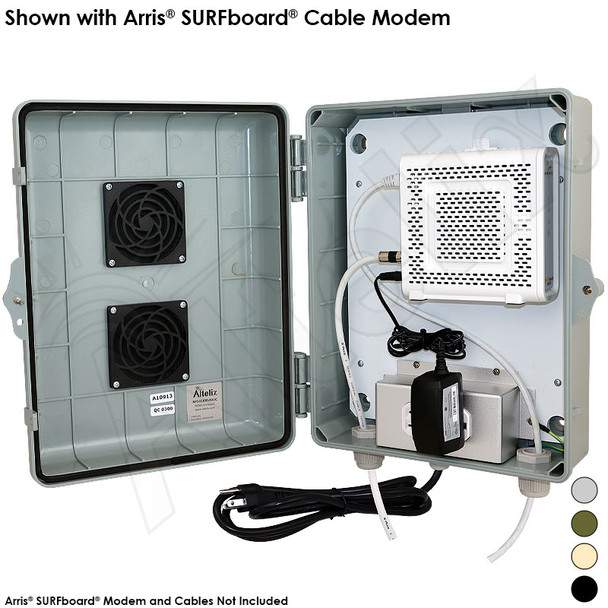

The Altelix Cable Modem enclosure provides easy plug-n-play installation. Once the enclosure is mounted, attach the Arris® SURFboard® cable modem to the internal mounting bracket. Once seated on the mounting bracket, a thumb clip keeps it securely in place. Plug the Arris® SURFboard power supply into the pre-wired 120VAC power outlet then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. Cable grommets on the enclosure allow coax and Ethernet cables to be connected to modem. This enclosure is compatible with the following Arris® SURFboard® modems:

• Arris® SB8200 SURFboard® DOCSIS® 3.1 Cable Modem
• Arris® SB6190 SURFboard® DOCSIS® 3.0 Cable Modem
• Arris® SBG10 SURFboard® DOCSIS® 3.0 Cable Modem & Wi-Fi® Router

RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of Arris® SURFboard WiFi cable modem models.

Cooling Fan Option
For installations in hotter enviroments, this enclosure is also available with a thermostat controlled cooling fan. For more information see NP14VFA1C-ARS1.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Arris®, SURFboard® and DOCSIS® are trademarks or registered trademarks of Arris Solutions, Inc.

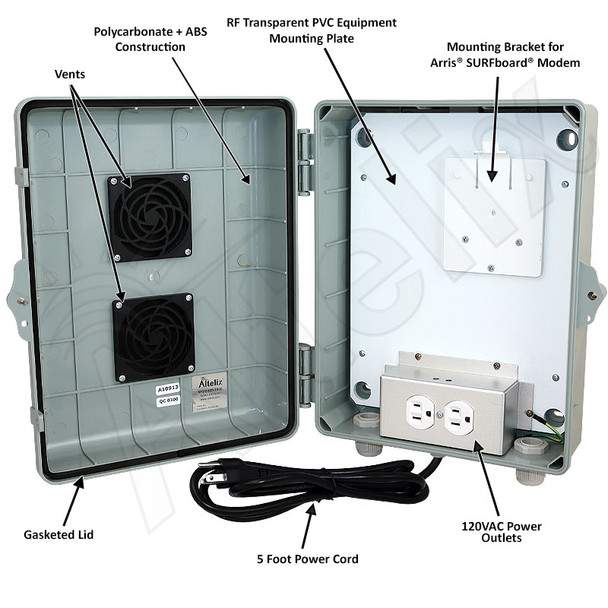

Features

• Designed to fit Arris® SURFboard® Cable Modems
• Plug-and-Play Design, Easy to Install
• Dual 3" Vents with Rain Shields to Expel Heat
• Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
• Pre-Wired 120VAC Power Outlet with 5 foot Power Cord
• Includes Wall Mounting Hardware
• NEMA Type 3R, 3RX / IP24 Rated
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS Construction
• Gasketed Lid Featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
• Optional Pole Mount Kit Available

Applications

• Protection of the Arris® SURFboard® Cable Modems from Theft or Damage
• Arris® SB8200 SURFboard® DOCSIS® 3.1 Cable Modem
• Arris® SB6190 SURFboard® DOCSIS® 3.0 Cable Modem
• Arris® SBG10 SURFboard® DOCSIS® 3.0 Cable Modem & Wi-Fi® Router
• Provide Cable Television and Internet Services to Outdoor Locations
• Concealment of Equipment
