Altelix NP12GYVA1C-YLK1 - Weatherproof Vented Enclosure for YoLink® Hub with 120VAC Outlet and Power Cord

Altelix Weatherproof Vented Enclosure for YoLink® Hub with 120VAC Outlet and Power Cord

Protect Your YoLink® Hub Internet Gateway

The Altelix YoLink Hub Enclosure is a vented weatherproof enclosure designed to provide add security from vandalism and protection from harsh environments. It features two 2¼" vents with rain shields and screens for added ventilation to reduce heat buildup inside the enclosure.

RF Transparent Design Will Not Effect LoRa Signal
The YoLink® Hub enclosure is designed to be RF transparent. Components such as the enclosure itself, the YoLink® Hub mounting cradle and the equipment mounting plate will not affect the LoRa signal range or coverage pattern. One of the advantages of mounting the YoLink Hub in an enclosure outdoors is maximizing range for long range sensors and overcoming the signal loss from concrete or metal buildings.

Install Your YoLink® Hub Securely

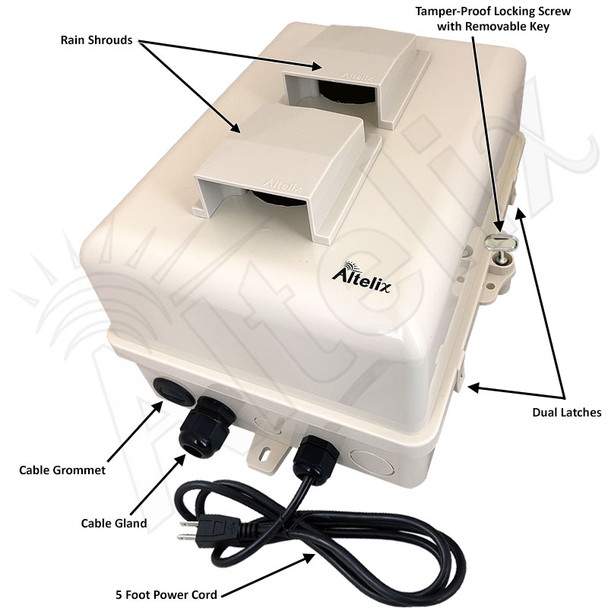

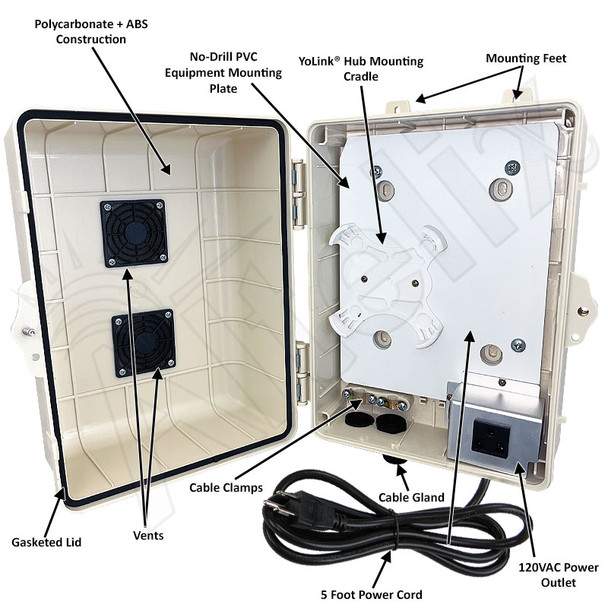

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. Two 2¼" inch air vents with rain shields and screens provide ventilation for the YoLink® Hub. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.

Plug and Play Setup

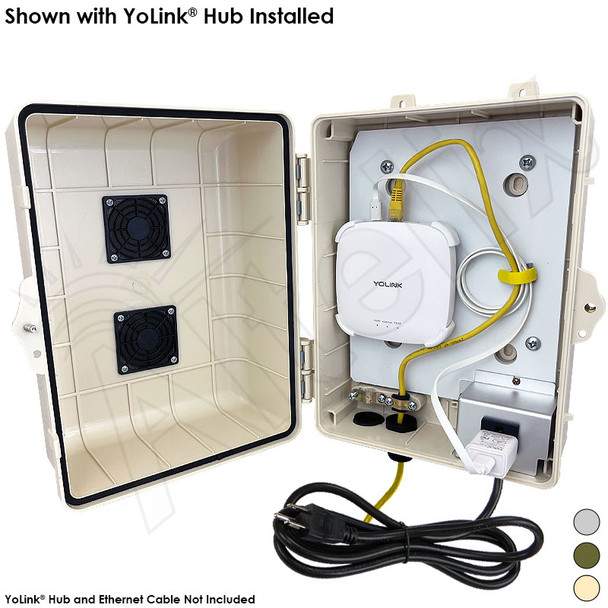

The YoLink® Hub enclosure provides easy plug-n-play installation. Once the YoLink® Hub is securely mounted inside the enclosure, connect its power supply to the internal 120VAC power outlet. A cable gland installed on the enclosure will allow a terminated Ethernet cable to be connected directly to the YoLink® Hub. Simply plug the enclosure's 5 foot power cord into a power outlet and you are up and running.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The external mounting feet on the NP12VA1C-YLK1 allows it to be easily wall mounted with the included hardware. For added security, mounting the enclosure using the internal mount feet can prevent the enclosure from being removed when locked. A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.

Features

• Designed for the YoLink® Hub (Model YS1603-UC)
• Plug-and-Play design, easy to install
• Two (2) 2¼" vents with rain shields and screens
• RF transparent design will not affect LoRa signal range or coverage pattern
• Pre-wired 120VAC power outlet with 5 foot power cord
• Includes cable glands and grommets zip ties, cable management straps and wall mounting hardware
• Meets NEMA 3R, 3RX and IP24
• Weatherproof and UV stable
• Durable polycarbonate + ABS
• Gasketed lid with tamper-proof locking screw and key and provision for padlock
• Integral mounting feet, optional pole mount kit available

Applications

• Protection of the YoLink® from water and dust, physical impact and vandalism
• Indoor or outdoor installations
• Concealment of equipment
• Maximizing range for long range sensors

YoLink® is a trademark or registered trademark of YoSmart, Inc.
