BZBGEAR 8K UHD HDMI 2.1 Extender - 8K30/4K120Hz with IR/eARC/ARC/PoC/RS-232/Ethernet/USB 2.0 and Audio Embedding/De-embedding up to 330ft(BG-EXH-8KC6)
- Brand: BZBGEAR
- P\N: BG-EXH-8KC6
- UPC: 850050134336
Live Chat
Contact Us
Description
BZBGEAR 8K 60fps (4K@120) HDMI/HDBaseT 3.0 Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB and Audio Embedding/De-embedding up to 330ft
OVERVIEW
The BG-EXH-8KC6 is an 8K HDMI and USB over HDBaseT Extender designed to extend the range of uncompressed HD/UHD video and audio signals, including eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals, up to 295ft (90m) using a single CAT6A/7 cable.
This extender supports video resolutions up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, and 4K@60Hz 4:4:4. Additionally, it incorporates eARC/ARC functionality, allowing the transmission of audio signals from the receiver HDMI output pass-through to the transmitter's HDMI input or audio de-embedding to the transmitter's output port.
The device also facilitates USB 2.0 signal transmission with configurable Host/Device settings per device and bi-directional Power over Cable (POC) functionality. For home or commercial applications requiring long-distance signal transmission, the BG-EXH-8KC6 stands out as the ideal 8K signal solution.
FEATURES
- COMPLIANT
HDMI 2.1, HDCP 2.3, and HDBaseT 3.0 compliant
- 8K@30HZ AND 4K@120HZ
Video resolution is up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- 8K EXCLUSIVE FEATURES
Variable Refresh Rate (VRR), Fast as Possible V-active (FVA), Auto Low Latency Mode (ALLM) support
- SMOOTH IMAGE PROCESSING
HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- HDMI AUDIO FORMATS
Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- ADVANCED EDID
Management through EDID DIP switches
- Signal transmission distance up to 295ft (90m) via a single CAT 6A/7 cable
- HDMI re-clocking on the HDBaseT Receiver to help resolve HDMI HDCP compatibility and handshaking issues with displays
- Up to 40 Gbps Fixed Rate Link (FRL) and 18Gbps Transition-Minimized Differential Signaling (TMDS) video bandwidth
- CONFIG DIP switches allow for RS-232 serial port feature control
- Bi-directional support for Ethernet (1Gb), analog audio, IR, RS-232 signal pass-through, and 24V POC
- Support for all industry-standard video resolutions including VGA-WUXGA and 480i - 8K30
- USB 2.0 transmission (with speeds up to 350Mbps)
- The transmitter or receiver can be configured as either a Host or a Device
- Support for eARC/ARC (from RX to TX) sound systems
Specifications
| Technical Specifications | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | Up to 40Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| USB Bandwidth | Up to 350Mbps | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | |||
| Color Depth | 8/10/12-bit | |||
| Audio Formats | HDMI: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X Analog: PCM 2.0 48K | |||
| IR Level | 5Vp-p/12Vp-p | |||
| IR Bandwidth | 20K - 60KHz | |||
| Transmission Distance | MAX: CAT6 = 197ft (60m) / CAT6A/7 = 295ft (90m) | |||
| ESD Protection | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connections | ||||

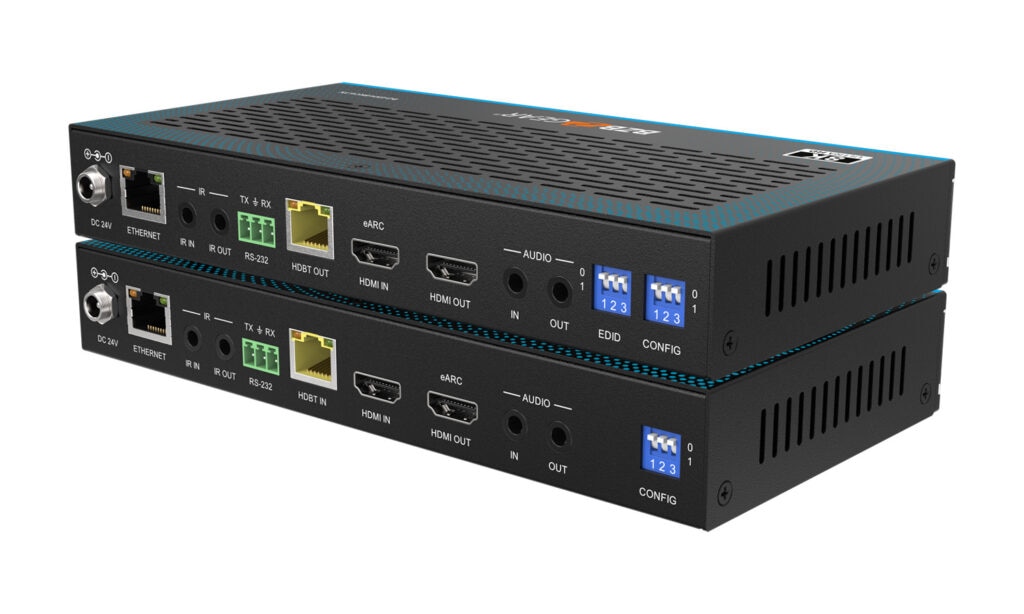

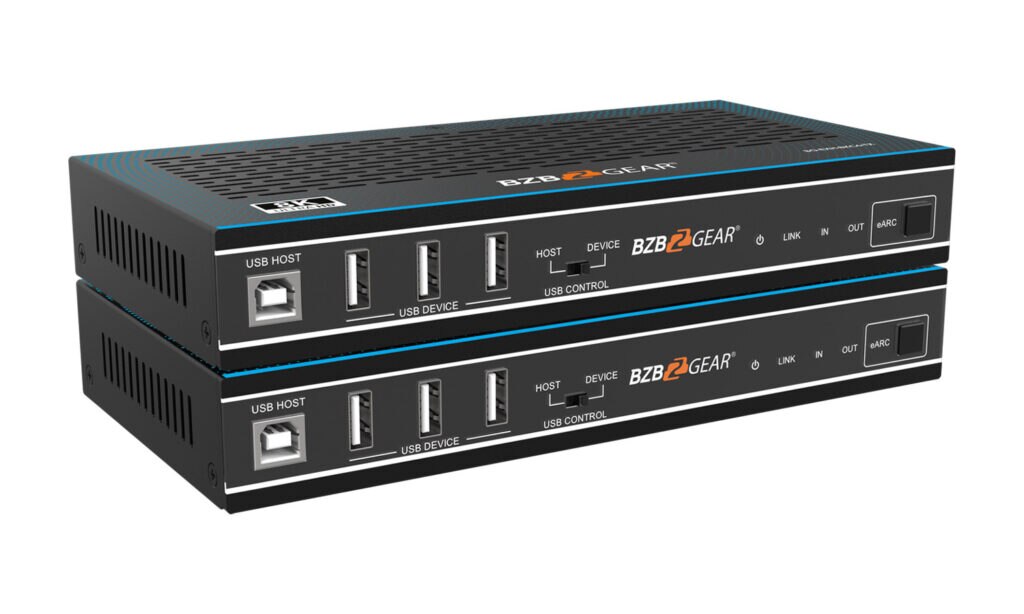

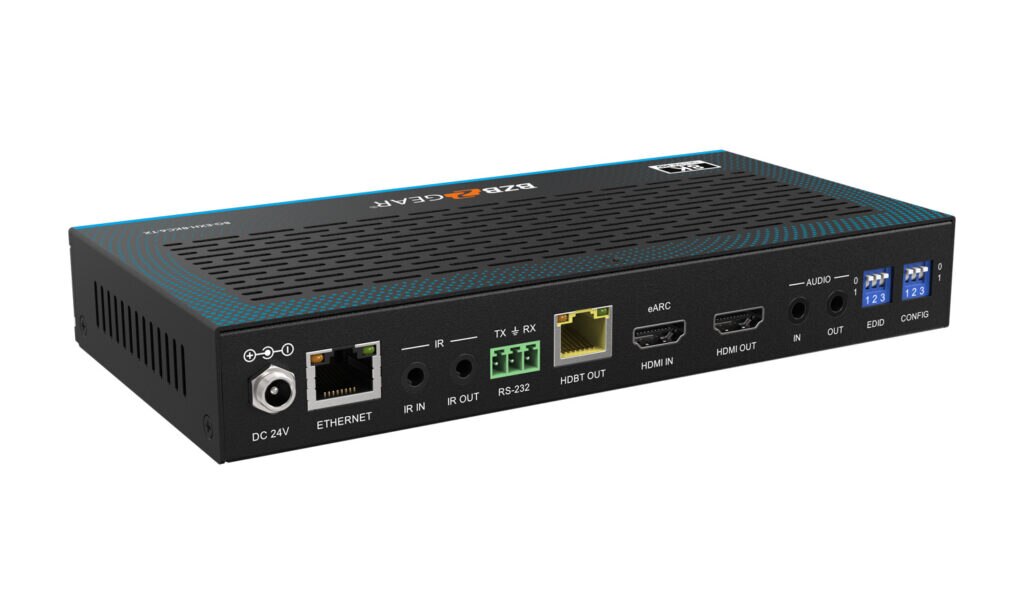

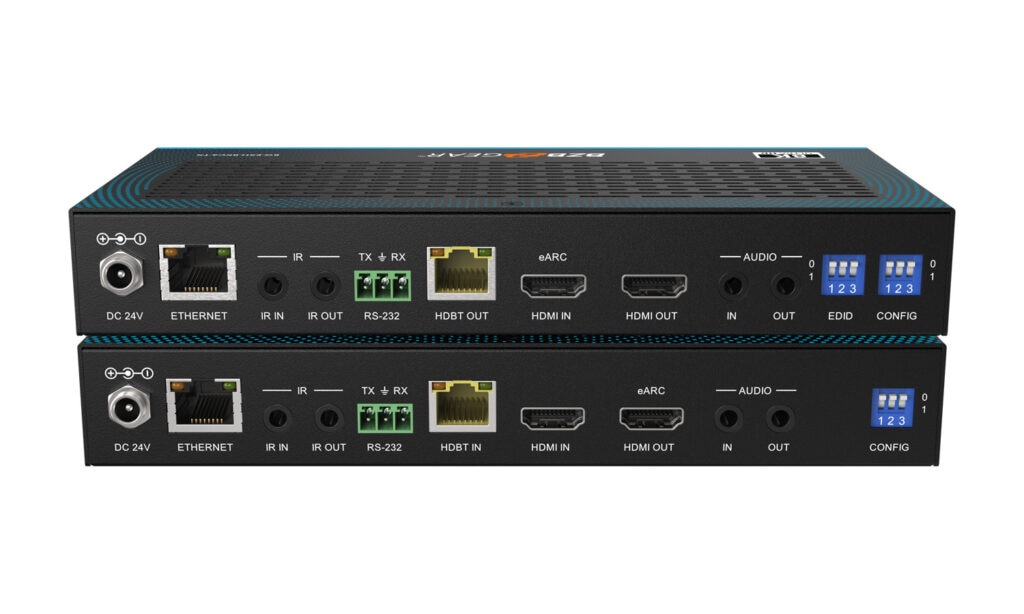

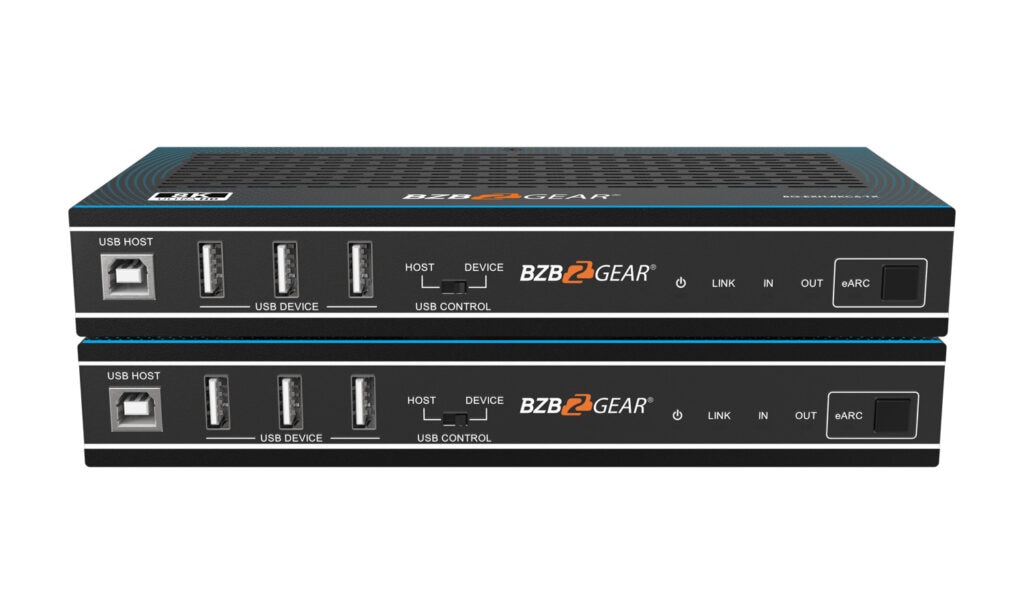

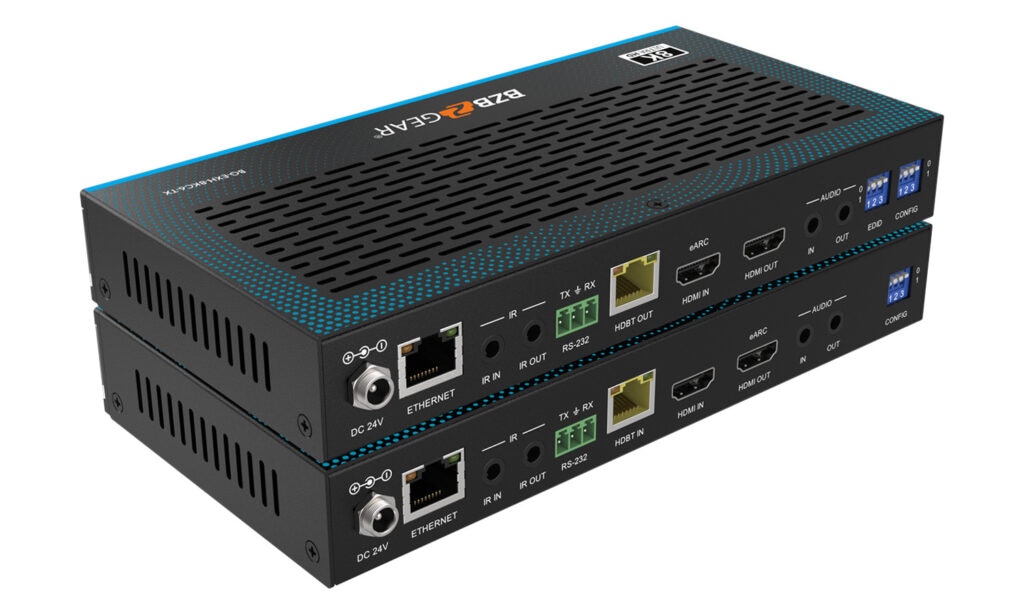

| Transmitter | Input: 1 x HDMI IN [Type A, 19-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] | |||
| Receiver | Input: 1 x HDMI IN [Type A, 19-pin female] 1 x HDBT IN [RJ45, 8-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] | |||
| Mechanical | ||||
| Housing | Front Panel - Aluminium / Enclosure - Metal Composite | |||
| Color | Black | |||
| Dimensions (L x W x H) | 7.9in x 3.9in x 1.2in [200mm x 100mm x 30mm] | |||
| Weight | 1.25 lbs (20oz) [1.1kg] | |||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) | |||
| Power Consumption | Total power consumption: 20.4w (POC) TX/RX Full Load: 9.36w/9.84w; TX/RX No Load: 2.46w/3.36w | |||
| Operating Temperature | 32° - 104°F / 0° - 40°C | |||
| Storage Temperature | -4° - 140°F / -20° - 60°C | |||
| Relative Humidity | 20 - 90% RH (no condensation) | |||
| Resolution | 8K30 | 4K60 | 4K24 | 1080P60 |
| Cable Length | 9.8ft / 3m | 16ft / 5m | 32ft / 10m | 66ft / 20m |
| NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended. |
