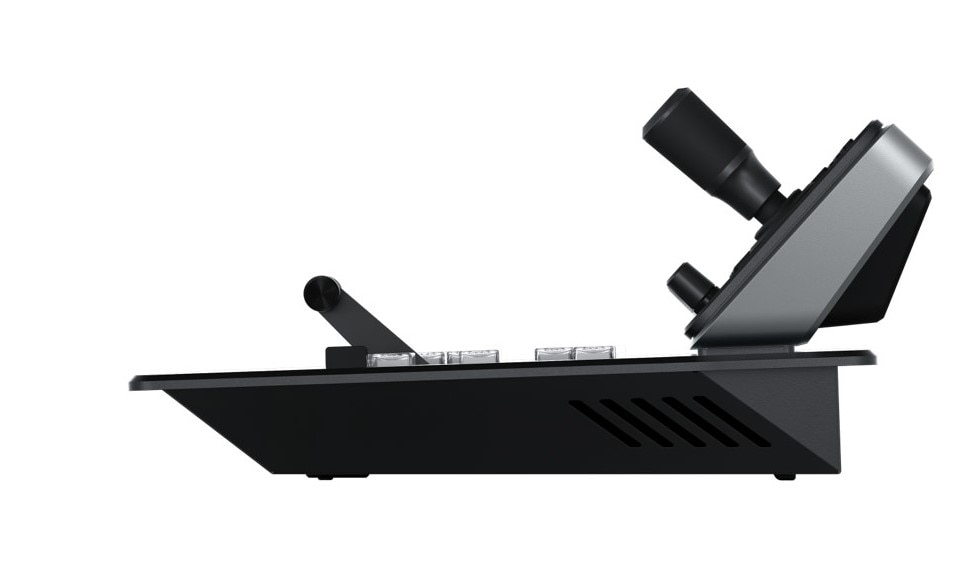

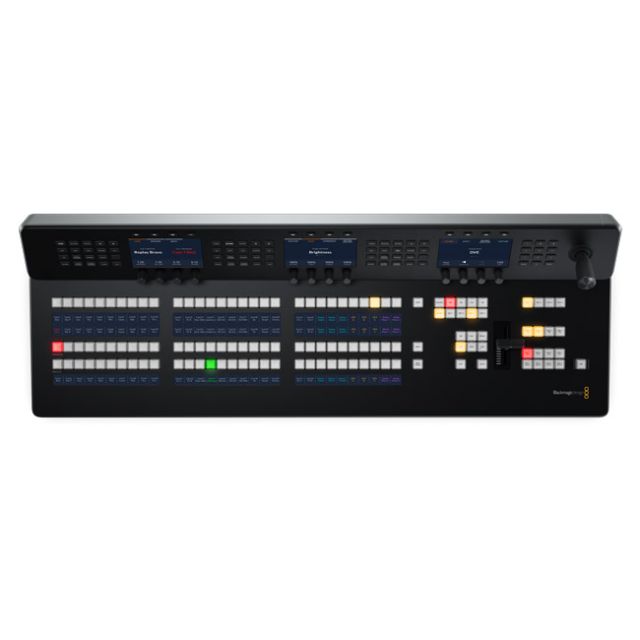

Blackmagic Design ATEM 1 M/E Advanced Panel 30 (BMD-SWPANELADV1ME30)

  • Brand: Blackmagic Design
  • UPC: 9338716008609
(0)No Reviews yet

Availability: In Stock

Your Price: $5,645.00

Do you have questions?

Please contact our experts for assistance.


Blackmagic Design ATEM 1 M/E Advanced Panel 30 (BMD-SWPANELADV1ME30)

The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!

Key Features:

  • 1 M/E hardware panel with 30 input buttons
  • 3 system control LCDs
  • Buttons for control of 4 upstream keyers, 4 downstream keyers and 4 M/E rows
  • Includes a joystick and T‑bar fader

For the ultimate in professional control you can add an optional ATEM Advanced Panel! Although you can use ATEM Constellation with the software control panel, using an ATEM Advanced Panel is so much faster! ATEM Advanced Panels open up the power of your ATEM Constellation because they give you an enormous amount of control, allowing you to setup more complex effects. It's also a nicer way to work because you have physical broadcast quality buttons, knobs and a t‑bar fader so you can access all features in the switcher, all at the same time!

What's in the Box:

  • ATEM 1 M/E Advanced Panel 30
  • Welcome wallet with QR code for software download




4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

Product Specifics

Number of Mix Effects Rows


Direct Cross Points


Shifted Cross Points


Crosspoint Button Type

Tri-Color LED

Preview Transition


Transition Rate Displays

Via main menu

LCD Menu Displays


Menu Control

3 x 20 buttons

Dedicated Macro Buttons

1 x 30

Transport Control Buttons


Destination Bus


Source Select Bus


Fader Bar


3 Axis Joystick


Numeric Keypad



Software Applications

ATEM Software Control Panel.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power


Power Usage


Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)
