Blackmagic Design ATEM 1 M/E Constellation 4K (BMD-SWATEMSCN2-2ME1-4K)

Blackmagic Design ATEM 1 M/E Constellation 4K

The powerful 1 M/E live production switcher includes 10 standards converted 12G-SDI inputs, 6 x 12G-SDI outputs, DVE, 4 chroma keyers, a 16 way multiview, media players, talkback and USB webcam output.

Blackmagic Design’s ATEM Constellation devices are the world’s most powerful HD and 4K live production switchers! These incredibly powerful switchers are available in 1 M/E models with 10 inputs, 2 M/E models with 20 inputs and massive 4 M/E models with 40 inputs! Plus each SDI input features a full standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!

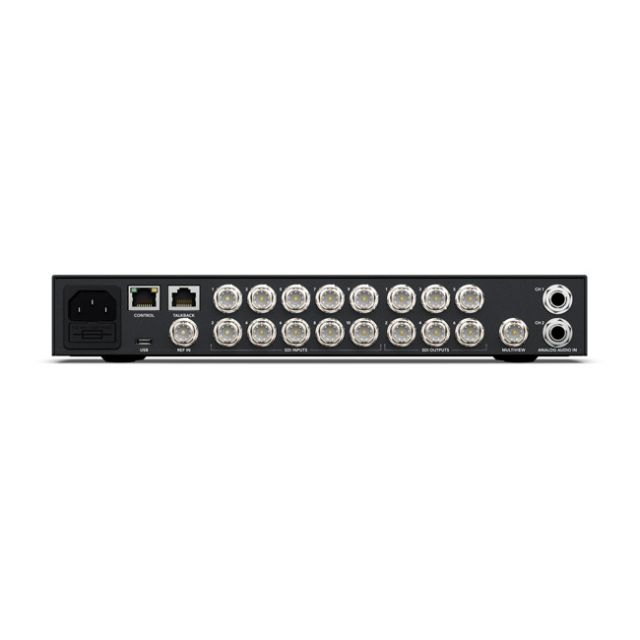

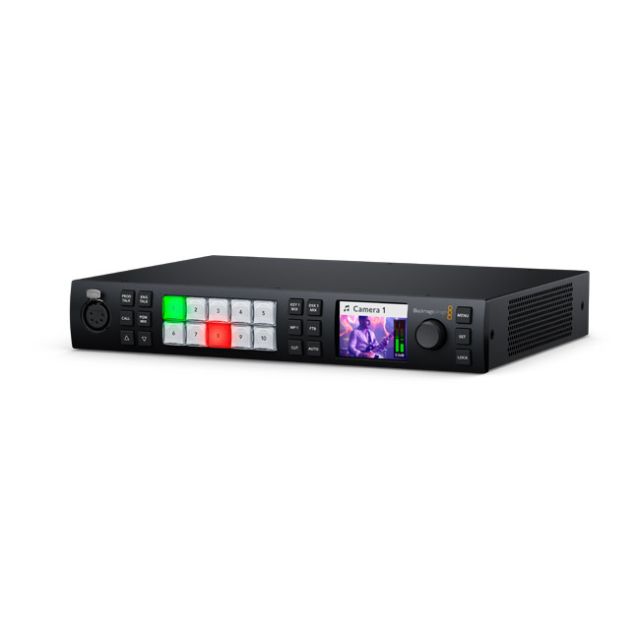

ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

ATEM Constellation switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production. ATEM Constellation is also perfect for house of worship programming as it’s big enough to allow professional results, but it’s very simple to learn so it’s easy to train a volunteer crew!

ATEM Constellation uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it’s correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes! Program/preview operation means ATEM Constellation is the best solution for training students for a career in broadcast television!

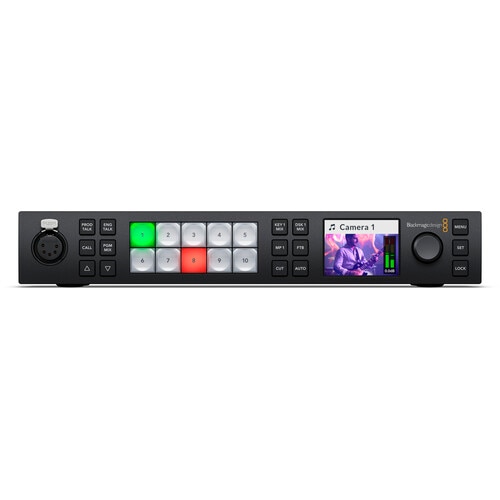

With a control panel built into the front panel, you can simply walk up and operate the ATEM Constellation at any time. ATEM Constellation has similar features to ATEM Mini, so it’s a fantastic upgrade when you need a bigger switcher! Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. You can even control keyers, media and fade to black from the front panel! There is an industry standard 5 pin talkback headset connector on the front panel, with controls for talkback control. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed!

• Supports 12G/3G/HD-SDI at 10-Bit
• 10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
• Up to 16-Multiview Monitoring Windows
• Webcam Output via USB-C
• Frame Rate/Format Converter per Input
• 28-Channel Audio Mixer
• 4 x Upstream, 1 x Downstream Keyer
• Chroma/Luma Keyers
• Color/Pattern Generators
• Hardware/Software macOS/Windows Control

Available M/E Layers
1 M/E

Effect Types
4x Chroma Key
5x Luma Key
1x DVE, Stinger
1x DVE

Downstream Keys
1x Chroma, Luma, DVE

Generators
2x Color
5x Pattern
Audio Mixing
48-Channel Mixing


Processing

Switching Type
Pushbutton, Software

Latency
10 Lines

Processing Resolution
UHD 4K

Color Processing
10-Bit 4:2:2

Input

Number of Video Input Sources
10

Video Inputs
10x BNC (12G-SDI) Female

Input Video Format
SDI
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps

Audio Inputs
2x 1/4" TRS

Embedded Audio Input
SDI: 16-Channel

Output

Video Output Channels
6

Video Outputs
6x BNC (12G-SDI) Female

Output Video Format
SDI
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps

Embedded Audio Output
SDI: 16-Channel
Multiview Output
16-Way Multiview

Connectivity

Other I/O
1x USB-C
1x XLR 5-Pin Talkback Input
1x XLR 5-Pin Talkback Output
1x RJ45 Control, LAN Input/Output
1x RJ45 Talkback Input/Output
1x BNC Blackburst, Reference, Tri-Level Sync Input

Video Standard Compliance
SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10

HDCP Support
No

Display Size
2.2"

Hardware

OS Compatibility
Windows 10 to 11
macOS 13.0 to 14.0

Processor
Not Specified by Manufacturer

Wi-Fi
Yes

Bluetooth
No

Power I/O
1x IEC C13 Input

Power Consumption
Device: 100 to 240 VAC (90 W)

Environmental

Operating Temperature
32 to 104°F / 0 to 40°C

Storage Temperature
-4 to 140°F / -20 to 60°C

Operating Humidity
0 to 90%

General

Rack Form Factor
1 RU

Dimensions
11 x 8.91 x 1.74" / 27.9 x 22.63 x 4.42 cm

Weight
4.12 lb / 1.87 kg
