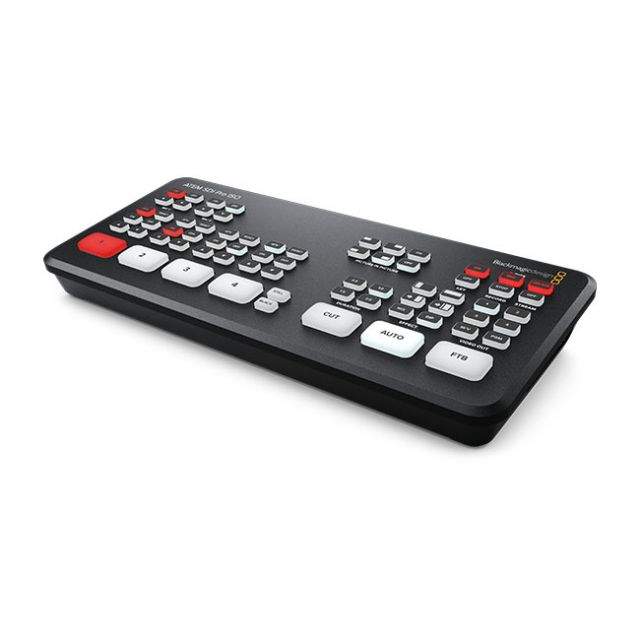

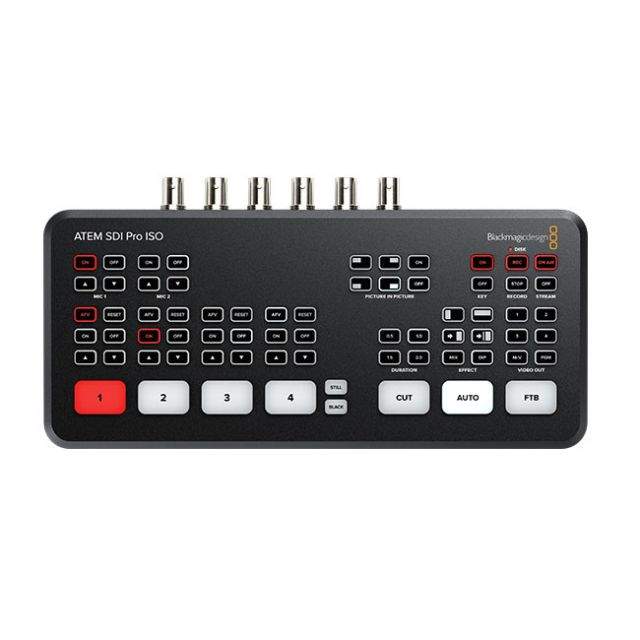

Blackmagic Design ATEM SDI Pro ISO (BMD-SWATEMMXEPBPRISO)

Brand: Blackmagic Design
P\N: BMD-SWATEMMXEPBPRISO
UPC: 9338716007954

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design ATEM SDI Pro ISO (BMD-SWATEMMXEPBPRISO)

Enhance your live production setup with the Blackmagic Design ATEM SDI Pro ISO. This model builds on the ATEM SDI with enhanced features including built-in streaming, recording to five video streams in real-time, and seamless integration with DaVinci Resolve for post-production editing and color correction.

Key Features:

Multiple SDI Inputs: Connect advanced broadcast-quality cameras and recorders through SDI for superior video quality.
Real-Time Multi-Cam Editing: Records clean feeds from all inputs simultaneously, allowing for post-event editing with saved DaVinci Resolve projects.
Portable and Versatile: Ultra-portable design fits into a small bag or backpack, ideal for on-location live productions.
Live Streaming: Direct streaming capabilities to platforms like YouTube, Facebook Live, Twitch, and more via built-in Ethernet.
Advanced Audio and Video Control: Features include picture-in-picture effects, transition settings, and multi-view options.
USB Webcam Output: Provides maximum compatibility with video software by mimicking a simple webcam source.
Mobile Data Connectivity: Supports tethering via 5G or 4G mobile data for remote live production.
Continuous Recording: Direct recording to USB flash disks allows for extended captures in H.264 format with AAC audio.

Perfect for broadcasters and content creators who need a portable, yet powerful live production and streaming solution with professional-grade camera connections and advanced editing capabilities.

What's in the Box:

ATEM SDI Extreme ISO
External 12V DC power supply with international socket adapters

Interested in learning more about this product?Check out our blog!

Features

Live stream directly to platforms such as YouTube, Facebook Live, Skype, Twitch, Zoom, and Microsoft Teams.
Connect up to 8 broadcast cameras for different views of the performance.
Outputs webcam for video software, ensuring maximum compatibility.
Live stream via Ethernet on ATEM SDI Pro.
Connect 5G or 4G phones for mobile data.
Record directly to USB flash disks with ATEM SDI Pro.
Edit live production with separate ISO recordings.
Add exciting video effects.
Work with professional microphones.
Automatically converts any SDI input format.
Includes free ATEM Software Control Panel.

Specifications

Connections

Total Video Inputs

Total Outputs

Total Aux Outputs

Total Audio Inputs

2 x 3.5mm stereo mini jack.

Total Audio Outputs

1 x 3.5mm stereo mini jack.

Timecode Connection

None

SDI Video Inputs

8 x 3G-SDI, 10-bit HD switchable.

2 channel embedded audio.

Video Input Re-Sync

On all 8 SDI inputs.

Frame Rate and Format Converters

On all 8 SDI inputs.

SDI Program Outputs

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

None

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

Rec 709

Colorspace Conversion

Hardware based real time.

Product Specifics

Upstream Keyers

Downstream Keyers

Advanced Chroma Keyers

Up to 4

Linear/Luma Keyers

Up to 4

Transition Keyer

DVE only.

Total Number of Layers

Pattern Generators

Color Generators

DVE With Borders and Drop Shadow

Interface

Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

11 input x 2 channel mixer.

Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.

Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

Media Player

Media Players

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
