Blackmagic Design ATEM Television Studio HD8 (BMD-SWATEMTVSTA-HD08)

Brand: Blackmagic Design
P\N: BMD-SWATEMTVSTA-HD08
UPC: 9338716008043

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design ATEM Television Studio HD8 (BMD-SWATEMTVSTA-HD08)

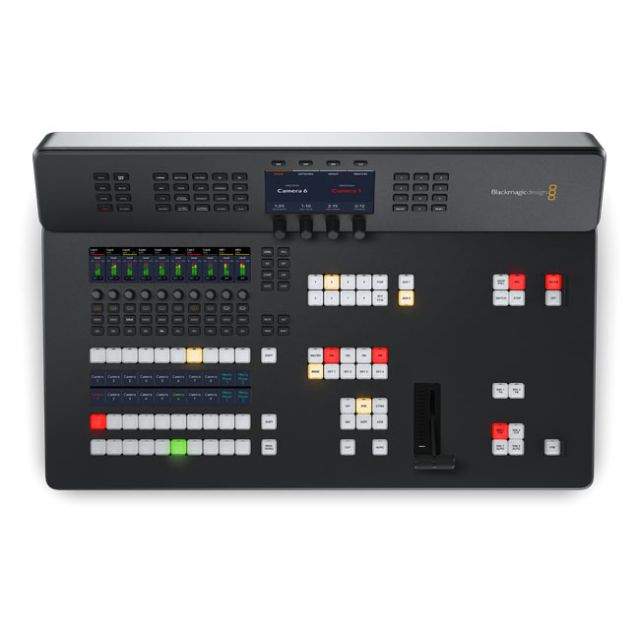

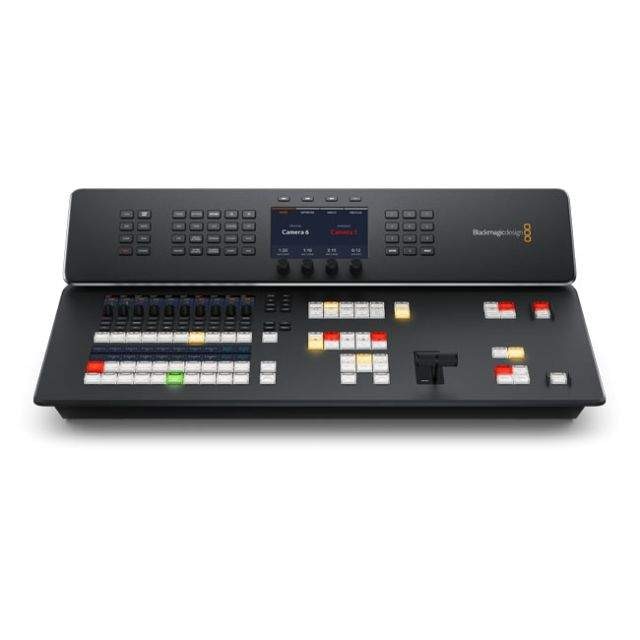

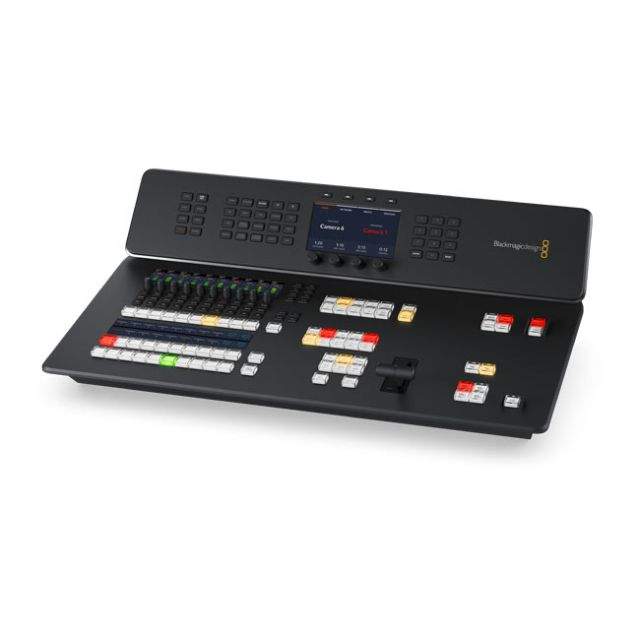

ATEM Television Studio HD8 is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.

Key Features:

Self Contained Broadcast Quality Switcher
Connect up to 8 Broadcast Cameras
Includes Production, Post Production and Distribution!
True Broadcast Style Mix Effects Switching
Easy to Add Exciting Video Effects!

The World's Most Portable All-In-One Television Studio!

The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal network shared storage. There's even an ISO model that records all 8 inputs for editing!

Compact live production switcher with built in broadcast control panel, 8 x 3G?SDI inputs, streaming, recording, multiview, DVE, keyers, USB webcam, media players, talkback and optional cloud storage.

What's in the Box:

ATEM Television Studio HD8
Welcome wallet with QR code for software download

Interested in learning more about this product?Check out our blog!

Specifications

Connections

SDI Video Inputs

SDI Video Outputs

SDI Rates

1.5G, 3G

HDMI Video Outputs

Total Audio Inputs

2 x XLR balanced analog audio,

1 x BNC 32 Ch MADI digital audio,

2 x RCA stereo analog audio,

1 x 5 pin XLR Talkback.

Total Audio Outputs

4 x 1/4 inch Jack analog audio,

1 x BNC 64 Ch MADI digital audio, up to 50 active,

1 x 5 pin XLR Talkback.

SDI Audio Inputs

4 Ch embedded audio on all SDI inputs.

SDI Audio Outputs

2 Ch embedded audio on all SDI outputs.

Timecode Connections

1 x BNC In, 1 x BNC Out.

Reference Input

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Video Input Re-Sync

On all 8 inputs.

Frame Rate and Format Converters

On all 8 inputs.

SDI Aux Outputs

SDI Program Outputs

Webcam Output

2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views

1 x 3G-SDI

1 x HDMI

Remote

RJ12 supports RS-422

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet

4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.

Computer Interface

2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.

Standards

SD Video Standards

None

HD Video Input Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling

4:2:2

Color Precision

10-bit.

Color Space

REC 709

SDI Auto Switching

Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

Product Specifics

Number of Mix Effects Rows

Direct Cross Points

Shifted Cross Points

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

6 rows 24 character LCD

Preview Transition

Source Select Bus

Dedicated Macro Buttons

10 plus shift 10

Transition Type Buttons

Transition Rate

Set via system LCD menu display

Key Buttons

AUX Buttons

Fader Bar

Record Buttons

Stream Buttons

DSK Transition Selectors

Fade to Black Buttons

System LCD Displays

Numeric Keypad

3 Axis Joystick

Upstream Keyers

Downstream Keyers

Advanced Chroma Keyers

SuperSource

DVEs

Linear/Luma Keyers

Transition Keyer (Stinger/DVE)

1 Stinger, 1 DVE.

Total Number of Layers

Pattern Generators

Color Generators

Control Panel

Integrated panel with full control of switching and settings.

Routable Windows

Windows Source Labels

Yes

Tally

Red for program and green for preview indication.

Talkback Support

Yes

Mix Minus Support

Yes

Streaming

Direct Streaming

Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C expansion port can record directly to external media.

Video Recording

Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.

Media Format

Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

Multi View Monitoring

1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters.

Multi View Video Standard

Display Minimum Resolution

1366 x 768

Media Player

Media Players

Channels

Fill and key for each media player.

Media Pool Still Image Capacity

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Clip Capacity

2 x up to 1080p60.

Media Player Clip Length in 720 HD

400 frames.

Media Player Clip Length in 1080 HD

200 frames.

Media Pool Video File Format

TGA sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Processing

Processing Delay

< 10 lines when genlocked and in the same format as the switcher.

Audio Mixer

58 Channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Camera Control

When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
