Blackmagic Design HyperDeck Studio HD Plus (BMD-HYPERD-ST-DCHP)
- Brand: Blackmagic Design
- P\N: BMD-HYPERD-ST-DCHP
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

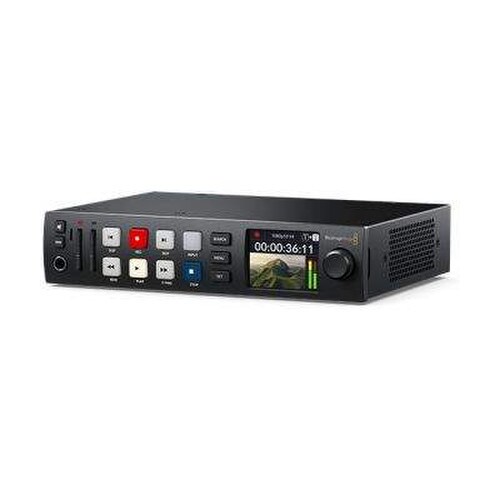

Blackmagic Design HyperDeck Studio HD Plus (BMD-HYPERD-ST-DCHP)
Experience the power of a compact, broadcast-quality record/playback deck with the Blackmagic Design HyperDeck Studio HD Plus. This device is designed to accompany you on location, in the studio, or built into a rack, offering unparalleled convenience and flexibility.
Key Features
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps

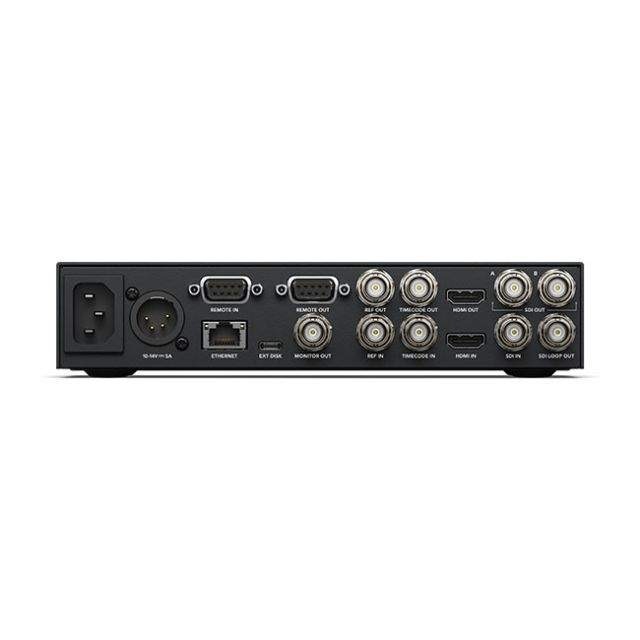

- 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
- 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit

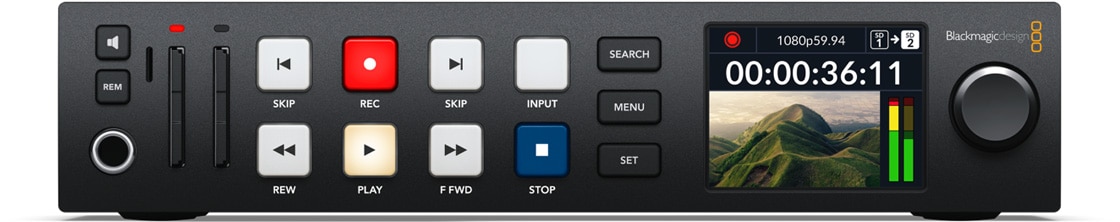

- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/2 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.
Experience the Blackmagic Design Difference
Blackmagic Design is renowned for its commitment to quality and innovation. The HyperDeck Studio HD Plus is no exception, offering a compact yet powerful solution for all your recording and playback needs. Whether you're on location or in the studio, this device is designed to deliver exceptional performance every time.
Don't miss out on the opportunity to elevate your recording and playback capabilities. Order the Blackmagic Design HyperDeck Studio HD Plus today and experience the difference for yourself!
Specifications
Connections
Standards
Media
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Control
Software
Software Included
Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Displays
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED indicator lights above the SD media slots.
Power Requirements
Accessories
Optional Accessories
HyperDeck Extreme Control
Teranex Mini Rack Shelf
Physical Installation
Half rack unit width, 1 rack unit height.
Physical Specifications
Environmental Specifications
