Blackmagic Design HyperDeck Studio HD Pro (BMD-HYPERD-ST-DFHP)

Blackmagic Design HyperDeck Studio HD Pro (BMD-HYPERD-ST-DFHP)

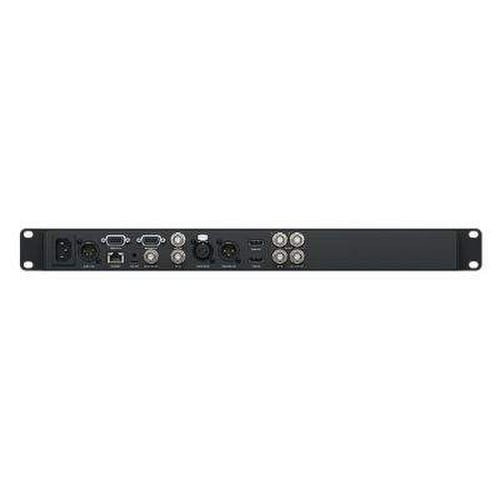

The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there's space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.

Key Features:

• 1 RU File-Based Video Recorder
• Uncompressed & H.264 10-Bit 4:2:2 Video
• Records Compressed in ProRes / DNxHD
• 2 x 2.5 inch SSD Slots and 2 x SD Card Slots
• 1 x 6G-SDI Input, 2 x 6G-SDI Outputs
• 1 x HDMI Input, 1 HDMI Output
• 1 x SDI Loop Output, 1 x USB Type-C Out
• Speaker, Remote, 1G Ethernet Port
• Front Panel Buttons, Jog Wheel, LCD
• Timecode, Ref, and RS-422 Input/Output

Professional broadcast decks that record and playback using SD cards and SSD media!

HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio.When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!

Elegantly Designed Professional Broadcast Deck

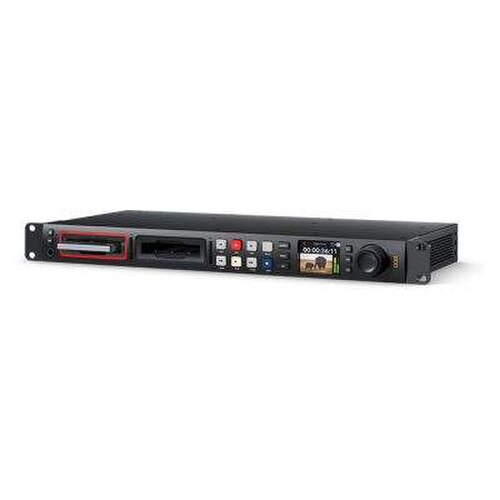

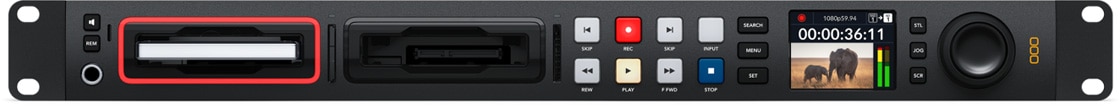

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel.The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!

Perfect for LiveProduction, Broadcast and Archive

Mastering Recorder - All models record to H.264, ProRes and DNx files, so are perfect for recording broadcast masters! You can even use PCM or AAC audio. You get everything you need to send shows to broadcasters and for uploading to YouTube.

ISO Recording - All models feature timecode and reference generators, with outputs to loop to other HyperDecks. This means you can build a rack of HyperDeck Studios for ISO camera recording, allowing multi-cam editing after live events! You can even sync cameras to the SDI output and the SDI input has a frame sync!

Digital Signage - HyperDeck Studio is perfect for digital signage as all models have HDMI output for connecting to large screen TVs and projectors. The built in sync generator lets you combine multiple HyperDecks for large multiscreen video walls. There's even FTP for file upload and a protocol for remote control!

Broadcast Archive - HyperDeck Studio supports all SD and HD standards so it’s ideal for archiving old television shows from broadcast decks such as Digital Betacam, Betacam SP, 1 inch, U-matic and VHS. You can even record direct to H.264 to maximize storage. For analog decks, just add a Mini Converter Analog to SDI!
