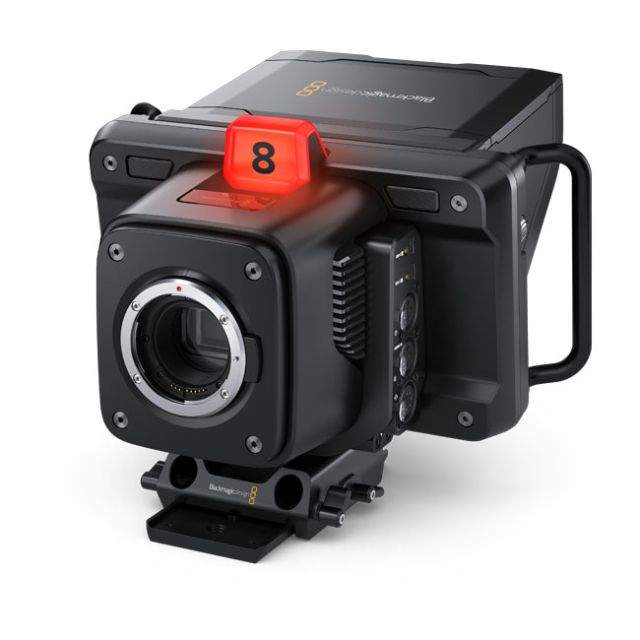

Blackmagic Design Studio Camera 6K Pro (BMD-CINSTUDMFT-G26PDK)

Brand: Blackmagic Design
P\N: BMD-CINSTUDMFT-G26PDK
UPC: 9338716008036

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design Studio Camera 6K Pro (BMD-CINSTUDMFT-G26PDK)

Introducing the Blackmagic Design Studio Camera 6K Pro, a breakthrough in portable studio camera technology. This advanced camera combines the practicality of portable design with the power of a high-end studio camera, making it perfect for live productions and professional filmmaking.

Key Features

Native 6K Sensor: Achieve stunning resolution and cinematic depth of field with a native resolution of 6144 x 3456.
Dynamic Range: With 13 stops of dynamic range, capture superior detail in both shadows and highlights.
Remote Controllable ND Filters: Built-in 2, 4, and 6 stop ND filters enhance shooting in various lighting conditions.

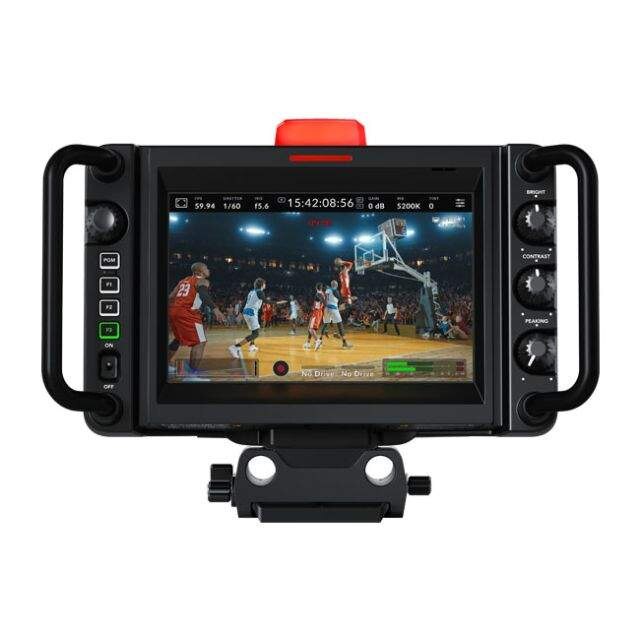

Large 7-Inch Viewfinder: A high-brightness screen makes it easy to frame shots and focus accurately even in bright conditions.
Comprehensive Connectivity: Features 12G-SDI, HDMI, and 10G Ethernet connections for extensive compatibility and control.

The Blackmagic Studio Camera 6K Pro is designed not only for traditional studio setups but also excels in live event coverage, sports broadcasting, and complex educational or corporate productions. Its light, durable design and advanced features like talkback, tally, and camera control integrate seamlessly into any professional workflow.

Enhance your production quality and efficiency with the Blackmagic Design Studio Camera 6K Pro. Explore new creative possibilities in filmmaking and live production with this versatile and powerful camera.

What's in the Box:

Blackmagic Studio Camera 6K Pro
Blackmagic Studio Camera Sun Shade
Tripod Mount compatible with 15mm lightweight rails
Tripod Mount Plate
Turret Dust Cap
External 12V DC power supply with locking connector and international sockets adapters for most countries.
Welcome wallet with QR code for software download
DaVinci Resolve download card
Blackmagic Design sticker

Interested in learning more about this product?Check out our blog!

Features

Camera Features

Effective Sensor Size

23.10mm x 12.99mm (Super 35)

Lens Mount

Active EF mount.

Lens Control

Iris, focus, zoom on supported lenses.

Dynamic Range

13 Stops.

Dual Native ISO

0dB and 18dB gain.

Sensitivity at 0dB Gain

f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

Signal to Noise Ratio

64.62dB for 2160p

Ultra HD scaled from 5.3K

Recording Resolutions

6144 x 3456 (6K) up to 50 fps

6144 x 2560 (6K 2.4:1) up to 60 fps

5376 x 3024 (5.3K 16:9) up to 60 fps

3840 x 2160 (Ultra HD) up to 60 fps

Video Output Standards

2160p, 1080p, 1080i

Frame Rates

Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions.

Built in ND Filters

Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.

Focus

Auto focus available using compatible lenses.

Screen Dimensions

7 inch 1920 x 1200

Screen Type

LCD capacitive touchscreen.

Screen Brightness

2000 nits

Controls

Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.

Mounting Options

2 x 1/4 inch tripod mount.

1 x 3/8 inch tripod mount.

Specifications

Connections

SDI Video Inputs

SDI Video Outputs

SDI Rates

1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

Analog Audio Input

2 x XLR analog switchable between mic and line levels. Phantom power support.

1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Output

1 x 5-pin XLR for talkback headset.

1 x 3.5mm TRRS mini jack for headphones with mic.

SDI Audio Output

2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI.

2 talkback channels on 15 and 16.

Reference Inputs

Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.

Remote Control

Remote camera control over SDI, HDMI or Ethernet.

Ethernet

10Gb/s

Computer Interface

2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Streaming

Direct Streaming

Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Streaming Platforms

ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,

1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24‑bit.

Media

2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 3:1
Blackmagic RAW Constant Bitrate 5:1
Blackmagic RAW Constant Bitrate 8:1
Blackmagic RAW Constant Bitrate 12:1
Blackmagic RAW Constant Quality Q0
Blackmagic RAW Constant Quality Q1
Blackmagic RAW Constant Quality Q3
Blackmagic RAW Constant Quality Q5

Storage Features

Storage Type

2 x USB‑C 3.1 Gen 1 expansion ports for external media.

Recording Formats

Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate.

Storage Rates

Storage rates based on 30 frames per second.

6144 x 3456 (6K)

Blackmagic RAW 3:1 - 323 MB/s
Blackmagic RAW 5:1 - 194 MB/s
Blackmagic RAW 8:1 - 121 MB/s
Blackmagic RAW 12:1 - 81 MB/s
Blackmagic RAW Q0 - 242 to 483 MB/s
Blackmagic RAW Q1 - 162 to 387 MB/s
Blackmagic RAW Q3 - 108 to 277 MB/s
Blackmagic RAW Q5 - 65 to 162 MB/s

6144 x 2560 (6K 2.4:1)

Blackmagic RAW 3:1 - 240 MB/s
Blackmagic RAW 5:1 - 144 MB/s
Blackmagic RAW 8:1 - 90 MB/s
Blackmagic RAW 12:1 - 60 MB/s
Blackmagic RAW Q0 - 180 to 359 MB/s
Blackmagic RAW Q1 - 120 to 287 MB/s
Blackmagic RAW Q3 - 80 to 205 MB/s
Blackmagic RAW Q5 - 49 to 120 MB/s

5376 x 3024 (5.3K 16:9)

Blackmagic RAW 3:1 - 248 MB/s
Blackmagic RAW 5:1 - 149 MB/s
Blackmagic RAW 8:1 - 94 MB/s
Blackmagic RAW 12:1 - 63 MB/s
Blackmagic RAW Q0 - 186 to 371 MB/s
Blackmagic RAW Q1 - 125 to 297 MB/s
Blackmagic RAW Q3 - 84 to 212 MB/s
Blackmagic RAW Q5 - 50 to 125 MB/s

3840 x 2160 (Ultra HD)

Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s

Constant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.

Control

External Control

Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.

Camera Control REST API over Ethernet or USB Ethernet for external control via HTTP when used with REST client applications such as Postman.

Network Management

NTP

Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.

Web Media Manager

Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.

FTP

Download files from any drive attached to your camera using FTP.

SMB

File sharing using SMB

Color Corrector

DaVinci YRGB

Talkback and Tally

Live Tally Indicator

1 x front facing for talent,

1 x rear facing for operator.

Talkback

SDI Channels 15 and 16.

Software

Software Included

Blackmagic Camera Setup for Mac and Windows.

Operating Systems

Mac 12.0 Monterey,
Mac 13.0 Ventura or later.

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

1 x External 12V DC 60W power supply.

Power Inputs

1 x 12V DC locking 5.5 mm barrel connector.

1 x 12V DC 4 pin XLR input for external power supply or battery use.

1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.

Power Usage

32 ‑ 52 W using DC input.

38 ‑ 59 W using Type 4 PoE input.

Optional Accessories

Blackmagic Focus Demand

Blackmagic Zoom Demand

Blackmagic Studio Converter

ATEM Mini switchers

ATEM SDI switchers

ATEM Constellation switchers

ATEM Television Studio switchers

ATEM Streaming Bridge

Blackmagic MultiDock 10G

HyperDeck Studio HD Plus

HyperDeck Studio 4K Pro

SmartView 4K

Blackmagic Cloud Pod

Blackmagic Cloud Store

Blackmagic Cloud Store Mini 8TB

Ultimatte 12 HD Mini

Ultimatte 12 HD

Ultimatte 12 4K

Blackmagic 3G SDI Shield for Arduino

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Downloads

Manual
