CC Vector Extended Long Range WiFi Receiver System 2.4 GHz (VEC3)

  • Brand: C.Crane
  • P\N: VEC3
2 Reviews

Availability: In Stock


Your Price: $319.99

Do you have questions?

Please contact our experts for assistance.

Description

Works With All Devices!

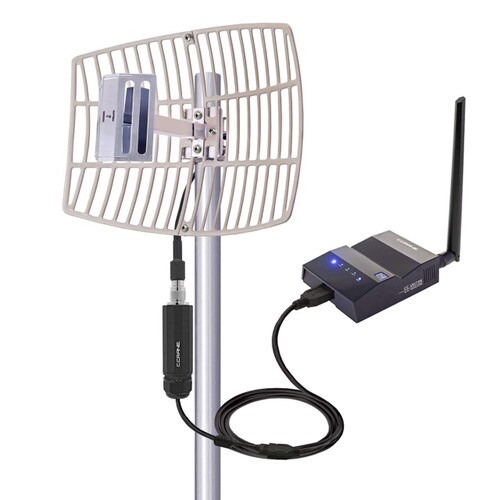

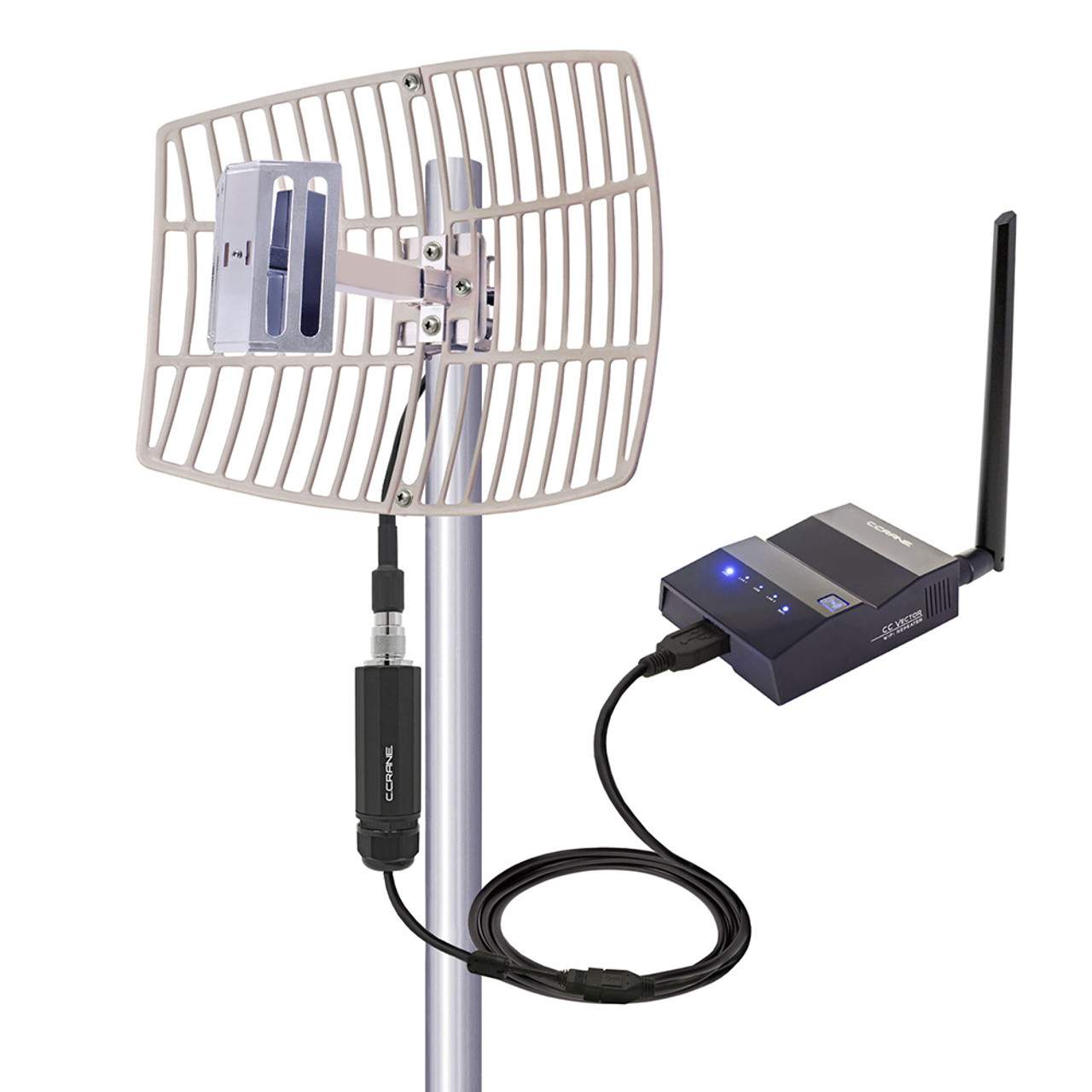

How it Works: Our directional antenna receives a distant available WiFi signal about 1/2 mile away (max. range is about 3 miles)* and connected with our CC Vector repeats a new WiFi signal in a dead zone, for use by all devices in your barn, shop, office, or other building. Sharing internet is a great way to save money! Range depends on obstructions and the signal strength of the network you're connecting to.

The system uses a directional 15dBi parabolic antenna to increase speed and reduce interference from other WiFi networks. The heavy-duty system mounts outdoors (mast not included) to a fixed location and then connects to the CC Vector inside.

The receiving antenna's range exceeds average WiFi range extenders designed for in-home use and the system works on all Windows®, Android®, Apple®, iPhone® and Smart TVs.

There are two available Ethernet jacks on the CC Vector for hardwiring additional computers or routers. It uses the most popular WiFi band at 2.4GHz. It also supports 5 GHz for shorter ranges. The setup is simple and easy for basic computer users.

In the Box
  • CC DX Mile™ & 15dBi Point to Point WiFi Antenna
  • 30 foot USB Cable
  • Aluminum/Stainless steel pole mount w/ "U" bolts (pipe mast not included)
  • Weatherproof Coaxial Sealant
  • Silicone Grease
  • 1.5 foot USB Amplifier cable
  • CC Vector WiFi Repeater
  • CC Vector WiFi Repeater AC Adapter
  • CC Vector WiFi Repeater Quick Start Setup Guide
  • Point to Point Antenna Assembly Guide

    Features

    General Features:
    • Repeats WiFi Signal to Multiple Devices such as: gaming consoles, Windows®, Android®, Apple®, iPhone® and Smart TVs, internet radios and more.
    • Router to repeater - about a ½ mile away (max. range is about 3 miles)*.
    • Includes the CC DX Mile™ receiver, 15dBi Point to Point WiFi antenna, CC Vector WiFi Repeater, AC Power Adapter, 30' USB Split Cable, 1.5 foot USB Amplifier Cable, Mount & Hardware, Sealant and Silicone Grease. Mast not included.
    • The CC Vector's 6" antenna can be upgraded for more broadcast range (such as over a hill or around a corner).
    • WPS button for quickly connecting a new WiFi device.
    • Includes 2 Ethernet ports for connecting a second router, computer or wired device.
    • AC/DC Adapter Specifications:
      Input: AC 100-240 Volts, 50-60 Hz 0.28 Amp
      Output: DC 12 Volts, 1 Amp
      Polarity: Center Tip Positive

    Specifications

    CC DX Mile™ Long Range General Specifications
    Wireless Standard:802.11b
    802.11g
    802.11n
    802.11ac
    *Sold after 5/9/22
    Frequency Band:2.4GHz / 5GHz
    Chipset Gain:23 dBm
    Power Consumption Voltage:5V±%
    Operation mode:Infrastructure or Ad hoc
    Security:WEP 64/128, WPA, WPA2, WPA-PSK, 802.1x support
    Wireless Broadcast Range:Up to 3 mile (with 15dBi antenna and no obstructions whatsoever)
    Certifications:FCC, IP65
    Antenna Dimensions:15.75" w x 11.8" H (not including mounting bracket)
    Antenna Weight:3.3 lbs.
    Operating Temperature:32° F - 122° F
    Storage Temperature:14° F - 149° F
    Warranty:1-Year Limited
    Note: Specifications are subject to change without notice.

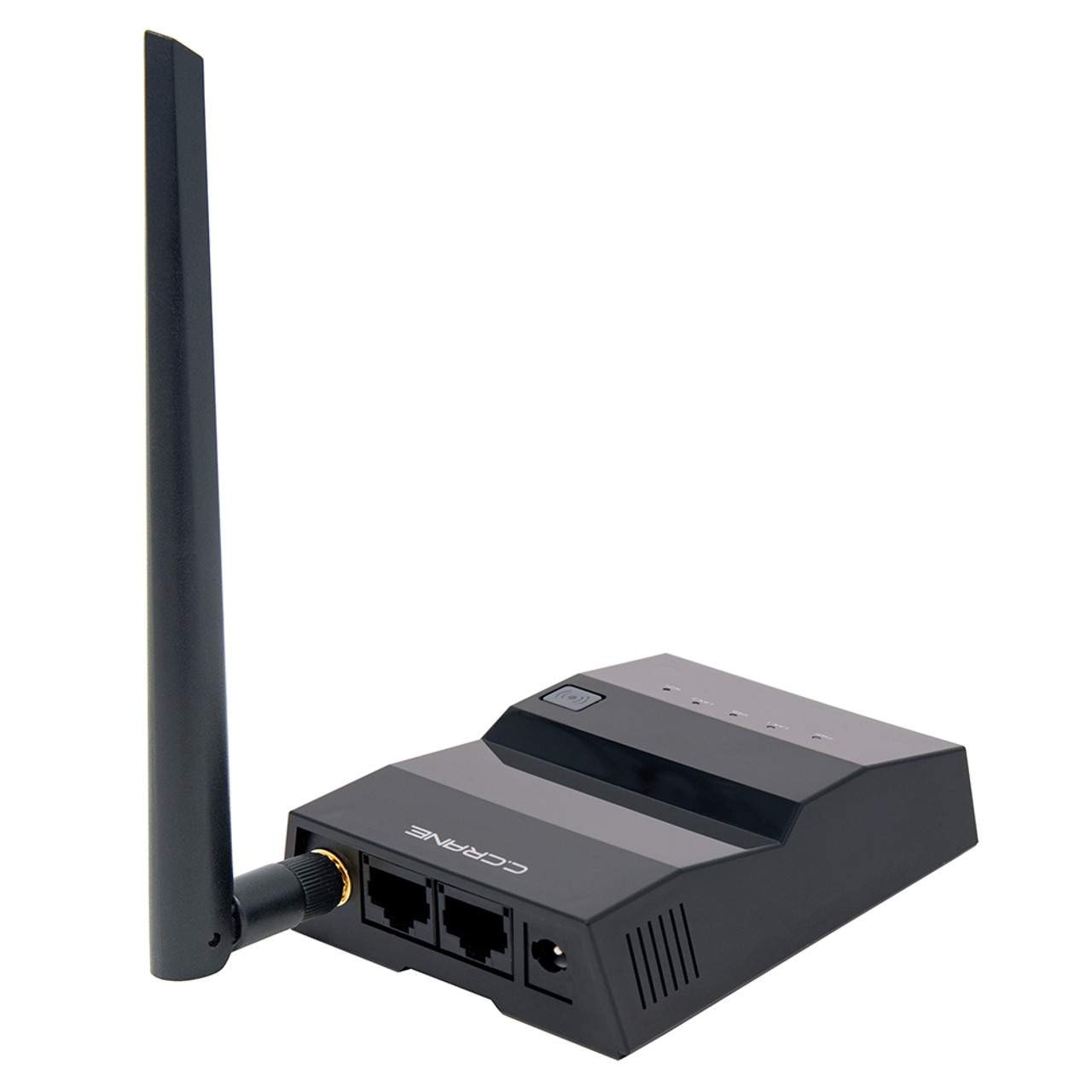

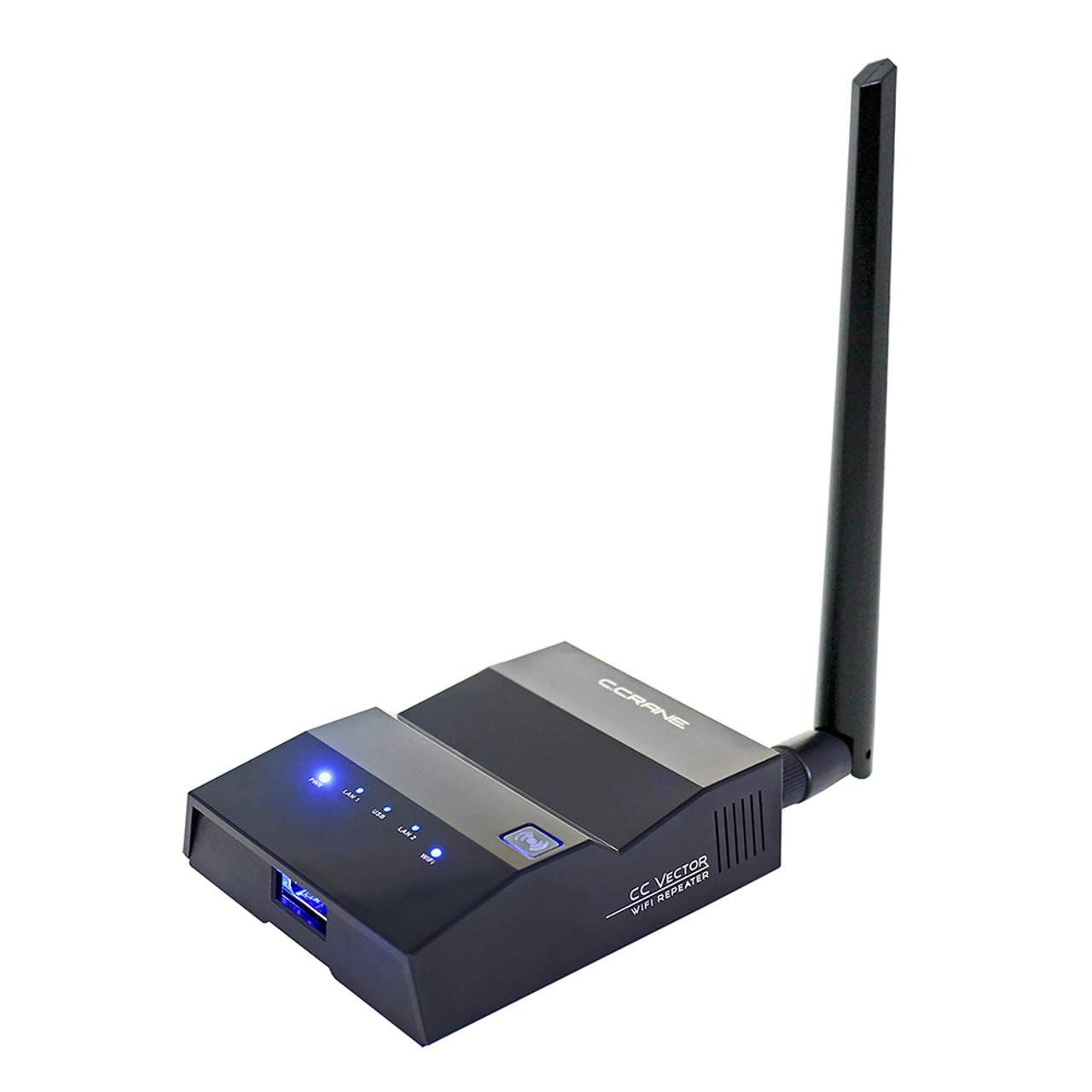

    CC Vector WiFi Repeater General Specifications
    StandardsWired: IEEE 802.3/802.3u
    Wireless: 802.11b, 802.11g, 802.11n
    InterfaceWAN: 10/100BASE-TX Port * 1
    LAN: 10/100BASE-TX Port * 1
    USB 2.0 Port * 1
    SecurityWEP Encryption
    WPA/WPA2-PSK (Pre-Shared Key)
    WPA/WPA2 AES
    WiFi Protected Setup (WPS)
    PowerInput: 100-240V ~50/60Hz @ 0.35A
    Output: 12V, 1A
    Compatible USB Wireless AdapterSuper USB WiFi Antenna DX
    Super USB WiFi Antenna 3
    CC X Mile Omni
    CC X Mile Long Range
    Versa WiFi USB Adapter 3
    RT3070 USB Adapter (Any)
    Frequency2412~2462MHz (FCC)
    2412~2472MHz (ETSI)
    2412~2484MHz (Japan)
    ModeReceiver Sensitivity (dBm)
    802.11n20MHz: MCS0 : -90, MCS7 : -71
    40MHz: MCS0 : -88, MCS7 : -69
    802.11g6Mbps : -92
    54Mbps : -75
    802.11b1Mbps : -95
    11 Mbps : -90
    Warranty:1-Year Limited
    Note: Specifications are subject to change without notice.
