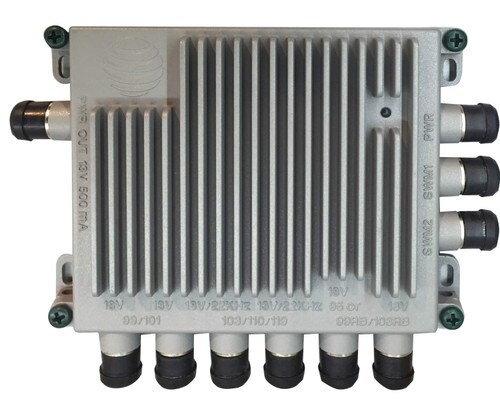

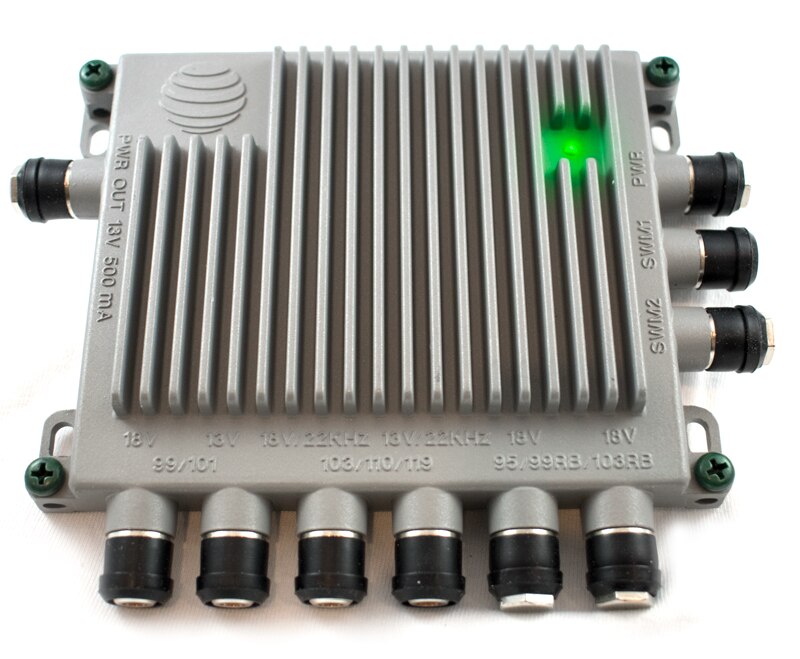

DIRECTV 26 Tuner Satellite Multiswitch with SWM-8/16 Power Inserter (DSWM30-PI29Z)

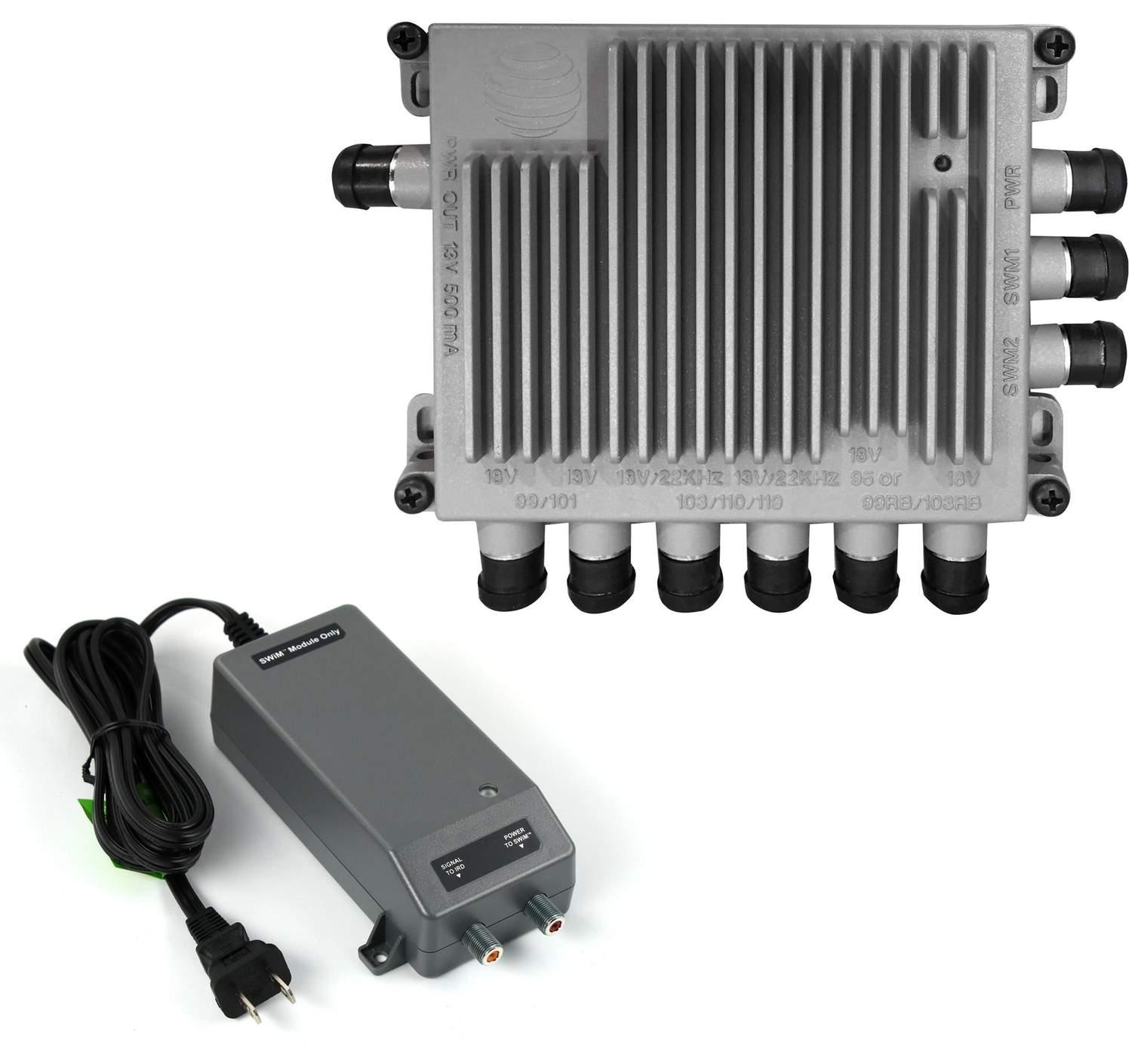

DIRECTV 30-Tuner Satellite Multiswitch with 29V Power Inserter (DSWM30-PI29Z)

Best For

Professional DIRECTV SWM installations needing a high-capacity external multiswitch plus a compatible 29-volt power inserter.

Why Choose It?

The kit combines a DIRECTV SWM multiswitch described as feeding two banks of 13 tuners with a 29V power inserter for compatible SWM-8/SWM-16 power applications.

Key Benefits

• Two banks of 13 tuners with no MoCA/MRV crossover stated in existing information
• Described as a replacement for SWM-8, SWM-16, and SWM-32 multiswitches
• Compatible with previous-generation Slimline dishes according to existing information
• Existing information references Genie and Genie 2 compatibility
• WorldDIRECT support with WD-DIPLEXER-09 sold separately
• For referenced 4K installations, existing information calls for SL5RB or SL3RBAH LNB with six coax cables to the SWM
• Output level -25 dBm stated in existing information

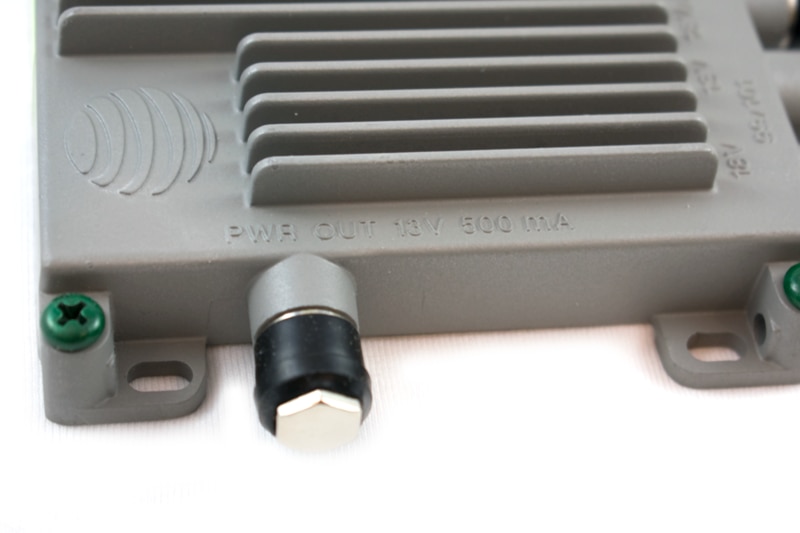

• Powers compatible coax-powered devices up to 13V, 500mA according to existing information
• 29V SWM-port output
• UL Listed according to existing information

Who Should Buy It?

Professional DIRECTV installers who have confirmed current SWM architecture, receiver/tuner counts, LNB type, satellite configuration, MoCA/MRV requirements, power insertion, coax topology, and current DIRECTV equipment compatibility.

Receiver Requirements

Existing information lists SWM-capable receivers including H21 or higher, D12, HR20 or higher, and HS17.
