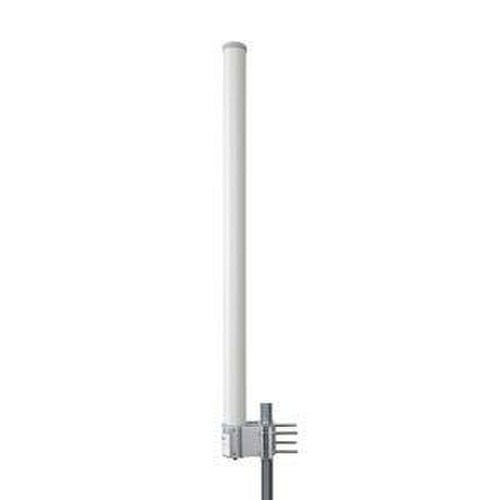

KP PERFORMANCE KP-35DOMNI-HV 3/5GHZ 12DBI DUAL BAND/DUAL POL OMNI

4-port dual-band OMNI antenna, 3300-3800 MHz / 5150-5850 MHz, High gain (11/12 dBi) and Horizontal/Vertical Polarization

• Two frequencies in a single radome enclosure with one mounting point

• Dualband 2x2 MIMO or 4x4 MIMO with carrier aggregation

• Highest gain dualband OMNI on the market

Specification

• Frequency Range: 3.3 GHz to 3.8 GHz / 5.15 GHz to 5.85 GHz

• Polarization Type: Horizontal / Vertical

• Gain: 11 dBi / 12 dBi

• Vertical Beamwidth: 7.2° / 7.2°

• Horizontal Beamwidth: 360°

• Electrical Downtilt: 2° / 2°

• VSWR: 1.7:1 Typical

• Cross Polar Ratio: 20 dB

• Port Isolation: 30 dB

• Connector Type: 4 x Type N Female
