Televes Mast amplifier with BOSS-Tech and “F” Power Supply Unit - 1 input (560383)
- Brand: Televes
- P\N: 560383
- UPC: 8424450214961
Description
Televes Single-Input Mast Amplifier with BOSS-Tech and Power Supply (560383)
Best For
Outdoor over-the-air TV antenna systems that need mast-mounted amplification across low-VHF, high-VHF, and UHF with automatic gain control and an included indoor power supply.
Why Choose the Televes 560383?
This Televes mast amplifier uses TForce/BOSS technology to automatically regulate VHF and UHF gain independently, helping maintain useful output levels as received signals vary. Its filtering rejects FM and cellular interference above the current U.S. TV band.
Key Benefits
- Single wideband TV input for compatible VHF, VHF/UHF, or UHF antennas
- Automatic gain control with independent VHF and UHF regulation
- Maximum gain: 31 dB UHF and 22 dB VHF
- Maximum output level: 47 dBmV UHF and 43 dBmV VHF
- FM and LTE/5G filtering
- High-screening cast-metal chassis
- Outdoor amplifier housing with metal and ABS construction
- DC-pass switch for powering a compatible active antenna or upstream preamplifier
- Included UL-listed power supply with two outputs
Who Should Buy the 560383?
OTA installers who need an automatically regulated mast preamplifier and have confirmed the antenna, signal levels, cabling, and power arrangement are compatible.

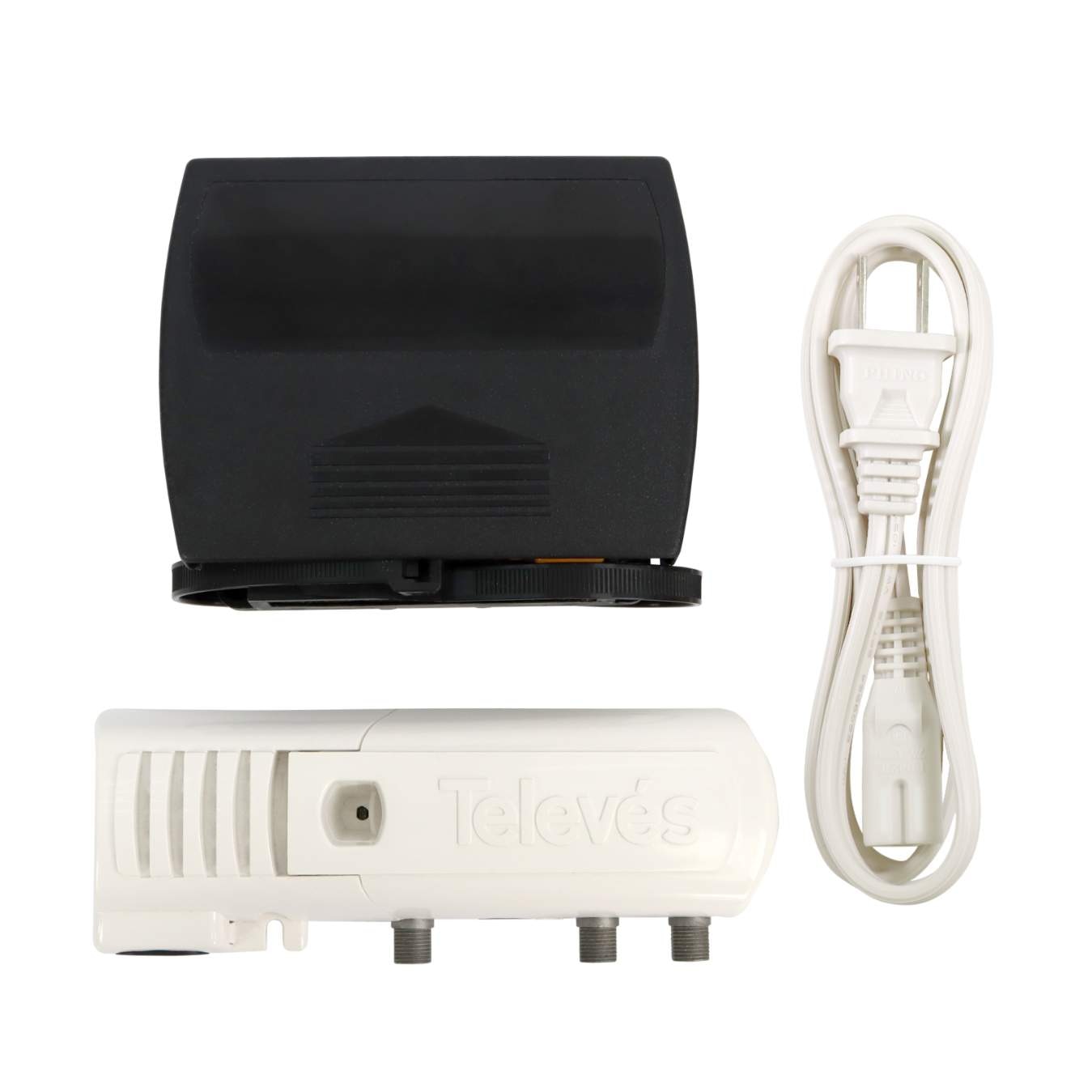

What's Included

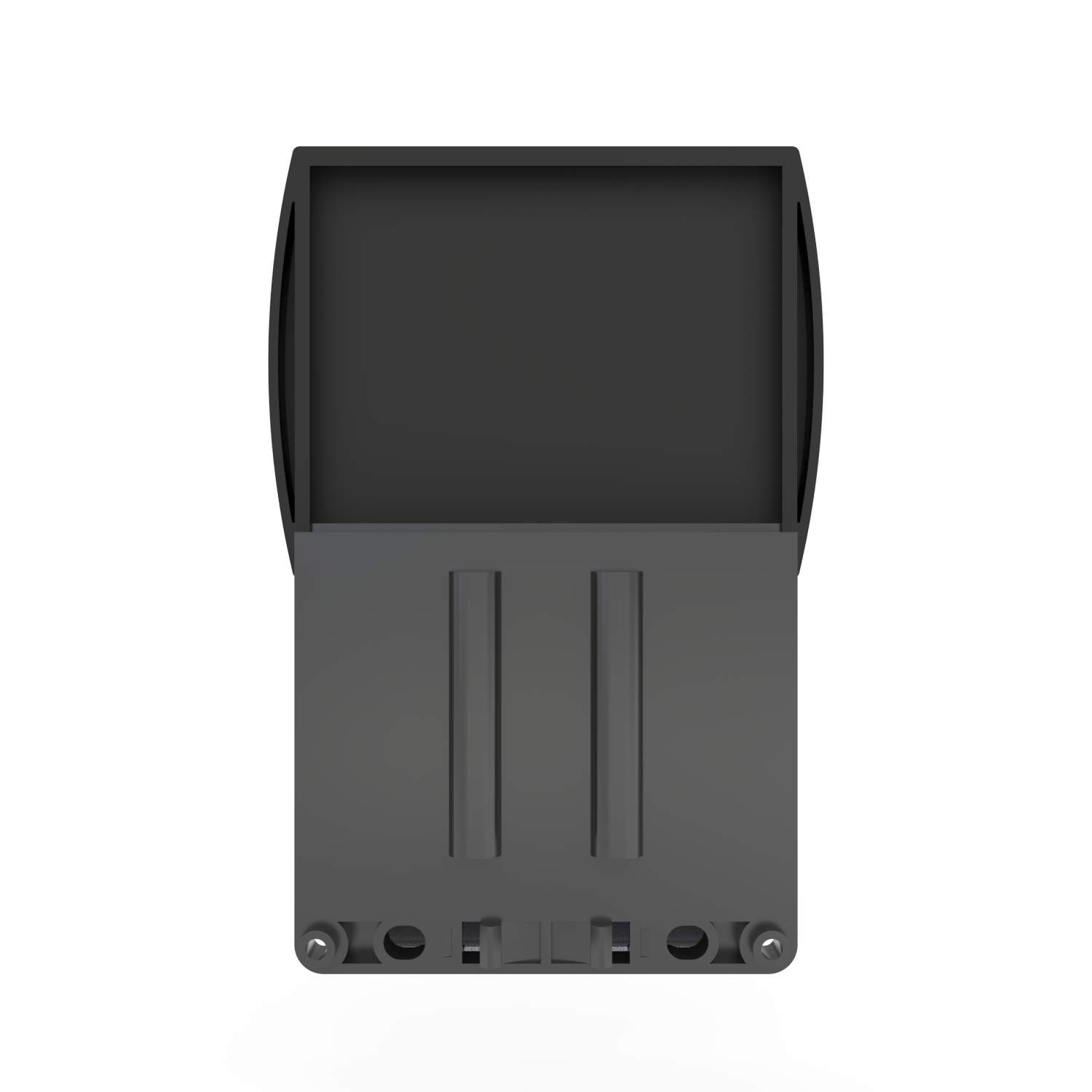

- Televes 560331 mast amplifier
- Televes 550104 power supply unit
Learn more:Visit the Solid Signal blog for Televes articles.
Specifications
Mast amplifier:
| Inputs/Bands | LowVHF/HighVHF/UHF | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 22 | 31 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
Mast amplifier:
| Inputs/Bands | LowVHF/HighVHF/UHF | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 22 | 31 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reviews
8 reviews
I would highly recommend this product.
by Mike
Amplifier arrived in 2 day's in good condition. I installed it two weeks ago, and my signal strenth lncreasd from 45 to 84 . My channel's increased from 23 to 41 . Very easy to install, very happy with product.
Televes Mast Amplifier
by Raymond R.
This is being used mounted indoors, hopefully to inprove the signal when high winds are present and degrade the signal. This is a senior housing unit where no outside antenna can be used. Solid Signal Allows a 30 day return, and some violent storms are predicted this upcoming week, so in a few days she will find out if this does the job.
SOLID-SIGNAL !!!
by J.D.
Excellent results, no more pixelating, picked up several out-of-the-way extra stations, Quality product…. Very happy with SOLID signals customer service.
Not worth the Money
by David Caughron
Not worth the money, cheap construction. Not fully weather proofed. Better off with a Channel Master 777u
Televes Mast Amplifier
by Walter
I was very pleased with the product and especially how quickly my order was processed. My item was received the next day via UPS and there was no shipping charge.
Great product
by Alan
Brought in a lot of channels
Televes Mast Amplifiers
by Greg
Solid Signal shipped very quickly. The Televes amplifiers are well built and seem to perform well. Not sure about the plastic case but, to be fair, our old Channel Master amps had no cover what so ever.
Televes Mast amplifier 560383
by Douglas
Overall the performance seems to be good. I was however disappointed with the coax connection area of the mast unit. The connectors I have (weatherproof) didn't fit perfectly when trying to close the clam-shell. I had to modify it with a dremel to allow it to close completely. Also, the electronics aren't mounted as securely as I had hoped. As I feared it would knock a round a bit in the wind I wrapped a bit of Velcro tape around it. Additionally I added a second zip tie to the upper half of the unit for added security on the mast; the one supplied was on the bottom. I don't think it the best location.
