Televes Mast amplifier with BOSS-Tech and “F” Power Supply Unit - 2 inputs (560483)
- Brand: Televes
- P\N: 560483
- UPC: 8424450214985
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Televes Mast Amplifier with BOSS-Tech and Power Supply Unit - 2 inputs (560483)
This mast-mounted preamplifier features two inputs covering the entire TV band, combine any two TV antennas (two VHF, two VHF/UHF, one VHF and one UHF, two UHF). Unique to Televes, the new T-Force preamplifier family features automatic gain control ensuring an optimum amount of signal is delivered at all times despite changes in the receiving conditions and avoiding over or under amplification situations. The automatic gain control is independent per band so that adjustments to the UHF channels do not impact VHF channels and vice-versa. It features high gain and powerful output level while the high screening cast metal chassis ensures best-in-class electromagnetic shielding protection. Cast metal and high-grade ABS plastic construction for reliable outdoor installation withstanding the harshest elements.
This particular unit is an entirely new design optimized for the new repack TV frequencies. Its fine tuned steep filters reject any out of band interference, including FM and 5G signals over 608 MHz.
A low-consumption UL-listed power supply is included providing two outputs for convenient distribution to additional TV sets. This Televes preamplifier can also pass power to an active antenna when needed.
Key Features:
- Repack Ready - Fine tuned filtering avoids 5G cellphone interference and allows compatibility with ATSC 3.0 broadcasting (NextGenTV)
- Automatic gain adjustment independent per band compensates fluctuations on the received signal ensuring the best output level is delivered
- Dual band amplification with independent automatic gain regulation per band
- Maximum gain: 27dB (UHF, channels 14-36), 18dB (high VHF, channels 7-13), 18dB (low VHF, channels 2-6)
- Low noise and high output level (47dBmV UHF, 43dBmV VHF)
- 5G and FM filtering eliminates cellphone and radio interference
- Cast metal and resistant ABS-plastic construction for reliable outdoor installation in the harshest conditions
- High-screening metal chassis provides optimal electromagnetic shielding
- ON/OFF switch to allow DC passing towards the input to power up active antennas or other preamplifiers
What's Included

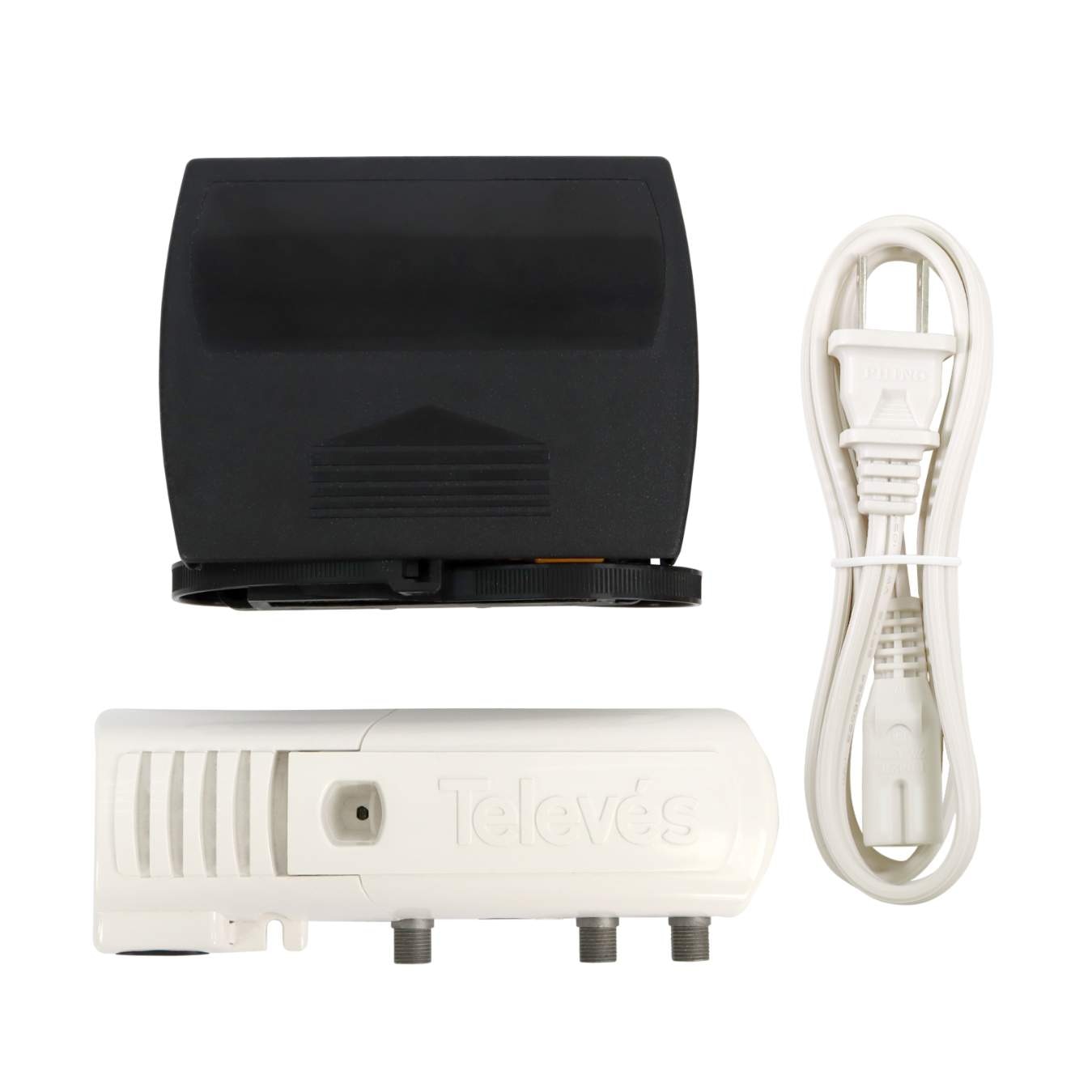

The package includes the Mast Amplifier part 560431 and Power Supply Unit 550104. Experience the difference in your TV reception with the Televes Mast Amplifier.
Don't miss out on the opportunity to enhance your TV viewing experience. Order the Televes Mast Amplifier with BOSS-Tech and “F" Power Supply Unit - 2 inputs today!
Features
- “F” connectors
- ON/OFF switch to allow DC pass towards the inputs for the powering of a BOSS system
- Input level manual regulation margin (0...20dB) for each input
- Easy mounting. Equipped with a plastic tie for mast mounting
- Resistant ABS-plastic black case for outdoor installation
Specifications
Mast amplifier:
Mast amplifier:
| Inputs/Bands | 2x (LowVHF/HighVHF/UHF) | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 18 | 27 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Input level regulation margin | dB | MANUAL 0 ... 20 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
| Inputs/Bands | 2x (LowVHF/HighVHF/UHF) | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 18 | 27 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Input level regulation margin | dB | MANUAL 0 ... 20 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
